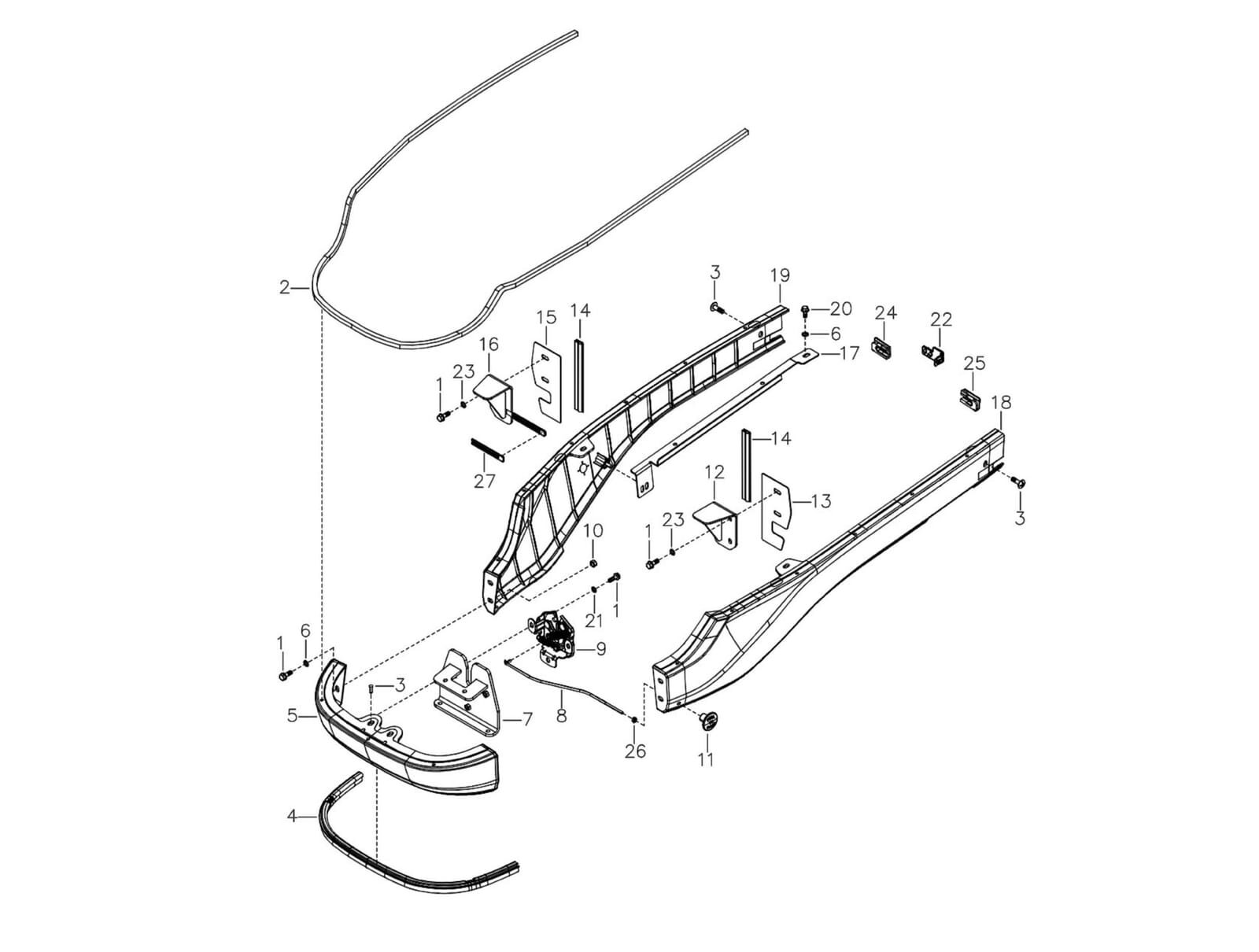

SM-3_BONNET ASSY.
Osaluettelo
| Nro | Osa | Hinta | Osta |
|---|---|---|---|
| 1 | HEX FLANGE SCREW M6*1*20 -8.8 SA4GS 20005541AA | 3,89 € | |
| 2 | BEADING FOR CLADDING 10057565AC | 27,90 € | |
| 3 | CROSS SLOTTED TRUSS HEAD SCREW M6X20 200000130A | 3,89 € | |
| 4 | BONNET BEEDING LOWER 300104152A | 19,95 € | |
| 4 | BONNET BEEDING LOWER 300246272A | 19,95 € | |
| 5 | CLADDING FRONT 10057467AG | 44,89 € | |
| 6 | WASHER A 6.4 IS:5370 STEEL (FOR EPA) 20005765AA | 3,89 € | |
| 7 | BONNET LOCK MTG BRKT ASSY 300076306B | Kysy saatavuus asiakaspalvelusta | |
| 7 | BONNET LOCK MTG BRKT ASSY 10057503AC | Kysy saatavuus asiakaspalvelusta | |
| 8 | LOCK ACTUATING ROD 300009627A | 3,89 € | |
| 8 | LOCK MOUNTING ROD EPA 300009628A | 3,89 € | |
| 9 | LOCK ASSY 10057527AA | 44,89 € | |
| 10 | HEX NYLOC NUT M6 8 20004915AB | 3,89 € | |
| 11 | KNOB FOR BONNET LOCK 300027891B | 3,89 € | |
| 12 | GROMET RESTING BRKT LH 10057555AA | 29,89 € | |
| 13 | FIXED SIDE SEALING PLATE LH 10057547AB | 3,89 € | |
| 14 | BEADING RADIATOR SIDE SEALING LOWER 10057567AB | 3,89 € | |
| 15 | FIXED SIDE SEALING PLATE RH 300027628A | 3,89 € | |
| 15 | SIDE SEALING PLATE 300133385A | 19,95 € | |
| 16 | GROMMET RESTING BKT ASSY RH 300133444A | 19,95 € | |
| 16 | GROMMET RESTING BRKT ASSY RH 10057556AA | 29,89 € | |
| 17 | HARNESS SUPPORT BKT 300131861C | 19,95 € | |
| 18 | SIDE CLADDING ASSY. LH 10057469AF | 64,90 € | |
| 19 | SIDE CLADDING ASSY. RH 10057470AF | 64,90 € | |
| 20 | HEX FLANGE SCREW M6*1*16 -8.8 SA4GS 20005542AA | 3,89 € | |
| 21 | PLAIN WASHER DIA 8.4 *DIA 17*1.6 20004935AB | 3,89 € | |
| 22 | CLADDING MTG BRKT LH 300007803C | 19,95 € | |
| 23 | SPRING WASHER B-6 TYPE A IS:3067-1972 20005516AA | 3,89 € | |
| 24 | CLADDING GROMMET RH 300035529A | 3,89 € | |
| 25 | CLADDING GROMMET LH 300035530A | 3,89 € | |
| 26 | HEX NUT M4-8 SA3NS 20003352AA | 2,49 € | |
| 27 | LOCK STRICKER PIN ASSY(HEXAVALENT OLIVE 10057499AC | Kysy saatavuus asiakaspalvelusta |
