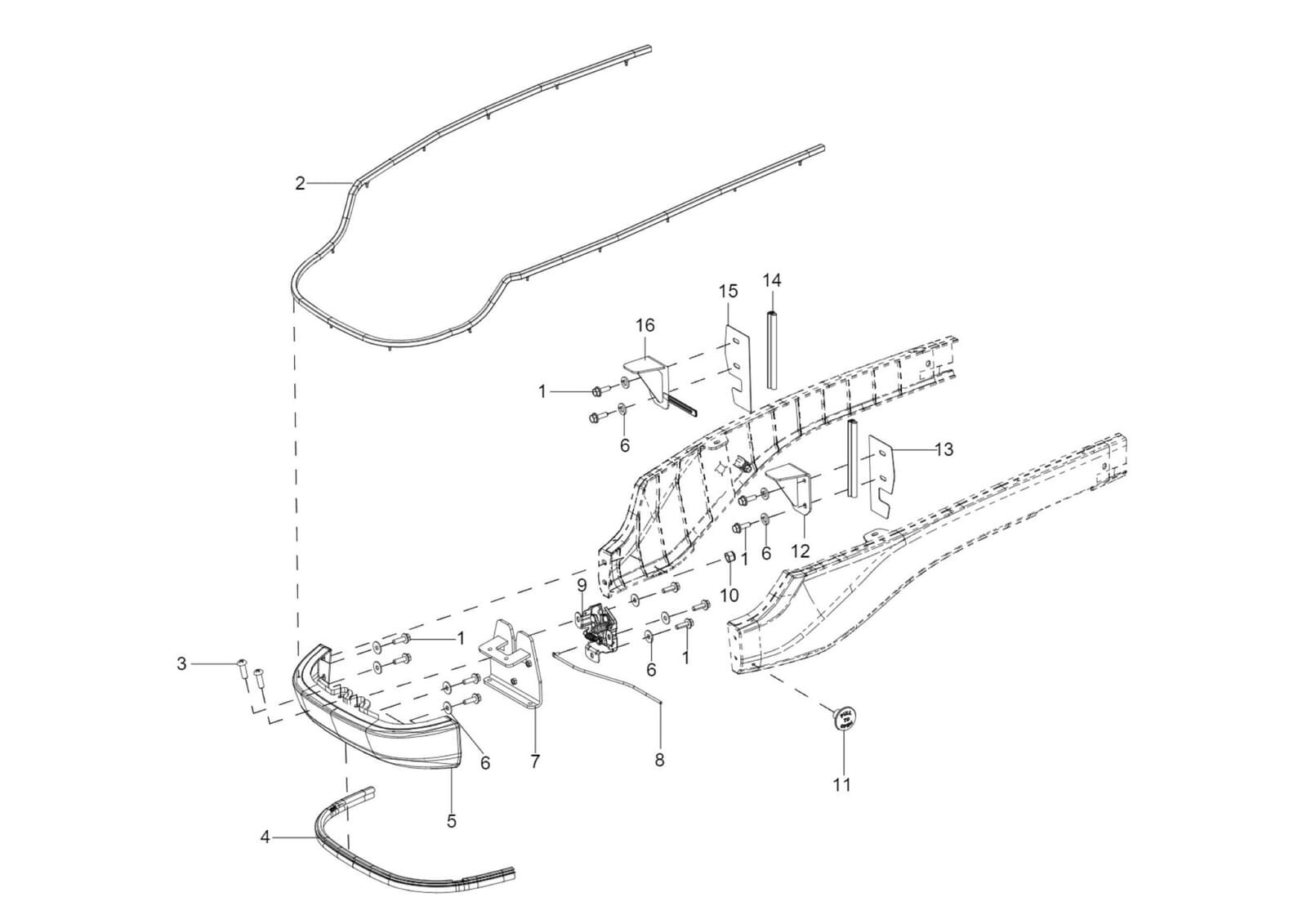

SM-1-3_BONNET ASSY.
Osaluettelo
| Nro | Osa | Hinta | Osta |
|---|---|---|---|
| 1 | HEX FLANGE SCREW M6*1*20 -8.8 SA4GS 20005541AA | 3,89 € | |
| 2 | BEADING FOR CLADDING 10057565AC | 27,90 € | |
| 3 | CROSS SLOTTED TRUSS HEAD SCREW M6X20 200000130A | 3,89 € | |
| 4 | BONNET BEEDING LOWER 300246272A | 19,95 € | |
| 5 | CLADDING FRONT 10057467AG | 44,89 € | |
| 6 | PLAIN WASHER DIA 6.4 *DIA 18 *1.5 4030600006 | 2,90 € | |
| 6 | WASHER A 6.4 IS:5370 STEEL (FOR EPA) 20005765AA | 3,89 € | |
| 7 | BONNET LOCK MTG BRKT ASSY 300076306B | Kysy saatavuus asiakaspalvelusta | |
| 8 | LOCK ACTUATING ROD 300009627A | 3,89 € | |
| 9 | LOCK ASSY 10057527AA | 44,89 € | |
| 10 | HEX NYLOC NUT M6 8 20004915AB | 3,89 € | |
| 11 | KNOB FOR BONNET LOCK 300027891B | 3,89 € | |
| 12 | GROMET RESTING BRKT LH 10057555AA | 29,89 € | |
| 13 | FIXED SIDE SEALING PLATE LH 10057547AB | 3,89 € | |
| 14 | BEADING RADIATOR SIDE SEALING LOWER 10057567AB | 3,89 € | |
| 14 | BEADING RADIATOR SIDE SEALING UPPER 10086022AC | 3,89 € | |
| 15 | HARNESS GUIDE FRONT 300131849C | 19,95 € | |
| 15 | FIXED SIDE SEALING PLATE RH 300027628A | 3,89 € | |
| 16 | GROMMET RESTING BKT ASSY RH 300133444A | 19,95 € |
