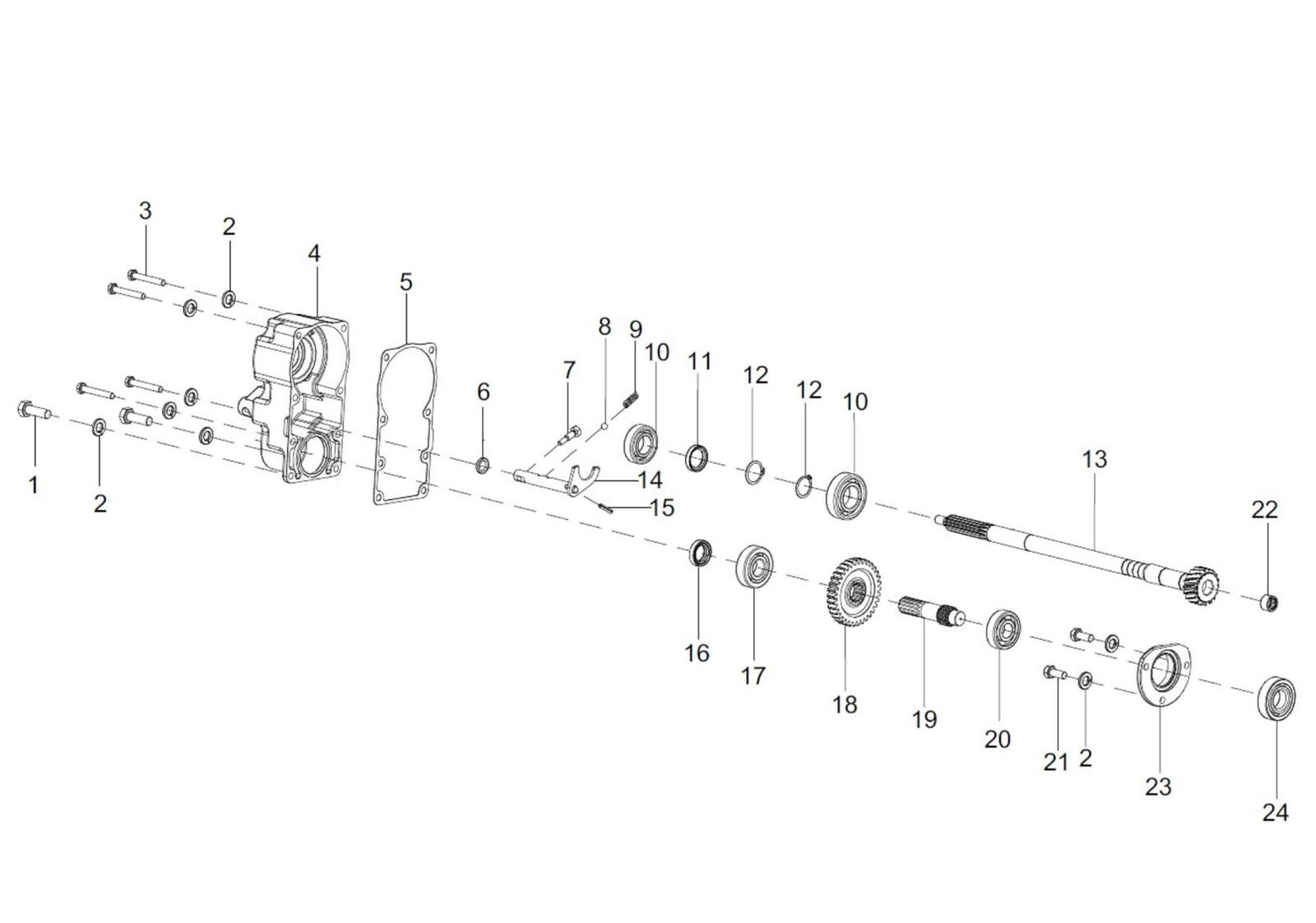

TM-3_INPUT SHAFT & 4WD SHAFT ASSY. WITH FRONT COVER HSG
Osaluettelo
| Nro | Osa | Hinta | Osta |
|---|---|---|---|
| 1 | HEX HEAD SCREW M8X1.25-25 -8.8 SA4GS 20005564AA | 3,89 € | |
| 2 | SPRING WASHER B-8 TYPE A IS:3067-1972 20005517AA | 3,89 € | |
| 3 | HEX HEAD BOLT M8X1.25X55 20004136AA | Kysy saatavuus asiakaspalvelusta | |
| 4 | BEARING HOUSING FRONT 10050746AJ | 159,00 € | |
| 5 | GASKET FOR BEARING HOUSING FRONT 10051200AB | 3,89 € | |
| 5 | GASKET ( BEARING HSG FRONT) 10054280AA | 3,89 € | |
| 5 | GASKET ( BEARING HSG FRONT) 10054280AB | 3,89 € | |
| 6 | OIL SEAL (SHIFTER HOUSING) 10020828AB | 29,89 € | |
| 7 | SHIFTER PIN FOR 4WD GEAR 10052380AB | 3,89 € | |
| 8 | BALL 8 DIA GRADE 20 IS:2898 10020864AB | 3,89 € | |
| 9 | SPRING (FOR 4WD) 10053731AA | Kysy saatavuus asiakaspalvelusta | |
| 10 | BALL BRG (6205) 20004119AB | 34,89 € | |
| 11 | OIL SEAL 35*25*7 4070225035 | Kysy saatavuus asiakaspalvelusta | |
| 11 | OIL SEAL 35*25*7 20005056AA | 3,89 € | |
| 12 | EXTERNAL CIRCLIP A - 25 20004134AA | 3,89 € | |
| 13 | INPUT SHAFT Z15 L504 10053707AA | Kysy saatavuus asiakaspalvelusta | |
| 14 | FORK ASSY 4WD 10050812AK | 34,89 € | |
| 14 | FORK ASSY 4WD 10050812AL | Kysy saatavuus asiakaspalvelusta | |
| 15 | COTTER SLEEVE Ø5*26(DIN:7346)LIGHT 20004313AA | 3,89 € | |
| 16 | OIL SEAL 4D035022 20004156AB | 3,89 € | |
| 17 | BALL BRG 63/22 20004122AB | 34,89 € | |
| 18 | FIXED GEAR Z-34 FOR 4WD 10050684AC | 59,89 € | |
| 19 | SHAFT FOR 4WD 10050683AD | 59,89 € | |
| 20 | BEARING 6304 20003477AB | 34,89 € | |
| 21 | HEX HEAD SCREW M8X1.25X20 -8.8 SA4GS 20005565AA | 3,89 € | |
| 22 | NEEDLE BEARING JL - 108 20005052AA | 29,89 € | |
| 23 | BEARING HOUSING 10050685AE | 34,89 € | |
| 24 | BALL BEARING LS10 20004368AC | 44,89 € |
