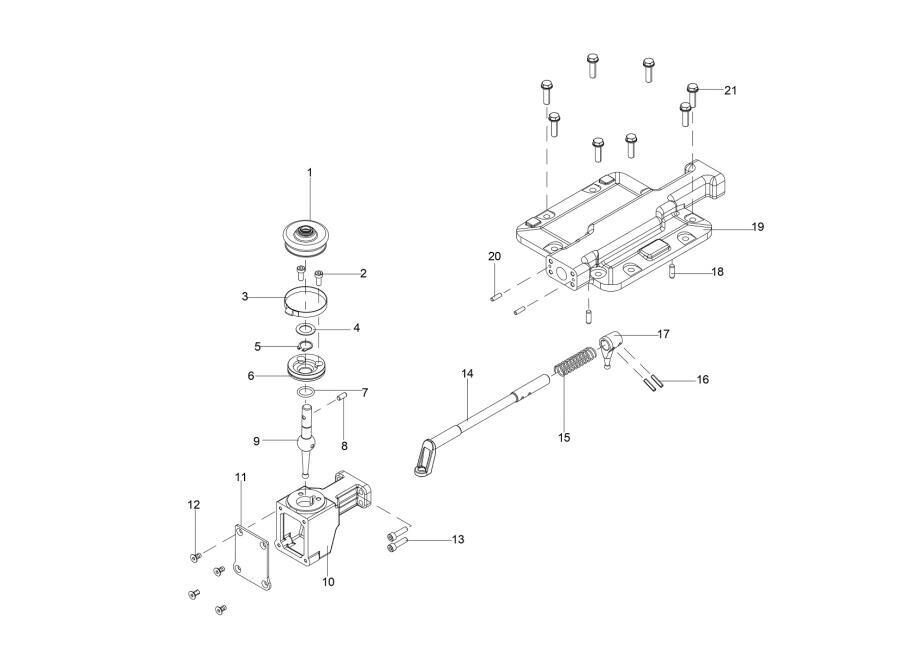

BC-10_SHIFTER HOUSING SUB ASSY
Osaluettelo
| Nro | Osa | Hinta | Osta |
|---|---|---|---|
| 1 | RUBBER BOOT FOR LEVER HOUSING 10040686AB | 3,89 € | |
| 2 | SOCKET HEAD SCREW M8X1.25 SA4GS 300003122A | 3,89 € | |
| 3 | HOSE WORM CLAMP DIA 68 IS-4762 20004004AB | 3,89 € | |
| 4 | SHIM LEVER HOUSING 10065179AC | 3,89 € | |
| 5 | CIRCLIP (16 X0.4 N IS:3075 PART 1) 4020200016 | 19,95 € | |
| 6 | COVER SHIFTER HOUSING 10069728BA | 34,89 € | |
| 7 | O-RING Ø22XØ3.5 10065742AB | 3,89 € | |
| 8 | DOWEL PIN Ø6X14 10065744AC | 3,89 € | |
| 9 | LEVER SMALL 10065421AD | 44,89 € | |
| 10 | HOUSING FOR LEVER 10040681AB | 79,89 € | |
| 11 | SIDE PLATE SHIFTER HOUSING 10069730AB | 29,89 € | |
| 12 | SOCKET HEAD CAP SCREW M8*30,8-8, SA4GS 300065528A | 3,89 € | |
| 13 | HEX FLANGE SCREW M10X1.5X35 300044863A | 3,89 € | |
| 14 | SHIFTER ROD (RANGE SIDE) 10040684AB | 64,90 € | |
| 15 | SPRING FOR LEVER HOUSING RODS 10065180AC | 3,89 € | |
| 16 | SPRING COTTER SLEEVE Ø6X25 H.D DIN 1481 20004149AB | 3,89 € | |
| 17 | SHIFTER PIN 10065182AC | 34,89 € | |
| 18 | DOWEL PIN FOR SHIFTER HOUSING DIA8*25 (IS:2393) 20003875AB | 3,89 € | |
| 19 | SHIFTER HOUSING 10069723AB | 248,99 € | |
| 20 | CYLINDRICAL PIN DIA 5X16 4010205016 | 19,95 € |
