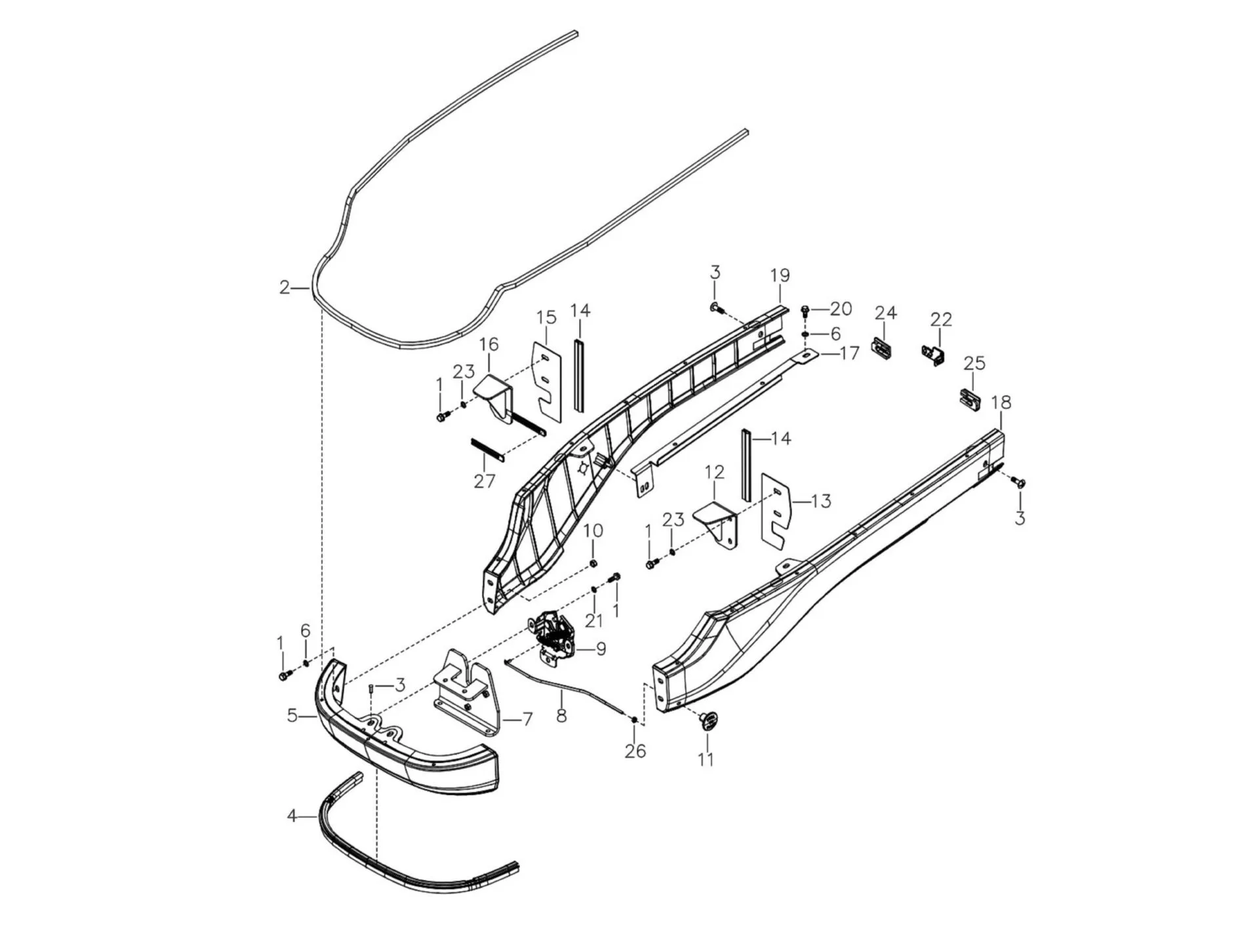

SM-3_BONNET ASSY.
S20- WITH MHI ENGINE (6+2)-15140A-3-3
1
HEX FLANGE SCREW M6*1*20 -8.8 SA4GS
20005541AA | 2.49 € /kpl
2
BEADING FOR CLADDING
10057565AC | 27.90 € /kpl
3
CROSS SLOTTED TRUSS HEAD SCREW M6X20
200000130A | 2.49 € /kpl
4
BONNET BEEDING LOWER
300104152A | 19.95 € /kpl
5
CLADDING FRONT
10057467AG | 27.90 € /kpl
6
WASHER A 6.4 IS:5370 STEEL (FOR EPA)
20005765AA | 2.90 € /kpl
7
BONNET LOCK MTG BRKT ASSY
300076306B
7
BONNET LOCK MTG BRKT ASSY
10057503AC
8
LOCK ACTUATING ROD
300009627A | 19.95 € /kpl
9
LOCK ASSY
10057527AA | 27.90 € /kpl
10
HEX NYLOC NUT M6 8
20004915AB | 2.49 € /kpl
11
KNOB FOR BONNET LOCK
300027891B | 19.95 € /kpl
12
GROMET RESTING BRKT LH
10057555AA | 19.95 € /kpl
13
FIXED SIDE SEALING PLATE LH
10057547AB | 19.95 € /kpl
14
BEADING RADIATOR SIDE SEALING LOWER
10057567AB | 19.95 € /kpl
15
FIXED SIDE SEALING PLATE RH
300027628A | 19.95 € /kpl
15
SIDE SEALING PLATE
300133385A | 19.95 € /kpl
16
GROMMET RESTING BKT ASSY RH
300133444A | 19.95 € /kpl
16
GROMMET RESTING BRKT ASSY RH
10057556AA | 19.95 € /kpl
17
HARNESS SUPPORT BKT
300131861C | 19.95 € /kpl
18
SIDE CLADDING ASSY. LH
10057469AF | 29.90 € /kpl
19
SIDE CLADDING ASSY. RH
10057470AF | 44.90 € /kpl
20
HEX FLANGE SCREW M6*1*16 -8.8 SA4GS
20005542AA | 2.49 € /kpl
21
PLAIN WASHER DIA 8.4 *DIA 17*1.6
20004935AB | 2.90 € /kpl
22
CLADDING MTG BRKT LH
300007803C | 19.95 € /kpl
23
SPRING WASHER B-6 TYPE A IS:3067-1972
20005516AA | 2.90 € /kpl
24
CLADDING GROMMET RH
300035529A | 19.95 € /kpl
25
CLADDING GROMMET LH
300035530A | 19.95 € /kpl
26
HEX NUT M4-8 SA3NS
20003352AA | 2.49 € /kpl
27
LOCK STRICKER PIN ASSY(HEXAVALENT OLIVE
10057499AC
