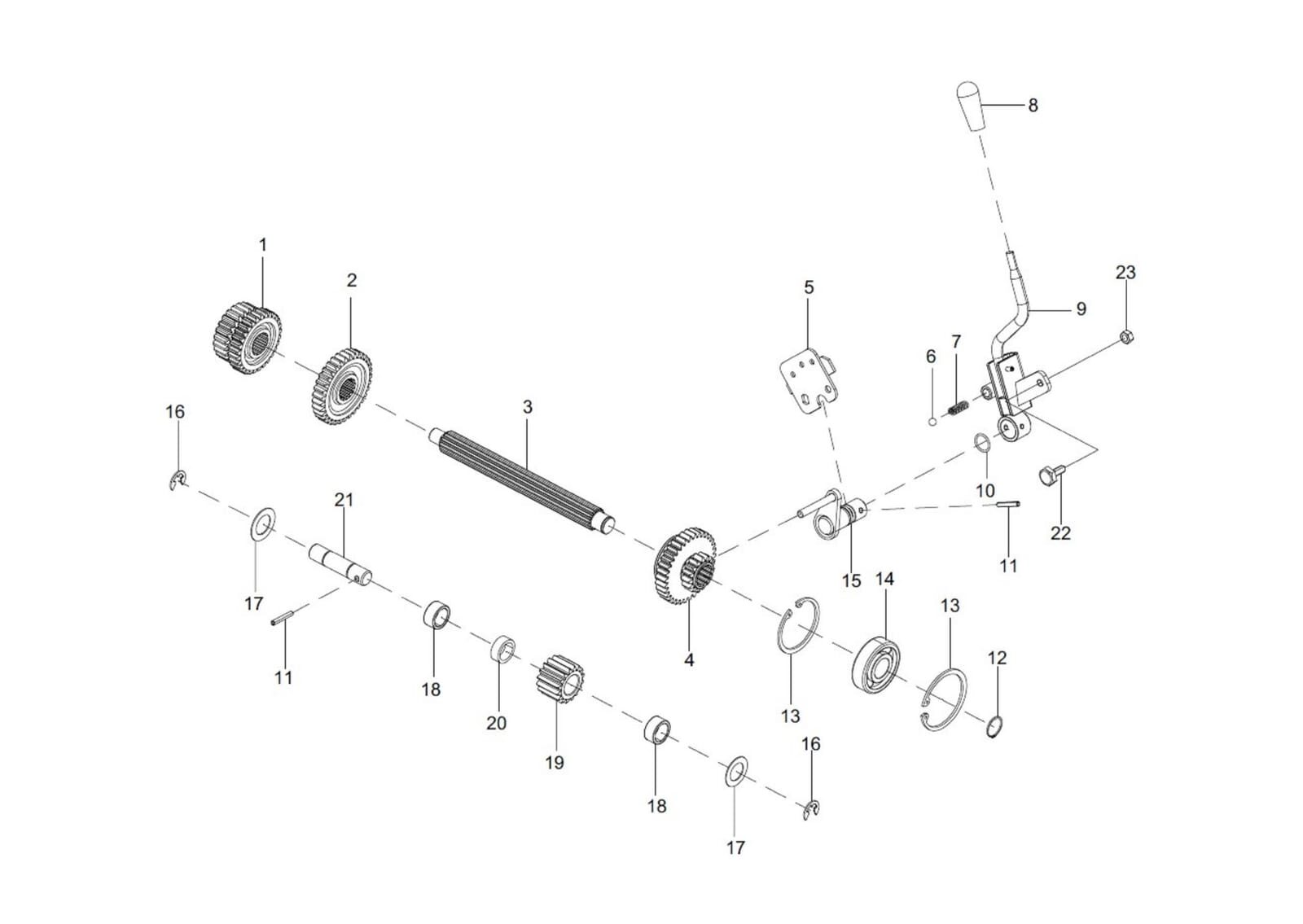

TM-4_INTERMEDIATE SHAFT & IDLER ASSY
Osaluettelo
| Nro | Osa | Hinta | Osta |
|---|---|---|---|
| 1 | SLIDING GEAR 2ND & 3RD Z-29/Z-24 (FINISH 10057078AA | 79,89 € | |
| 2 | SLIDING GEAR Z-33 (1ST / REV) 10050697AC | 64,90 € | |
| 3 | INTERMEDIATE SHAFT 10050695AB | 64,90 € | |
| 4 | SLIDING GEAR HI-LOW Z-34/Z-15 (FINISH) 10056735AB | 99,99 € | |
| 5 | MTG. BKT. FOR ACTUATOR LINK 10053397AF | 34,89 € | |
| 5 | LOCKING PLATE 300283873A | Kysy saatavuus asiakaspalvelusta | |
| 6 | BALL 8 DIA GRADE 20 IS:2898 10020864AB | 3,89 € | |
| 7 | SPRING (FOR 4WD) 10053731AA | Kysy saatavuus asiakaspalvelusta | |
| 8 | KNOB (ROD ASSY / HANDLER PTO) 10004846AB | 3,89 € | |
| 8 | KNOB (ROD ASSY / HANDLER PTO) 300007872B | 3,89 € | |
| 9 | LEVER ASSY HI-LOW 300009605C | 34,89 € | |
| 10 | O-RING Ø18 X Ø2.0 20004142AD | 3,89 € | |
| 11 | SPRING COTTER SLEEVE(DIA 5X32) 20004146AA | 3,89 € | |
| 12 | EXTERNAL CIRCLIP A-20 4020200020 | 19,95 € | |
| 13 | INTERNAL CIRCLIP B-52 20004113AA | 3,89 € | |
| 14 | BEARING 6304 20003477AB | 34,89 € | |
| 15 | PIN ASSY HI / LO 10050714AF | 34,89 € | |
| 16 | EXTERNAL CIRCLIP E-15 20004151AA | 3,89 € | |
| 17 | WASHER (IDLER SHAFT) 10050807AB | 3,89 € | |
| 18 | NEEDLE CAGE BEARING (24X18X12) 20004147AB | 29,89 € | |
| 19 | IDLER GEAR Z-16 10050731AD | 59,89 € | |
| 20 | SPACER (IDLER GEAR) 10051484AA | 3,89 € | |
| 21 | IDLER SHAFT 10050802AB | 29,89 € | |
| 22 | SWITCH ACTUATING PIN 300034077B | 3,89 € | |
| 23 | HEX NUT M8X1.25 -8 SA4GS 20005504AA | 3,89 € |
