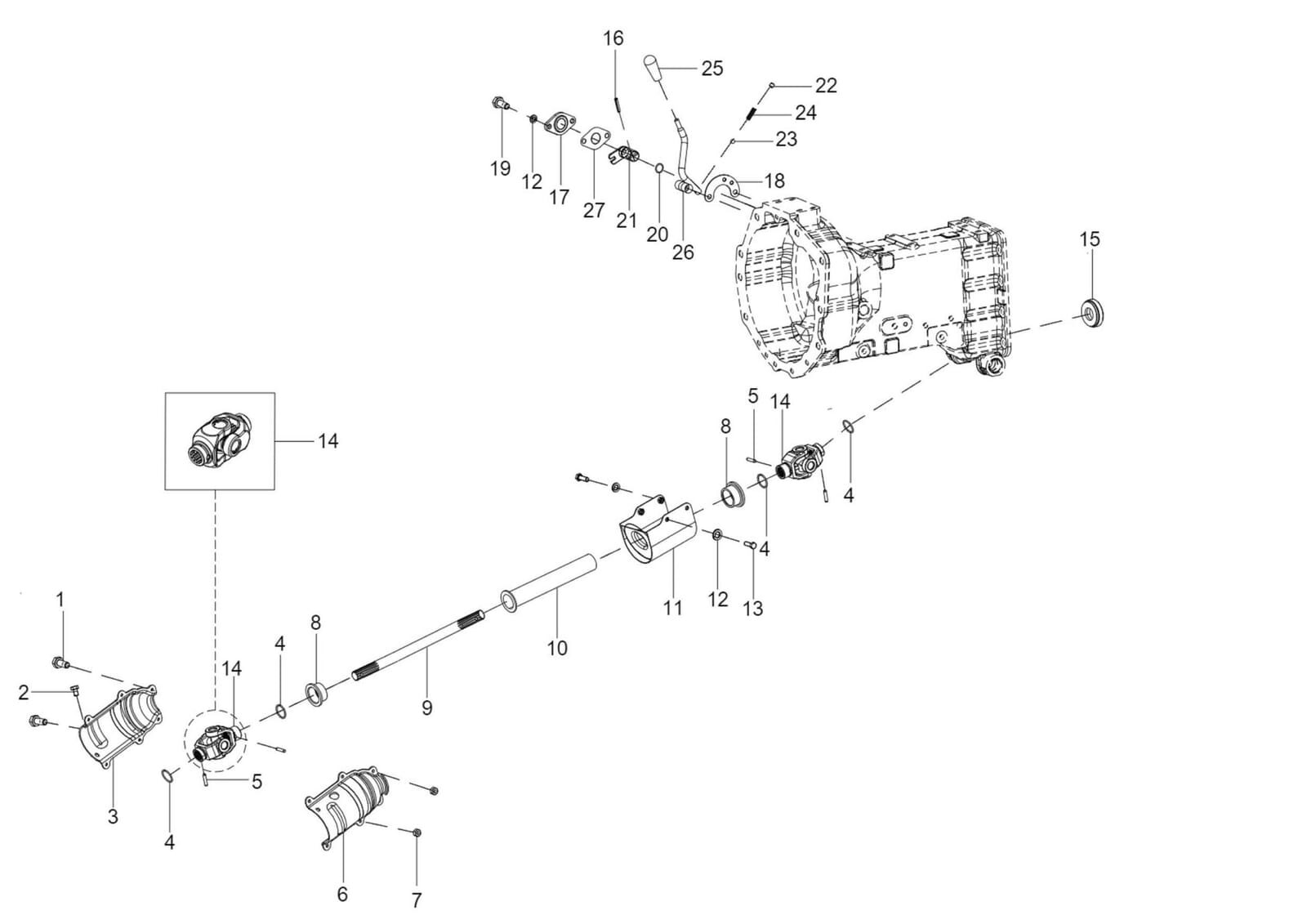

TM-1_CLUTCH HOUSING & UNIVERSAL JOINT
Osaluettelo
| Nro | Osa | Hinta | Osta |
|---|---|---|---|
| 1 | HEX HEAD SCREW M6X1X14 8.8 SA4GS 20005496AA | 3,89 € | |
| 2 | HEX SCREW M6X10 8.8 SA2JS 20005573AA | 3,89 € | |
| 3 | UNIVERSAL JOINT COVER (LOWER) 10050752AD | 34,89 € | |
| 4 | SNAP RING FOR SHAFT DIA 32 ( DIN 7993) 20004355AD | 3,89 € | |
| 5 | DOWEL PIN (6X28) FOR UNIVERSAL JOINT & FRONT PTO 10052452AA | 3,89 € | |
| 6 | UNIVERSAL JOINT COVER(UPPER) 10050751AC | 44,89 € | |
| 7 | HEX NUT M6 -8 SA4GS 20005491AA | 3,89 € | |
| 8 | RUBBER SEAL 10050688AC | 3,89 € | |
| 9 | FRONT PTO SHAFT 10050686AE | 64,90 € | |
| 10 | PTO GUARD 10050687AC | 34,89 € | |
| 11 | UNIVERSAL JOINT COVER (REAR) 10054025AA | 19,95 € | |
| 12 | SPRING WASHER B-8 TYPE A IS:3067-1972 20005517AA | 3,89 € | |
| 13 | HEX SCREW M8X1.25X30 -8.8 SA4GS 20005563AA | 3,89 € | |
| 14 | UNIVERSAL JOINT ASSY. 10051224AF | 159,00 € | |
| 15 | RUBBER BOOT FOR CLUTCH HSG. 10051888AA | Kysy saatavuus asiakaspalvelusta | |
| 15 | RUBBER BOOT FOR CLUTCH HSG. 10051888AB | 3,89 € | |
| 16 | COTTER SLEEVE Ø5*26(DIN:7346)LIGHT 20004313AA | 3,89 € | |
| 17 | BRACKET 10050809AB | 34,89 € | |
| 18 | LOCK PLATE 300022307B | 3,89 € | |
| 19 | HEX HEAD SCREW M8X1.25X20 -8.8 SA4GS 20005565AA | 3,89 € | |
| 20 | O-RING Ø18 X Ø2.0 20004142AD | 3,89 € | |
| 21 | ACTUATING LUG ASSY. 10050808AF | Kysy saatavuus asiakaspalvelusta | |
| 21 | ACTUATING LUG ASSY. 10050808AG | 34,89 € | |
| 22 | SLOTTED GRUB SCREW A-M8X8 903401013A | 3,89 € | |
| 23 | BALL 8 DIA GRADE 20 IS:2898 10020864AB | 3,89 € | |
| 24 | SPRING (FOR 4WD) 10053731AA | Kysy saatavuus asiakaspalvelusta | |
| 25 | KNOB (ROD ASSY / HANDLER PTO) 10004846AF | Kysy saatavuus asiakaspalvelusta | |
| 25 | KNOB (ROD ASSY / HANDLER PTO) 300007872A | 3,89 € | |
| 26 | LEVER 4WD 300146369A | 19,95 € | |
| 27 | GASKET (STRAINER COVER) 10052530AA | 3,89 € | |
| 28 | STOPPER FOR C.A. SHAFT 10052908AB | 3,89 € |
