SM-8_ROPS ASSY

Malli: Solis 22 4wd Osaryhmä: Sheet metal & operator area

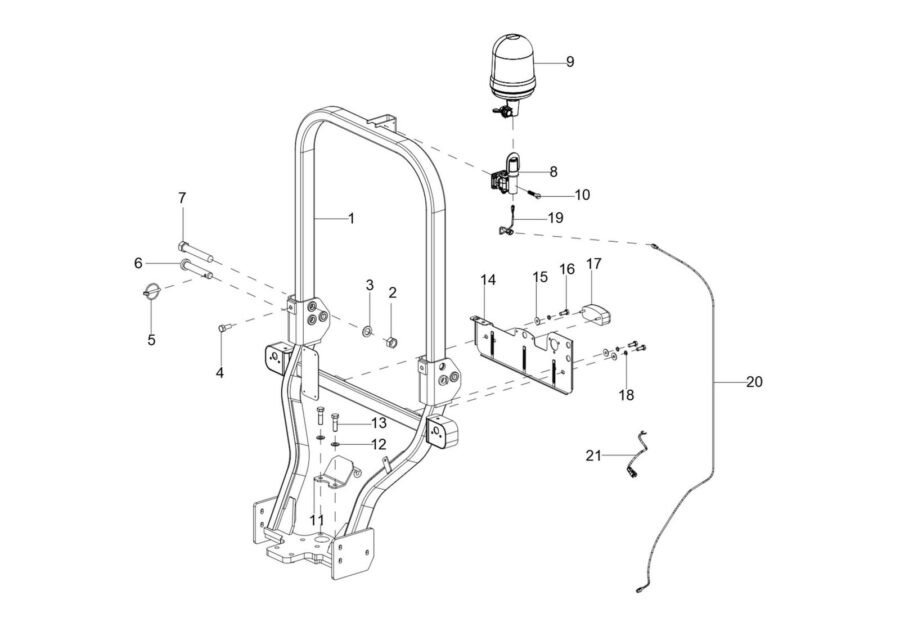

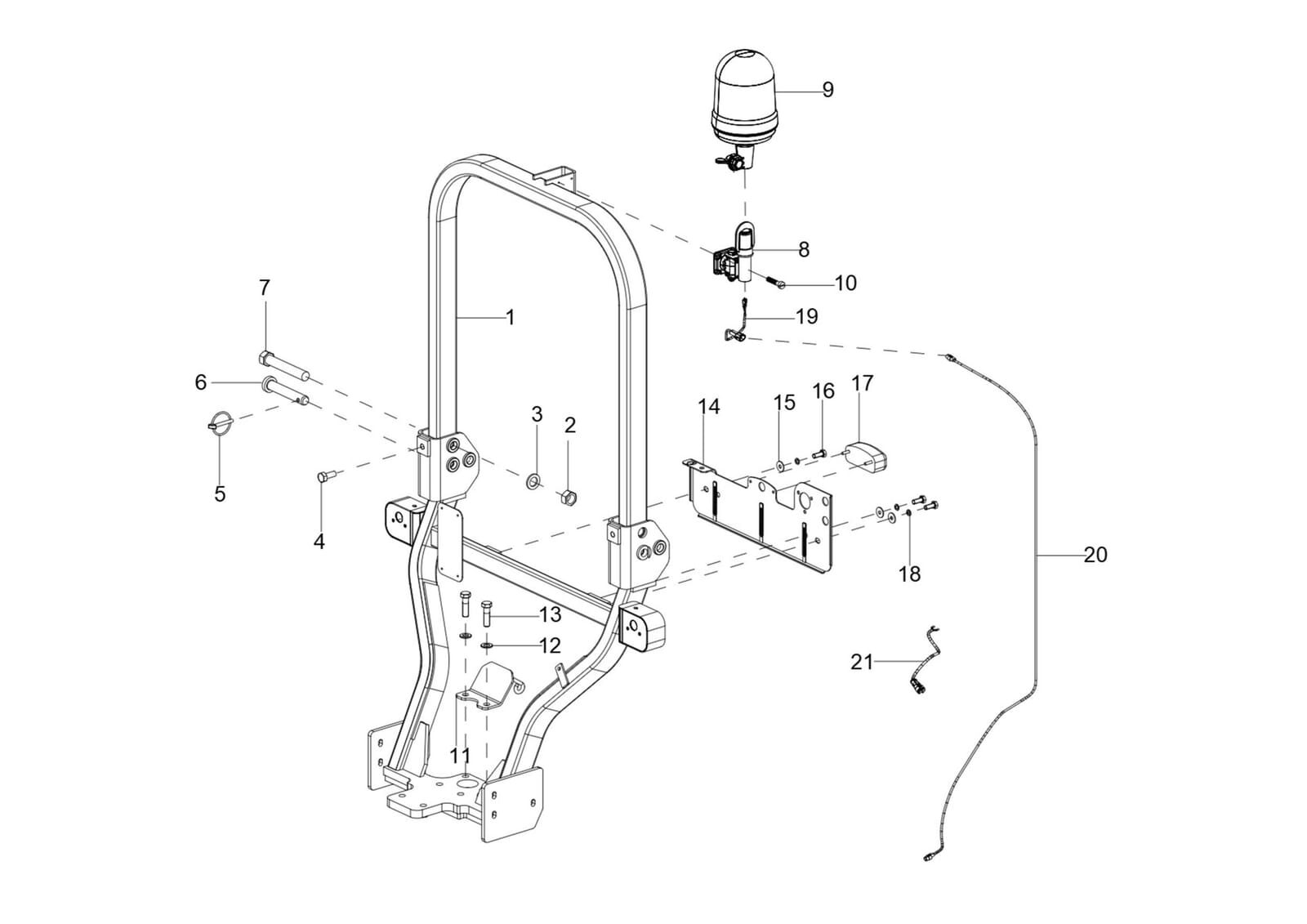

SM-8_ROPS ASSY Avaa kuva suurempana

Osaluettelo

Nro Osa Hinta Osta
1 ROLL OVER PROTECTION STRUCTURE ASSY 10053716CB 649,00 €
1 ROPS (SOLIS-26 HP) 300006931A 549,00 €
2 HEX NUT M18X2.5 - SA4GS 20005506AA 3,89 €
3 NYLON WASHER 10087869AA 3,89 €
3 PUNCHED WASHER A(20) IS:2016 STEEL 20005679AA 3,89 €
4 HEX BOLT M10*1.5*40 8-8 SA3NS 20003230AA 3,89 €
5 LINCH PIN ASSY.(Ø7) 10087923AA 3,89 €
6 PIN ROCKER 10086416AB 29,89 €
6 PIN ROCKER 10007841AC 29,89 €
6 PIN FOR TOP LINK 10057679AA 34,89 €
7 HEX BOLT M18*2.5*110 -10.9 SA4GS 20005545AA 29,89 €
8 MOUNTING BRACKET( DETACHABLE REVOLVING LIGHT) 10054277AA 198,99 €
9 REVOLVING LIGHT (DETACHABLE) 10054276AA 288,99 €
10 SLOTTED CHEASE HEAD SCREW M4*20 20005684AA 3,89 €
11 TOP LINK HOLDING BKT 10056463AA 34,89 €
12 SPRING WASHER B-14 TYPE A IS:3067-1972 20005520AA 3,89 €
13 HEX SCREW M14*30 20003246AB 3,89 €
14 REGISTRATION PLATE BLACK PAINT 10053713AE Kysy saatavuus asiakaspalvelusta
15 M/CD WASHER 10.5*21*2 20005625AA 3,89 €
16 HEX HEAD SCREW M10X40-Z 8.8 SA4GS 20005584AA 3,89 €
16 HEX. SCREW M10 X 40 20002017AC 2,49 €
16 HEX SCREW M10*35 20003238AB 2,49 €
17 LIGHT FOR REGISTRATION PLATE 10067783AB 34,89 €
18 SPRING WASHER B-10 TYPE A IS:3067-1972 20005518AA 3,89 €
19 REVOLVING LIGHT HARNESS 300009603A 29,89 €
20 ROPS HARNESS 300009691A 19,95 €
21 PIGTAIL HARNESS 300034907B 44,89 €
21 REGISTERATION LIGHT HARNESS (PIG TAIL) 10056568AA 3,89 €
