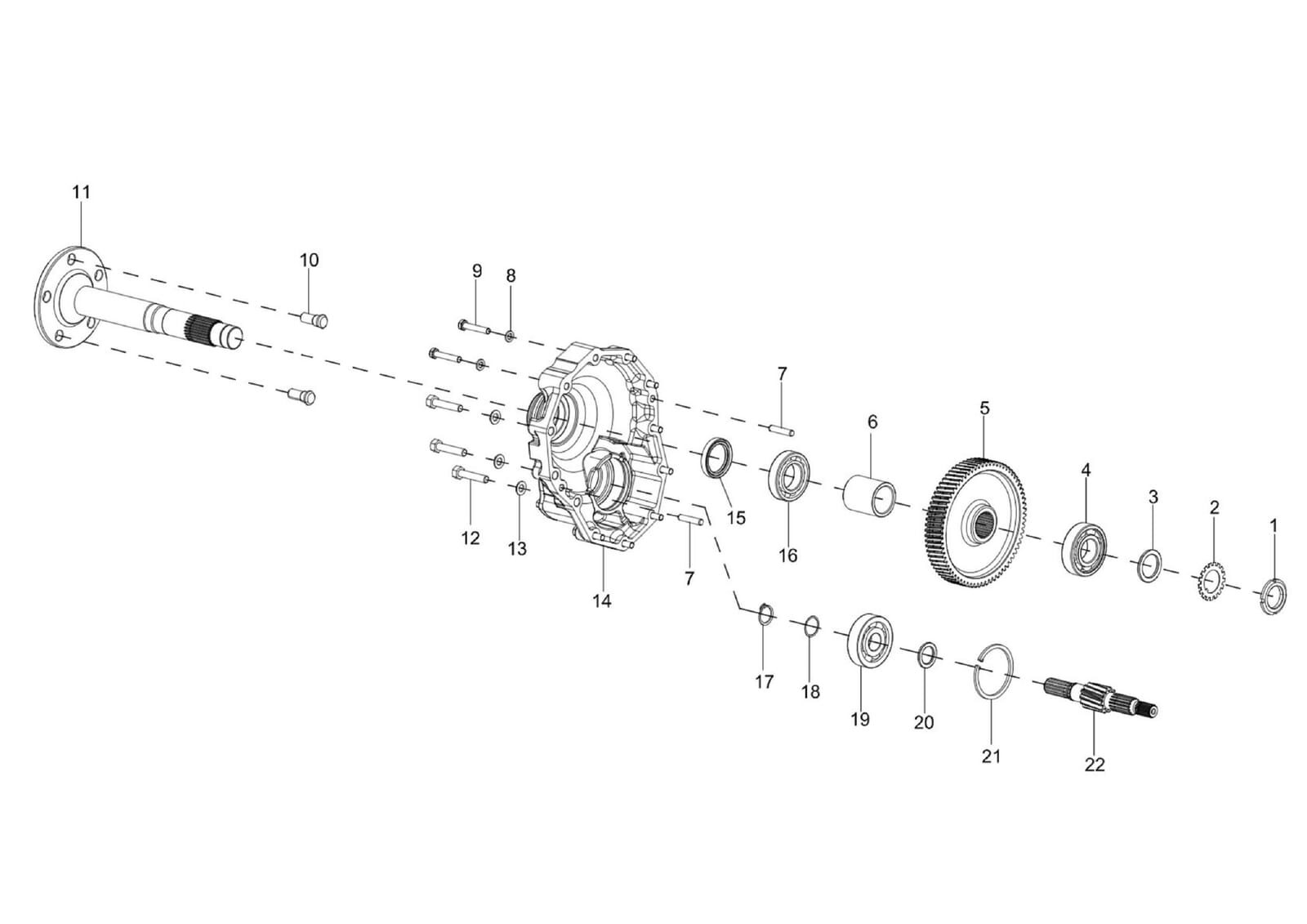

RA-1_TRUMPET HSG SUB ASSY
Osaluettelo
| Nro | Osa | Hinta | Osta |
|---|---|---|---|
| 1 | WITHDRAWL NUT M39X1.5 10096268AA | 29,89 € | |
| 2 | LOCKING WASHER 39.5 10096267AA | 3,89 € | |
| 3 | SPACER SMALL REAR AXLE 10096266AB | 29,89 € | |
| 4 | BALL BEARING 6308NR 20003880AA | 59,89 € | |
| 5 | BULL GEAR LEFT 300003627B | 269,00 € | |
| 5 | BULL GEAR RIGHT 300003632B | 199,00 € | |
| 6 | SPACER LONG REAR AXLE 10096260CA | 44,89 € | |
| 7 | DOWEL 10X65 300178946A | 3,89 € | |
| 7 | DOWEL PIN DIA 10X20 10055668AA | 19,95 € | |
| 8 | SPRING WASHER B-10 TYPE A IS:3067-1972 20005518AA | 3,89 € | |
| 9 | HEX BOLT M10X1.5X55 10.9 SA3NS 20003997AC | 3,89 € | |
| 10 | WHEEL BOLT FRONT 20005630AA | 3,89 € | |
| 11 | REAR AXLE SHAFT 300083794A | 248,99 € | |
| 12 | HEX BOLT M12X1.75X90 8-5 SA4GS 200000755A | 3,89 € | |
| 12 | HEX BOLT M12x1.75x90 10.9 SA4GS 200003044A | Kysy saatavuus asiakaspalvelusta | |
| 13 | SPRING WASHER B-12TYPE-A IS:3063-1972 20004993AB | 3,89 € | |
| 14 | REAR AXLE HSG LH 300187200B | 288,99 € | |
| 14 | REAR AXLE HSG (RH) 300187201B | 288,99 € | |
| 15 | OIL SEAL (F4D 48X65X10) 20003306AC | 34,89 € | |
| 16 | BALL BEARING 6209 20005055AA | 44,89 € | |
| 17 | CIRCLIP A-30 HEAVY DUTY (FOR LAY SHAFT) 20003856AA | 3,89 € | |
| 18 | SHIM BP SHAFT 0.1 10096382AA | 3,89 € | |
| 18 | SHIM BP SHAFT 0.2 10096383AA | 3,89 € | |
| 18 | SHIM BP SHAFT 0.5 10096384AA | 3,89 € | |
| 19 | BALL BEARING 6406 200000537A | 44,90 € | |
| 20 | SPACER FOR BP SHAFT 10096024CA | 19,95 € | |
| 21 | INTERNAL CIRCLIP B-90 (IS-3075-2) HEAVY 200000558A | 19,95 € | |
| 22 | B.P.SHAFT LEFT 10096221BB | 84,90 € | |
| 22 | B.P.SHAFT RIGHT 10096227BB | 89,00 € |
