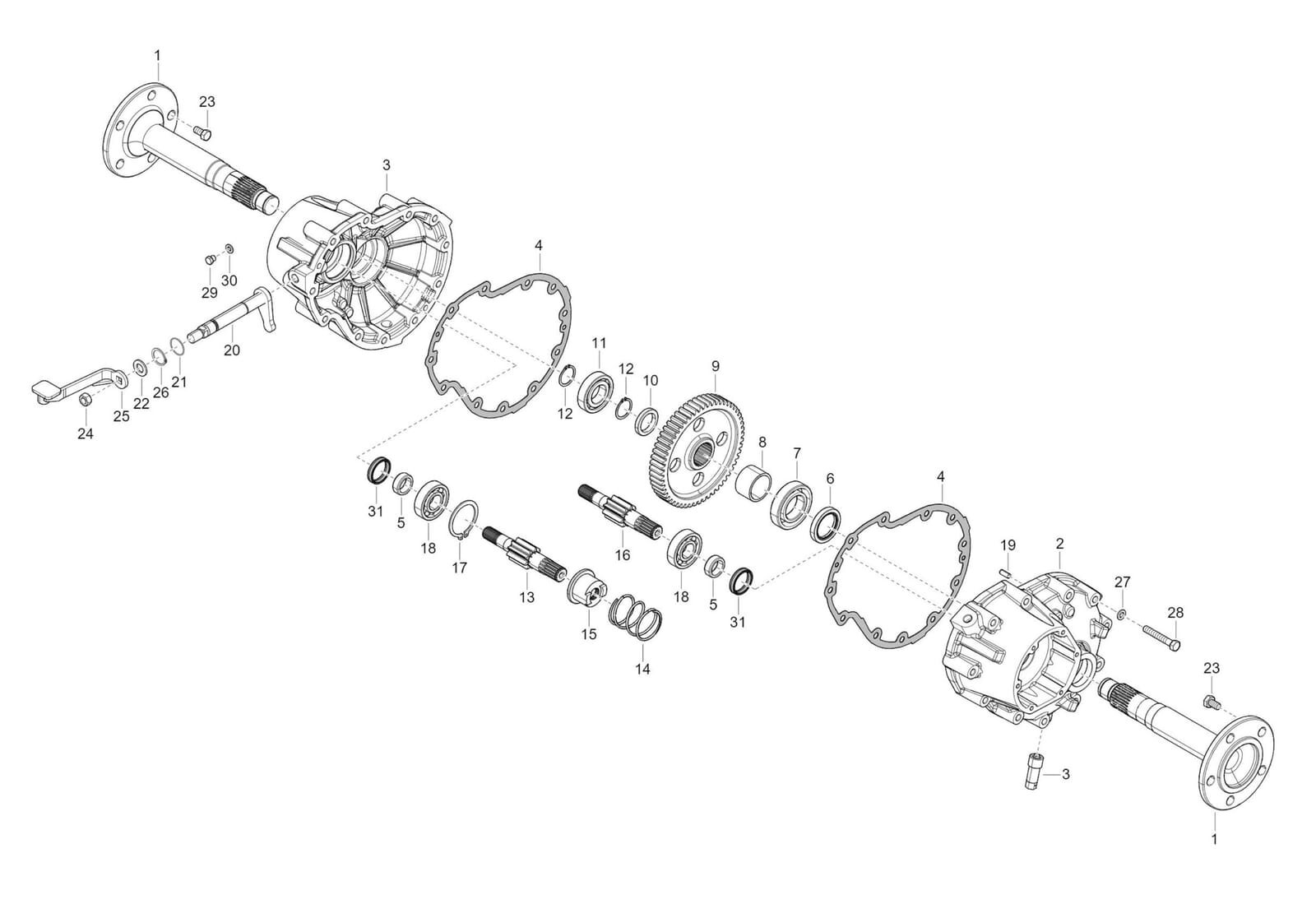

RA-1_BP SHAFT, BULL GEAR & REAR AXLE ASSY
Osaluettelo
| Nro | Osa | Hinta | Osta |
|---|---|---|---|
| 1 | REAR AXLE 10050717AC | Kysy saatavuus asiakaspalvelusta | |
| 1 | REAR AXLE (329MM LENGTH) 10050717AD | 269,00 € | |
| 1 | REAR AXLE 10050717BB | 248,99 € | |
| 1 | REAR AXLE 10056240AA | Kysy saatavuus asiakaspalvelusta | |
| 2 | BRAKE HSG. LEFT 10051235AD | Kysy saatavuus asiakaspalvelusta | |
| 2 | BRAKE HSG. LEFT 10051235AE | 199,00 € | |
| 3 | BRAKE HSG. RIGHT 10051234AD | Kysy saatavuus asiakaspalvelusta | |
| 3 | BRAKE HUSING RIGHT 10051234AE | 329,00 € | |
| 3 | DRAIN PLUG ASSEMBLY. 10024016AC | Kysy saatavuus asiakaspalvelusta | |
| 3 | DRAIN PLUG ASSEMBLY. 10024016AD | 29,89 € | |
| 4 | GASKET FOR BRAKE HSG. 10051199AB | 3,89 € | |
| 5 | SLEEVE(B.P. SHAFT) 10051232AB | Kysy saatavuus asiakaspalvelusta | |
| 5 | SLEEVE(B.P. SHAFT) 10051232AE | 29,89 € | |
| 6 | OIL SEAL (F4D 48X65X10) 20003306AB | Kysy saatavuus asiakaspalvelusta | |
| 6 | OIL SEAL (F4D 48X65X10) 20003306AC | 34,89 € | |
| 7 | BALL BEARING 6209 20005055AA | 44,89 € | |
| 7 | DEEP GROOVE BALL BEARING 6209 4000145085 | Kysy saatavuus asiakaspalvelusta | |
| 8 | SPACER BIG (REAR AXLE) 10050718AB | 34,89 € | |
| 9 | G.T BULL GEAR 10050719AD | 248,99 € | |
| 10 | SPACER SMALL REAR AXLE 10096266AB | 29,89 € | |
| 11 | DEEP GROOVE BALL BEARING 6207 4000135072 | Kysy saatavuus asiakaspalvelusta | |
| 11 | BALL BEARING 6207 20005054AA | 34,89 € | |
| 11 | BALL BEARING 6308NR 20003880AA | 59,89 € | |
| 12 | EXTERNAL CIRCLIP 40X2.5 H IS:3075 20004351AA | 3,89 € | |
| 12 | EXTERNAL CIRCLIP A-35 4020200035 | 19,95 € | |
| 13 | B.P. SHAFT RIGHT 10050853AF | Kysy saatavuus asiakaspalvelusta | |
| 13 | B.P. SHAFT RIGHT 10050853AG | 79,89 € | |
| 14 | SPRING DIFF LOCK 10050749AA | Kysy saatavuus asiakaspalvelusta | |
| 14 | SPRING DIFF LOCK 10050749AB | 3,89 € | |
| 15 | SLEEVE DIFF LOCK 10050734AB | 59,89 € | |
| 16 | B.P. SHAFT LEFT 10050858AF | Kysy saatavuus asiakaspalvelusta | |
| 16 | B.P. SHAFT LEFT 10050858AG | 79,89 € | |
| 17 | INTERNAL CIRCLIP B-68 IS:3075 20004275AA | 3,89 € | |
| 18 | BALL BEARING 63/28 20004125AA | Kysy saatavuus asiakaspalvelusta | |
| 18 | BALL BEARING 63/28 20004125AB | 59,89 € | |
| 19 | DOWEL PIN (8X15) 10051264AB | 3,89 € | |
| 20 | LUG DIFF LOCK ASSY 10050750AC | 34,89 € | |
| 20 | LUG DIFF LOCK ASSY 10050750AD | 14,27 € | |
| 21 | O-RING Ø10.6 x Ø2.3 20004141AA | Kysy saatavuus asiakaspalvelusta | |
| 21 | O-RING Ø10.6X Ø2.3 20004141AC | 3,89 € | |
| 22 | WASHER (DIFF. LOCK) 10051239AB | 3,89 € | |
| 23 | WHEEL BOLT FRONT 10004041AA | Kysy saatavuus asiakaspalvelusta | |
| 23 | WHEEL BOLT FRONT 20005630AA | 3,89 € | |
| 24 | HEX LOCK NUT M12 SA4GS 20005579AA | 3,89 € | |
| 24 | HEX NUT M12X1.75 -8 SA4GS 20005502AA | 3,89 € | |
| 24 | HEX NUT M12X1.75 -8 SA2JS 20003358AA | 2,49 € | |
| 25 | DIFF. LOCK PEDAL ASSY. 10051229AC | 19,95 € | |
| 26 | CIRCLIP C-12 4020400012 | 19,95 € | |
| 27 | SPRING WASHER B-10 TYPE A IS:3067-1972 20005518AA | 3,89 € | |
| 28 | HEX HEAD BOLT M10X1.5X75 20004139AA | 19,95 € | |
| 29 | SEALING PLUG M16*1.5 10000257AB | 3,89 € | |
| 30 | SEALING WASHER DIA 16.2* DIA 20 * 1.5 4030216020 | 2,90 € | |
| 31 | OIL SEAL 4D 050038 20004157AB | 34,89 € |
