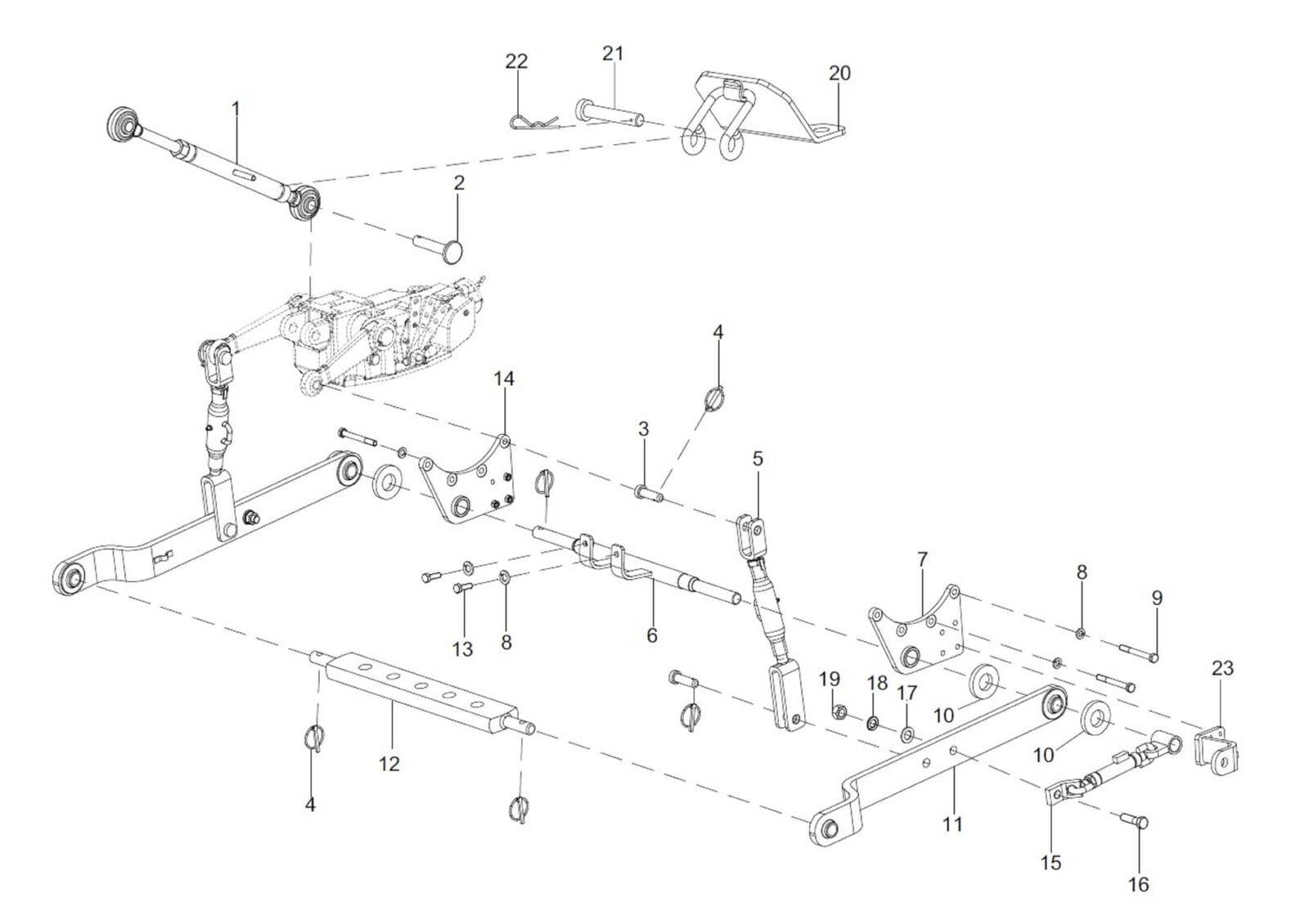

HY-7_THREE POINT LINKAGES
Osaluettelo
| Nro | Osa | Hinta | Osta |
|---|---|---|---|
| 1 | TOP LINK ASSY 10051213AA | Kysy saatavuus asiakaspalvelusta | |
| 1 | TOP LINK ASSY 10051213AC | 93,95 € | |
| 2 | PIN FOR TOP LINK 10053509AC | Kysy saatavuus asiakaspalvelusta | |
| 2 | PIN FOR TOP LINK 10057679AA | 34,89 € | |
| 3 | PIN (3 POINT LINK) 10057687AA | 29,89 € | |
| 3 | PIN (3 POINT LINK) 10057688AA | 29,89 € | |
| 3 | PIN (3 POINT LINK) 10056928AA | Kysy saatavuus asiakaspalvelusta | |
| 3 | PIN (3 POINT LINKAGE) 10051208AB | Kysy saatavuus asiakaspalvelusta | |
| 3 | LIFT ARM PIN 10054339AA | Kysy saatavuus asiakaspalvelusta | |
| 4 | LINCH PIN ASSY.(Ø7) 10087923AA | 3,89 € | |
| 5 | ADJUSTABLE LIFT ROD ASSY 10055149AC | 64,90 € | |
| 5 | ADJUSTABLE LIFT ROD ASSY 10053841AF | Kysy saatavuus asiakaspalvelusta | |
| 5 | LIFT ROD ASSY 300258584AB | 115,22 € | |
| 6 | SHAFT LOWER LINK ASSY 10055553AD | 128,99 € | |
| 6 | SHAFT LOWER LINK 10055554AD | Kysy saatavuus asiakaspalvelusta | |
| 6 | SHAFT LOWER LINK 10054650AB | Kysy saatavuus asiakaspalvelusta | |
| 7 | BUSH PLATE ASSY RH 10054336BA | 64,90 € | |
| 8 | SPRING WASHER B-10 TYPE A IS:3067-1972 20005518AA | 3,89 € | |
| 9 | HEX. BOLT M10*1.5*90 20003223AB | 3,89 € | |
| 10 | SPACER FOR LOWER LINK 10057675AA | 34,89 € | |
| 10 | SPACER FOR LOWER LINK 10051635AA | Kysy saatavuus asiakaspalvelusta | |
| 10 | SPACER 5 MM 300261840B | Kysy saatavuus asiakaspalvelusta | |
| 11 | LOWER LINK ASSY 300011311B | 198,99 € | |
| 11 | LOWER LINK ASSY 300263982B | 166,45 € | |
| 12 | DRAW BAR 10051214AB | 159,00 € | |
| 12 | DRAW BAR 10053993AA | Kysy saatavuus asiakaspalvelusta | |
| 13 | HEX SCREW M10*35 20003238AB | 2,49 € | |
| 14 | BUSH PLATE ASSY LH 10054335BA | 64,90 € | |
| 15 | ADJUSTABLE ANCHOR CHAIN ASSY 300010577B | 59,89 € | |
| 15 | ADJUSTABLE ANCHOR CHAIN ASSY 300262309B | 64,90 € | |
| 16 | HEX BOLT M14X2X50 12.9 SA4GS 300263064A | Kysy saatavuus asiakaspalvelusta | |
| 16 | HEX BOLT M14X2X50 SA4GS 20005495AA | 3,89 € | |
| 17 | PUNCHED WASHER A14 IS:2016 20005512AA | 3,89 € | |
| 18 | SPRING WASHER B-14 TYPE A IS:3067-1972 20005520AA | 3,89 € | |
| 19 | HEX NUT M14X2 -8 SA4GS 20005505AA | 3,89 € | |
| 20 | TOP LINK HOLDING BKT 10056463AA | 34,89 € | |
| 21 | PIN (FOR SWINGING DRAW BAR) 10055143AC | 34,89 € | |
| 21 | PIN FOR BUSH FOR ACCLERATOR 10057672AA | 3,89 € | |
| 22 | BEATA PIN 10087903AA | 3,89 € | |
| 23 | ADDITIONAL SUPPORT FOR LOWER LINK MOUNTI 10054560AA | 59,89 € |
