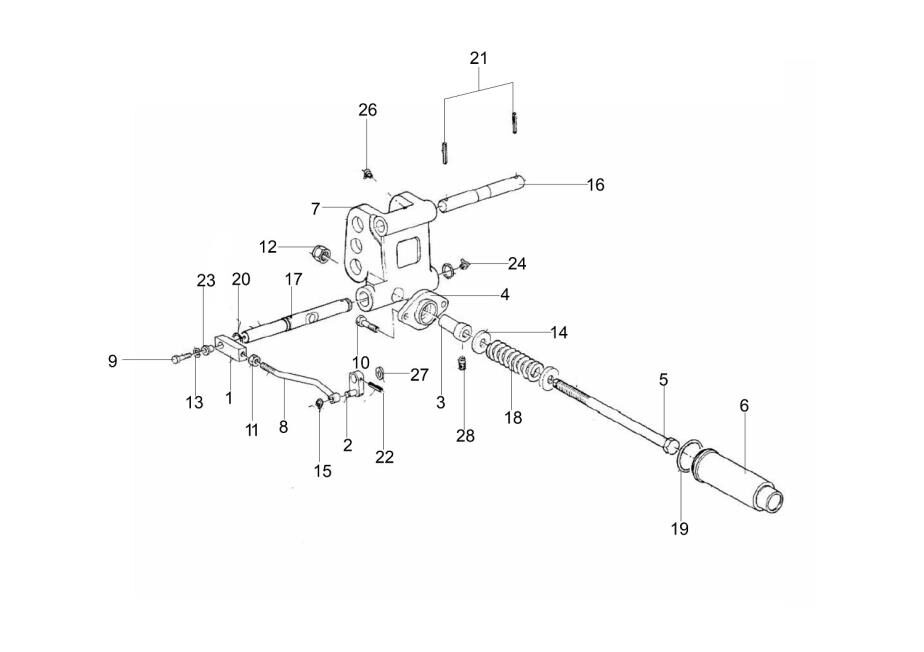

HY-4_SUPPORT TOP LINK ASSY HYDRAULIC LIFT
Osaluettelo
| Nro | Osa | Hinta | Osta |
|---|---|---|---|
| 1 | PLATE 10081049AA | 29,89 € | |
| 2 | LEVER 10081050AA | 34,89 € | |
| 3 | ROLLER 10081051AA | 19,95 € | |
| 4 | FLANGE 10081052AA | 19,95 € | |
| 5 | TIE ROD 10081053AA | 44,89 € | |
| 6 | SPRING COVER 10081054AA | 44,90 € | |
| 7 | SUPPORT 10081055AA | 189,00 € | |
| 8 | TIE ROD 10081056AA | 34,89 € | |
| 9 | SCREW TE M8X35 UNI5737 ZN 8.8 10080985AA | 3,89 € | |
| 10 | SCREW M12 X30 DIN 933-8G 10081057AA | 2,49 € | |
| 11 | NUT M10-8G 10081058AA | 2,49 € | |
| 12 | NUT M16X1.5 DIN982 10081059AA | 2,49 € | |
| 13 | LOCKERD8.1 DIN 7980 10081060AA | 19,95 € | |
| 14 | WASHER 10081061AA | 2,90 € | |
| 14 | WASHER 10039343AA | 3,89 € | |
| 15 | SEEGER RS7 10081018AA | 19,95 € | |
| 16 | PIN 10081062AA | 44,89 € | |
| 17 | PIN 10081063AA | 89,00 € | |
| 17 | PIN 10086418BB | 8,43 € | |
| 18 | COVER 10081064AA | 189,00 € | |
| 19 | OR 3200 D50,47X2,62 SH 70/80 10081065AA | 19,95 € | |
| 20 | OR 4093 D23AX3,53 SH 70/80 10081066AA | 19,95 € | |
| 21 | PIN D6X35UNI 6873 10081023AA | 19,95 € | |
| 22 | ELASTIC FIN D6X35 DIN 1481 10081067AA | 19,95 € | |
| 23 | BUSH D8/20X19 10081068AA | 29,89 € | |
| 24 | FITTING 45 M10X1 10081069AA | 19,95 € | |
| 26 | FITTING M10X1 10081070AA | 19,95 € | |
| 27 | WASHER 16,15/24,8X0,5-ZN 10081071AA | 2,90 € | |
| 28 | SCREW M8X8 10081072AA | 2,49 € |
