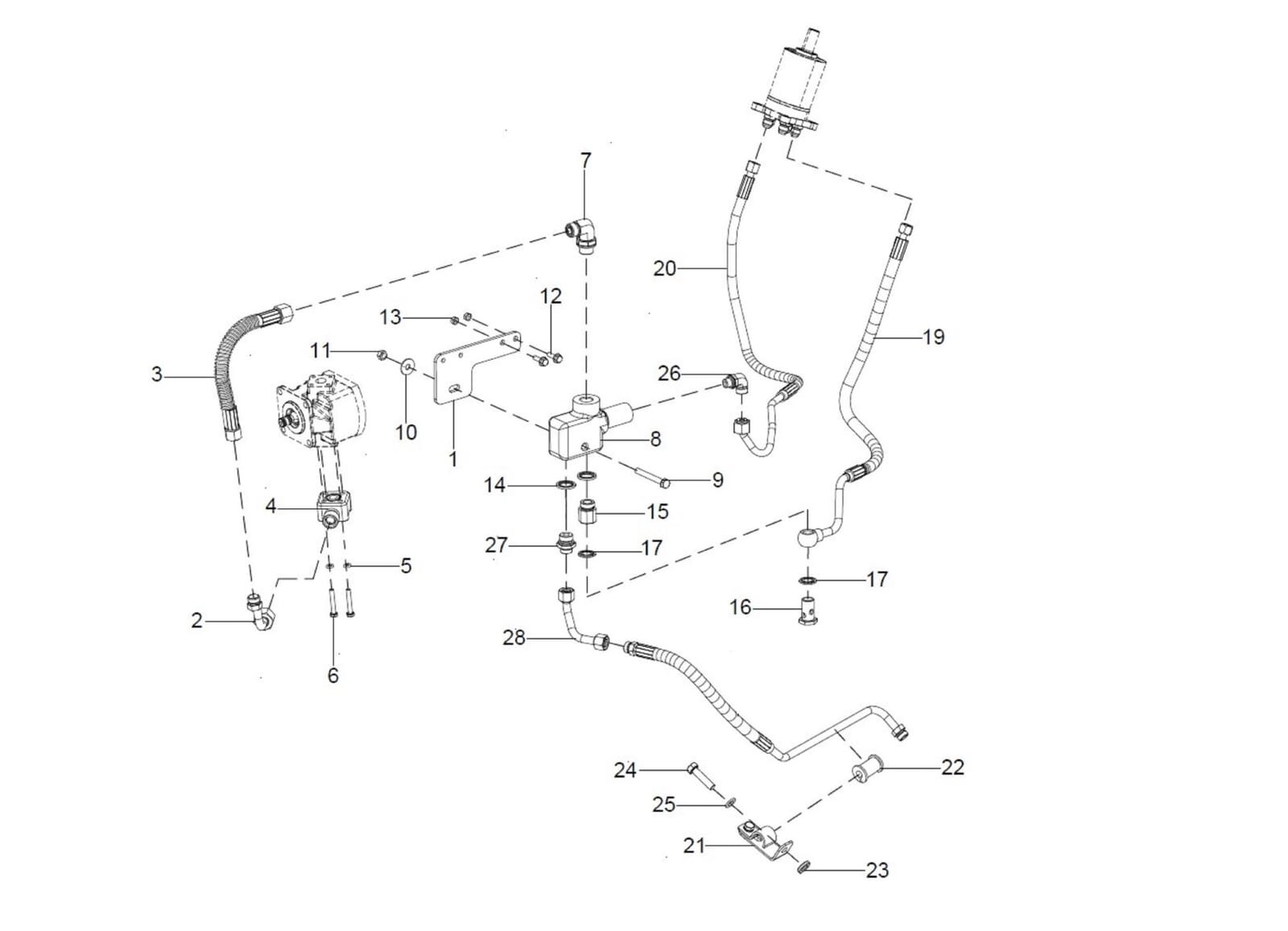

HY-12_DELIVERY LINE (HIGHER LPM)
Osaluettelo
| Nro | Osa | Hinta | Osta |
|---|---|---|---|
| 1 | PV MOUNTING BRACKET ASSEMBLY 300308206C | Kysy saatavuus asiakaspalvelusta | |
| 2 | PRI. PIPE FROM PUMP TO PV 300373440A | Kysy saatavuus asiakaspalvelusta | |
| 3 | SECONDARY PIPE FROM PUMP TO PRIORITY VAL 300212581B | 59,89 € | |
| 4 | DELIVERY ADOPTER 10056598AA | 34,89 € | |
| 5 | SPRING WASHER B-6 TYPE A IS:3067-1972 20005516AA | 3,89 € | |
| 6 | HEX BOLT M6*40 SA4GS 300028444A | 3,89 € | |
| 7 | 90° ADJUSTABLE STUD ELBOW 12 X G1/2-A 10053155CC | 34,89 € | |
| 8 | 10053068_PRIORITY VALVE CONCEPTUAL_40LPM 10053068AA | 378,88 € | |
| 9 | HEX HEAD BOLT M8X65_8.8 SA4GS 20005598AA | 3,89 € | |
| 10 | PLAIN WASHER DIA 8.4 *DIA 17*1.6 20004935AB | 3,89 € | |
| 11 | HEX NUT M8X1.25 -8 SA4GS 20005504AA | 3,89 € | |
| 12 | HEX FLANGE SCREW M6*1*20 -8.8 SA4GS 20005541AA | 3,89 € | |
| 13 | HEX NUT M6 -8 SA4GS 20005491AA | 3,89 € | |
| 14 | BONDED SEAL FOR 1/2 " BSP 10012579AB | 3,89 € | |
| 15 | ADOPTER_1/2"_BSP 10017560AB | Kysy saatavuus asiakaspalvelusta | |
| 16 | BANJO BOLT M18X1.5 IS-3174-1974 20003896AA | Kysy saatavuus asiakaspalvelusta | |
| 17 | BONDED SEAL FOR M18 10012573AA | 3,89 € | |
| 17 | BONDED SEAL FOR M18 300641078AB | Kysy saatavuus asiakaspalvelusta | |
| 18 | PRIMARY PIPE FROM PV EF PORT TO 1DA-DCV 300379883D | Kysy saatavuus asiakaspalvelusta | |
| 19 | FLEXIBLE PIPE FROM P.V. TO STG. UNIT (P) 300493633A | Kysy saatavuus asiakaspalvelusta | |
| 20 | PIPE FROM PV LS TO STG UNIT E 300306247A | Kysy saatavuus asiakaspalvelusta | |
| 21 | CLAMP ASSY. 300079489A | 19,95 € | |
| 22 | SPECIAL VIBRATION DAMPER FOR PIPE OD 12 300041675A | 3,89 € | |
| 23 | SPACER 5MM. 300163401A | 19,95 € | |
| 24 | HEX SCREW M10X1.25X40 8-8 SA4GS 20004367AB | 2,49 € | |
| 25 | SPRING WASHER B-10 TYPE A IS:3067-1972 20005518AA | 3,89 € | |
| 26 | 90° ADJUSTABLE STUD ELBOW 10 X G1/4-A 10053156CC | 34,89 € | |
| 27 | ADOPTADOPTER M18X1.5/ & G-1/2 A 10039266AD | 19,95 € | |
| 28 | PRI. PIPE FROM PV EF PORT TO DCV P PORT 300531496A | Kysy saatavuus asiakaspalvelusta |
