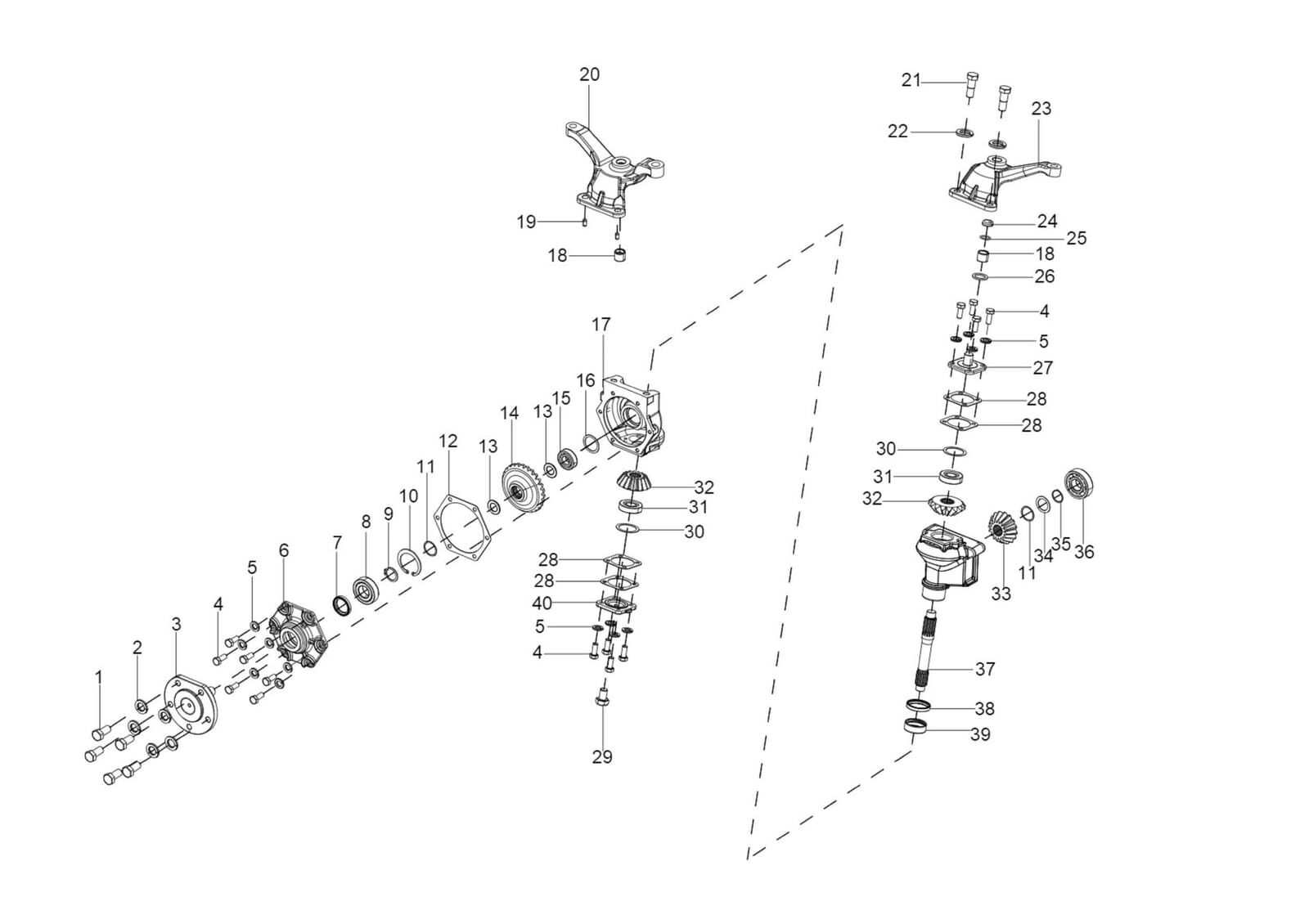

FA-4_FRONT AXLE -STUB AXLE AND COVER ASSY
Osaluettelo
| Nro | Osa | Hinta | Osta |
|---|---|---|---|
| 1 | HEX SCREW M12X1.25X25 SA4GS 20005557AA | 3,89 € | |
| 2 | SPRING WASHER B-12TYPE-A IS:3063-1972 20004993AB | 3,89 € | |
| 3 | FRONT AXLE 10051009AF | 159,00 € | |
| 4 | HEX HEAD SCREW M8X1.25X20 -8.8 SA4GS 20005565AA | 3,89 € | |
| 5 | SPRING WASHER B-8 TYPE A IS:3067-1972 20005517AA | 3,89 € | |
| 6 | FRONT AXLE COVER 10051005AF | 59,89 € | |
| 7 | OIL SEAL 4B 047035 (SUPER SEAL) 20004128AC | 3,89 € | |
| 8 | BEARING 6206 NTN 20003468AA | 34,89 € | |
| 9 | CIRCLIP A-30 HEAVY DUTY (FOR LAY SHAFT) 20003856AA | 3,89 € | |
| 10 | INTERNAL CIRCLIP B-62 4020100062 | 19,95 € | |
| 11 | SHIM SMALL(T.P. SHAFT)-0.20 10050793AA | 3,89 € | |
| 11 | SHIM SMALL(T.P. SHAFT)-0.50 10051150AA | 3,89 € | |
| 11 | SHIM SMALL(T.P. SHAFT)-0.30 10051281AA | 3,89 € | |
| 12 | GASKET FRONT AXLE COVER 10054286AB | 3,89 € | |
| 13 | SPACER PILOT BEARING 300102852A | 3,89 € | |
| 14 | BEVEL GEAR Z-27 300000297B | 159,00 € | |
| 15 | BALL BEARING 6204 20002910AA | 34,89 € | |
| 16 | SHIM BP SHAFT 0.1 10096382AA | 3,89 € | |
| 16 | SHIM BP SHAFT 0.2 10096383AA | 3,89 € | |
| 16 | SHIM BP SHAFT 0.5 10096384AA | 3,89 € | |
| 17 | FRONT AXLE HSG. 10051007AI | Kysy saatavuus asiakaspalvelusta | |
| 18 | COLLAR BUSH 300198239A | 3,89 € | |
| 19 | DOWEL (8X15) 10052662AA | 3,89 € | |
| 20 | ASSY STEERING ARM DOUBLE 10053177AD | 79,89 € | |
| 21 | BOLT SPECIAL FOR STEERING ARM 300104496A | 3,89 € | |
| 22 | SPRING WASHER B-14 TYPE A IS:3067-1972 20005520AA | 3,89 € | |
| 23 | ASSY STEERING ARM (SINGLE) 10053176AC | 64,90 € | |
| 24 | CAP STEERING ARM 10051277AA | 3,89 € | |
| 25 | O-RING (FOR DIFF LOCK) 20002960AC | 3,89 € | |
| 26 | WASHER 2.8 MM (STEERING ARM GUIDE) 300179791A | 3,89 € | |
| 26 | WASHER 3.0 MM (STEERING ARM GUIDE) 300179792A | 3,89 € | |
| 26 | WASHER 3.2 MM (STEERING ARM GUIDE) 300179793A | 3,89 € | |
| 27 | STEERING ARM GUIDE 10051015BA | 34,89 € | |
| 28 | GASKET STEERING ARM GUIDE 10054282AB | 3,89 € | |
| 29 | HEX SCREW M8X1.25X12 8.8 SA3NS 20004356AA | 3,89 € | |
| 30 | SHIM(GEAR Z-16)-0.20 10051312AA | 3,89 € | |
| 30 | SHIM(GEAR Z-16)-0.30 10051313AA | 3,89 € | |
| 30 | SHIM(GEAR Z-16)-0.50 10051314AA | 3,89 € | |
| 31 | TAPPER ROLLER BEARING 30304 20004333AA | 44,89 € | |
| 32 | BEVEL GEAR Z-16 (UPPER) 300000302B | 79,89 € | |
| 33 | BEVEL GEAR Z-15 300000301A | 79,89 € | |
| 34 | SHIM(GEAR Z-15)-0.20 10051309AA | 3,89 € | |
| 35 | EXTERNAL CIRCLIP A-28 20004276AA | 3,89 € | |
| 36 | BALL BEARING 63/28 20004125AB | 59,89 € | |
| 37 | STUB AXLE 10051027AA | 59,89 € | |
| 38 | OIL SEAL TYPE-3B (54.2X44.4X4.7) 20004126AB | 34,89 € | |
| 39 | BUSH(FRONT AXLE HSG.) 10051256AD | Kysy saatavuus asiakaspalvelusta | |
| 40 | BEARING COVER 10051018AA | 29,89 € |
