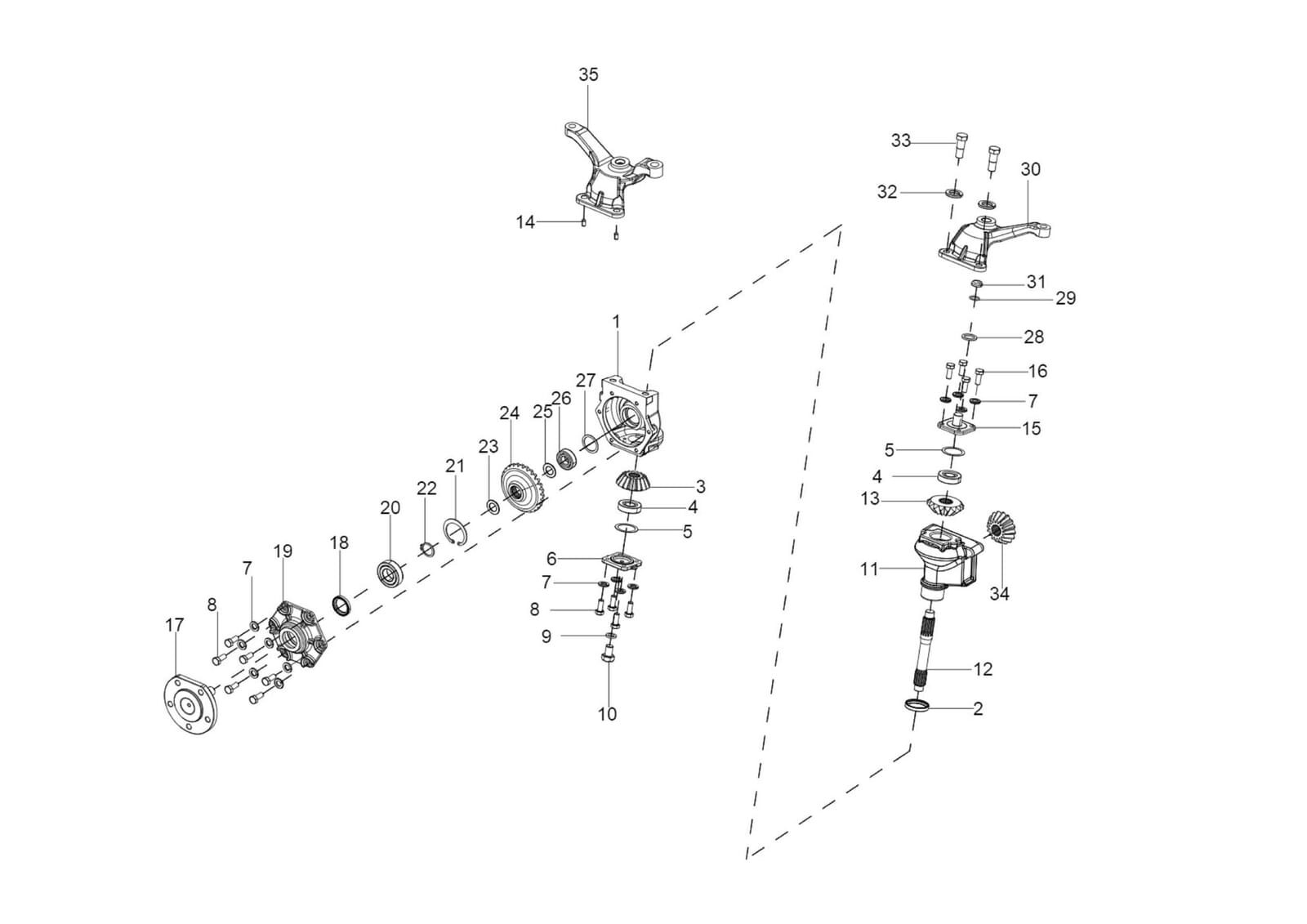

FA-10_STUB AXLE ASSY (PADDY)
Osaluettelo
| Nro | Osa | Hinta | Osta |
|---|---|---|---|
| 1 | ASSY FRONT AXLE HSG 10055248BB | Kysy saatavuus asiakaspalvelusta | |
| 2 | SEAL TREA00450N7MMR GT FA PADDY 10055080AA | 29,89 € | |
| 3 | BEVEL GEAR Z-16 (LOWER) 300000300B | 79,89 € | |
| 4 | TAPPER ROLLER BEARING 30304 20004333AA | 44,89 € | |
| 5 | SHIM(GEAR Z-16)-0.20 10051312AA | 3,89 € | |
| 5 | SHIM(GEAR Z-16)-0.30 10051313AA | 3,89 € | |
| 5 | SHIM(GEAR Z-16)-0.50 10051314AA | 3,89 € | |
| 6 | BEARING COVER 10051018AB | Kysy saatavuus asiakaspalvelusta | |
| 7 | SPRING WASHER B-8 TYPE A IS:3067-1972 20005517AA | 3,89 € | |
| 8 | HEX HEAD SCREW M8X1.25X20 -8.8 SA4GS 20005565AA | 3,89 € | |
| 8 | HEX. HEAD SCREW M8X1.25X20 8.8 SA4GS 200000430A | 3,89 € | |
| 9 | SEALING WASHER 8X12 10051938AA | 3,89 € | |
| 10 | HEX SCREW M8X1.25X12 8.8 SA3NS 20004356AA | 3,89 € | |
| 11 | STUB AXLE HOUSING PADDY SPL 10055225BC | Kysy saatavuus asiakaspalvelusta | |
| 12 | STUB AXLE SHAFT 10051027BA | 59,89 € | |
| 13 | BEVEL GEAR Z-16 (UPPER) 300000302B | 79,89 € | |
| 14 | DOWEL (8X15) 10052662AA | 3,89 € | |
| 15 | STEERING ARM GUIDE 10051015BA | 34,89 € | |
| 16 | HEX HEAD SCREW M8X1.25-25 -8.8 SA4GS 20005564AA | 3,89 € | |
| 17 | FRONT AXLE (PADDY) 300171735B | Kysy saatavuus asiakaspalvelusta | |
| 18 | MECHANICAL FACE SEAL FOR FRONT AXLE 300171749A | Kysy saatavuus asiakaspalvelusta | |
| 19 | FRONT AXLE COVER (PADDY) 300171733B | Kysy saatavuus asiakaspalvelusta | |
| 20 | BEARING 6206 NTN 20003468AA | 34,89 € | |
| 21 | INTERNAL CIRCLIP B-62 4020100062 | 19,95 € | |
| 22 | CIRCLIP A-30 HEAVY DUTY (FOR LAY SHAFT) 20003856AA | 3,89 € | |
| 23 | SPACER FOR BEVEL GEAR Z-27 300102863A | 3,89 € | |
| 23 | SPACER 3.3 MM 300201263A | Kysy saatavuus asiakaspalvelusta | |
| 23 | SPACER 3.4 MM 300201265A | Kysy saatavuus asiakaspalvelusta | |
| 24 | BEVEL GEAR Z-27 300000297B | 159,00 € | |
| 25 | SPACER PILOT BEARING 300102852A | 3,89 € | |
| 26 | BALL BEARING 6204 20002910AA | 34,89 € | |
| 27 | SHIM BP SHAFT 0.1 10096382AA | 3,89 € | |
| 27 | SHIM BP SHAFT 0.2 10096383AA | 3,89 € | |
| 27 | SHIM BP SHAFT 0.5 10096384AA | 3,89 € | |
| 28 | WASHER 2.8 MM (STEERING ARM GUIDE) 300179791A | 3,89 € | |
| 28 | WASHER 3.0 MM (STEERING ARM GUIDE) 300179792A | 3,89 € | |
| 28 | WASHER 3.2 MM (STEERING ARM GUIDE) 300179793A | 3,89 € | |
| 29 | O-RING (FOR DIFF LOCK) 20002960AC | 3,89 € | |
| 30 | ASSY STEERING ARM SINGLE 300229673A | 64,90 € | |
| 30 | ASSY STEERING ARM SINGLE 300229673B | 60,33 € | |
| 31 | CAP STEERING ARM 10051277AA | 3,89 € | |
| 32 | SPRING WASHER B-14 TYPE A IS:3067-1972 20005520AA | 3,89 € | |
| 33 | BOLT SPECIAL FOR STEERING ARM 300104496A | 3,89 € | |
| 34 | BEVEL GEAR Z-15 300000301A | 79,89 € | |
| 35 | ASSY STEERING ARM DOUBLE 300229674A | 79,89 € |
