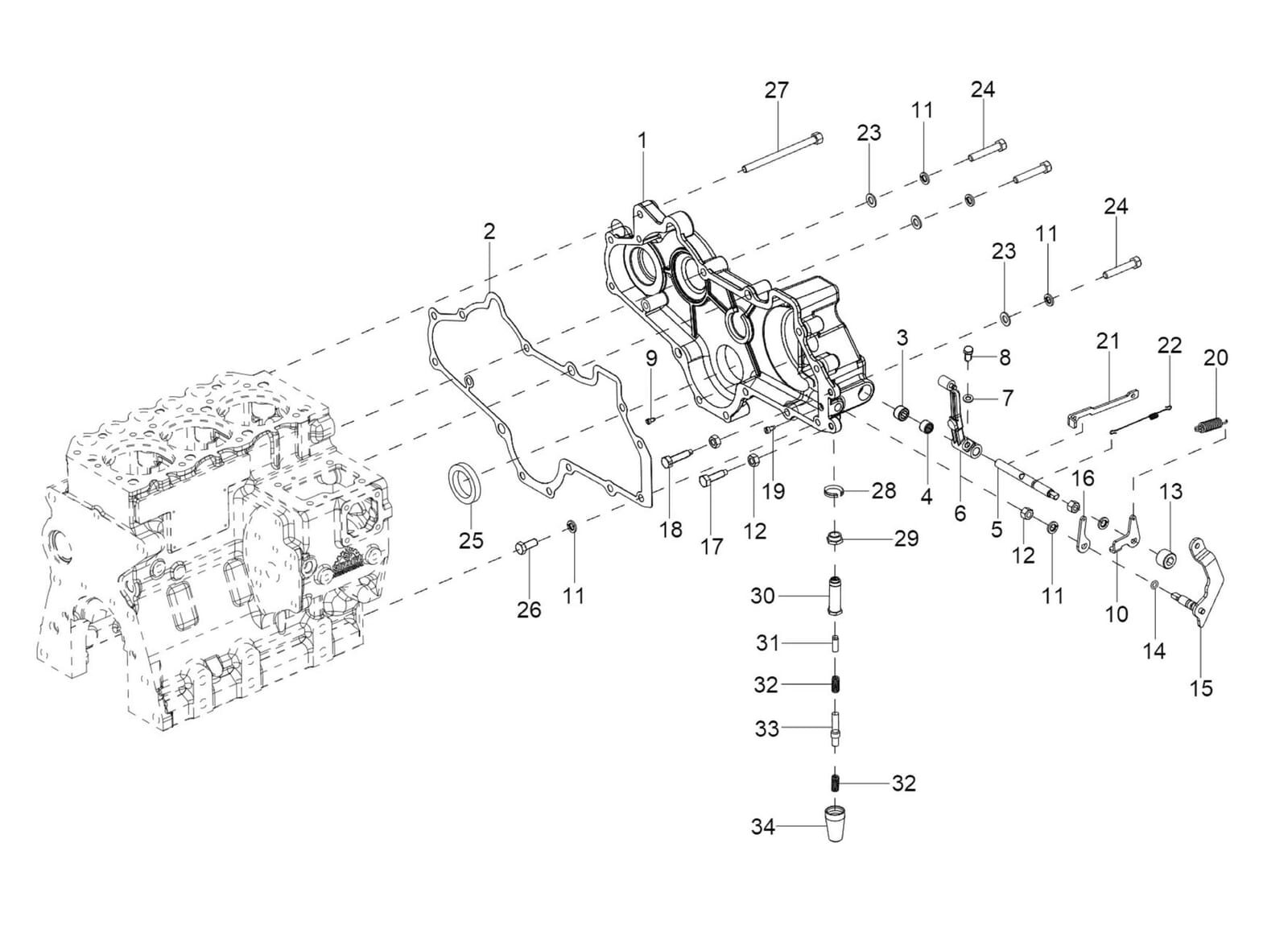

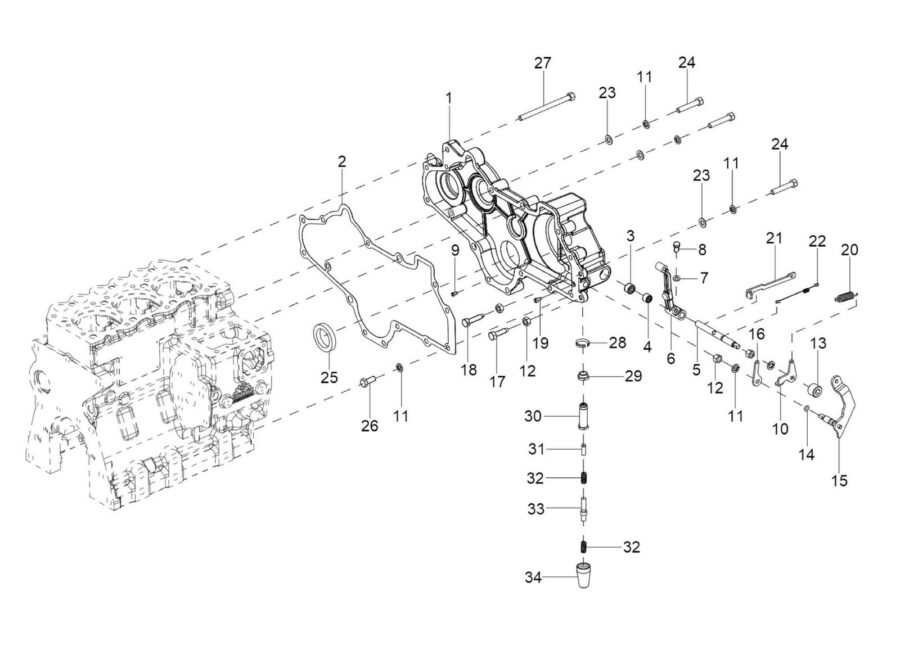

EN-3_FRONT COVER & HOUSING ASSY
Osaluettelo
| Nro | Osa | Hinta | Osta |
|---|---|---|---|
| 1 | FRONT COVER 703002138K | 128,99 € | |
| 1 | FRONT COVER 703002138K | 128,99 € | |
| 2 | GASKET FRONT COVER 703002152C | 3,89 € | |
| 3 | NEEDLE R/ BEARING 10/14X10 (DB101410P) 4000610014 | Kysy saatavuus asiakaspalvelusta | |
| 4 | NEEDLE R/ BEARING 10/16X10 (DB101610P) 4000610016 | Kysy saatavuus asiakaspalvelusta | |
| 5 | ACCELERATOR ROD 703008195F | 19,95 € | |
| 6 | F.I.P CONTROL LINK 703008190H | Kysy saatavuus asiakaspalvelusta | |
| 7 | SPRING WASHER 4031400006 | 2,90 € | |
| 7 | SPRING WASHER B-6 TYPE A IS:3067-1972 20005516AA | 3,89 € | |
| 8 | HEX HEAD SCREW M6X1X14 8.8 SA4GS 20005496AA | 3,89 € | |
| 9 | SPL. HEAD SCREW M4 X 0.7 - 8 703008132B | 2,49 € | |
| 10 | STRIP PULLING WITH STOPPER GTE08000012B | 19,95 € | |
| 11 | SPRING WASHER B- 8 (BLACKENED) 4031400008 | 2,90 € | |
| 12 | HEX NUT M8X1.25 -8 SA4NS 200000391A | 3,89 € | |
| 13 | TAPER PLUG 1/2"NPT 703402270B | 19,95 € | |
| 14 | O RING DIA 6.5X2 703008161A | 19,95 € | |
| 15 | ACCELERATOR LEVER 803408262A | 19,95 € | |
| 16 | STRIP PULLING 300140838A | 19,95 € | |
| 17 | SPECIAL SCREW M8*1X35 300054372B | 2,49 € | |
| 18 | SPECIAL SCREW M8 X 1.25 X 30 - 8.8 300054408A | 2,49 € | |
| 19 | SPL SCREW M4*8 WHITE PASSIVATION 300140802A | 2,49 € | |
| 20 | GOVERNING SPRING 300054046C | 19,95 € | |
| 21 | STRIP CONTROL LINK 300054440A | 19,95 € | |
| 22 | HOLDING SPRING 703008126A | 19,95 € | |
| 23 | PUNCHED WASHER M8 20005612AA | 3,89 € | |
| 24 | HEX HEAD BOLT M8X50_8.8 SA4GS 20005596AA | 3,89 € | |
| 25 | OIL SEAL 50X35X8 FRONT 803002042A | 34,89 € | |
| 26 | HEX HEAD SCREW M8X1.25X20 -8.8 SA4GS 20005565AA | 3,89 € | |
| 27 | HEX BOLT M8X1.25X110 8.8 SA4GS 300117427A | 19,95 € | |
| 28 | SPL. LOCK WASHER GTE08000007A | 3,89 € | |
| 29 | LOCK NUT M12 X 1 300140771A | 3,89 € | |
| 29 | HEX LOCK NUT M12 SA4GS 20005579AA | 3,89 € | |
| 29 | HEX NYLOC NUT M 12 SA4GS 20003378AC | 2,49 € | |
| 30 | GOVERNING STOPPER PIN DIA M12 X 1 GTE08000004A | 3,89 € | |
| 31 | ADJUSTING SCREW M8 X 1 X 30 (8.8) GTE08000009A | 3,89 € | |
| 32 | COMPRESSION SPRING 6 X 13 GTE08000006A | 3,89 € | |
| 33 | PLUNGER DIA 3.4 GTE08000005A | 3,89 € | |
| 34 | SEALING CAP DIA 19 300054532D | 29,89 € |
