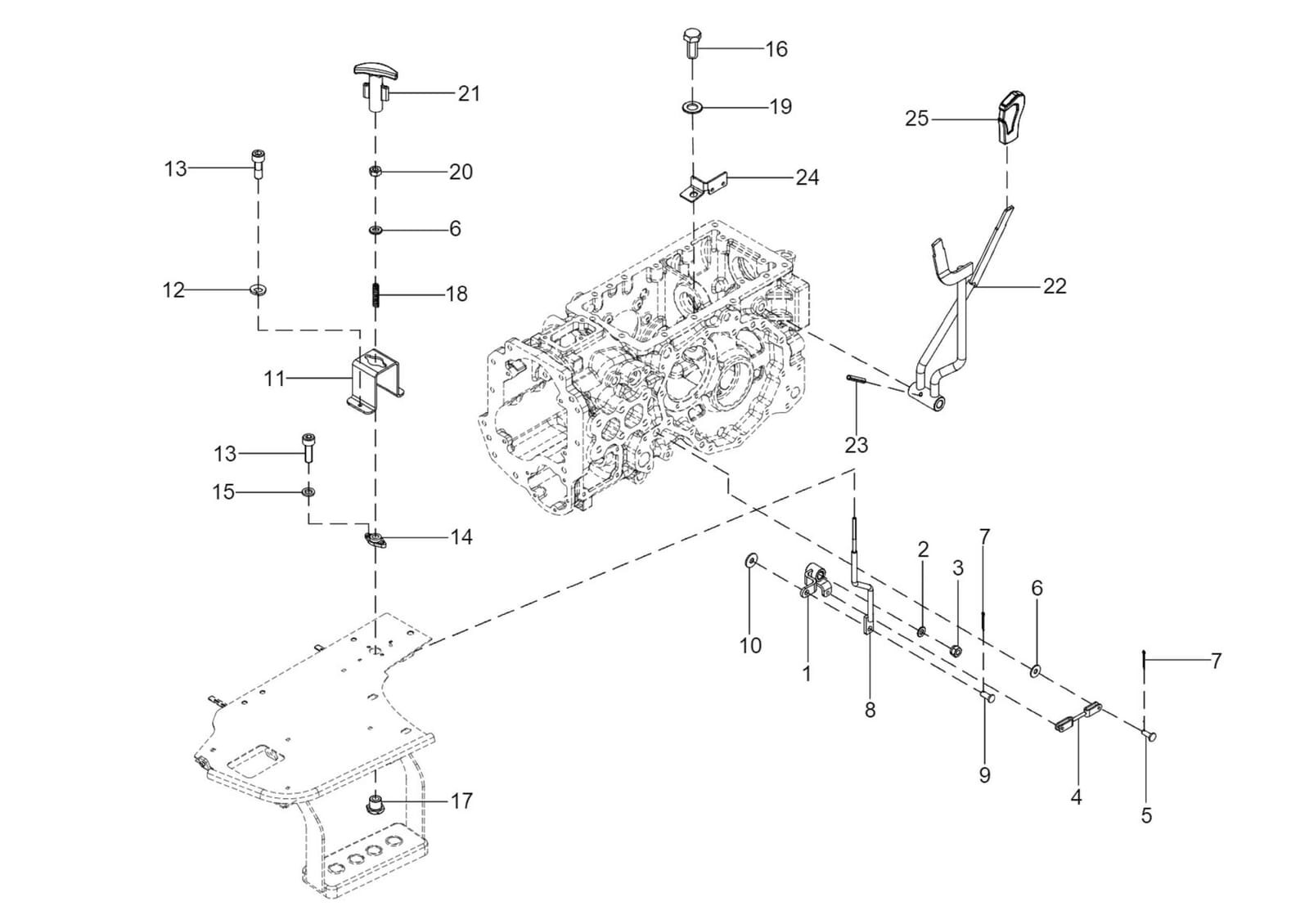

BC-9_4WD LEVER ASSEMBELY & PTO LEVER ASSY.

Malli: Solis 26 4wd 9+9 ROPS Osaryhmä: Brakes & controls

BC-9_4WD LEVER ASSEMBELY & PTO LEVER ASSY. Avaa kuva suurempana

Osaluettelo

Nro Osa Hinta Osta
1 4WD HUB ASSY 300076803B 34,89 €
2 M/CD WASHER 10.5*21*2 20005625AA 3,89 €
3 HEX NYLOC NUT M10 8 SA4GS 20003377AD 3,89 €
4 TIE ROD ASSY 300076950A 3,89 €
5 PIN FOR ACCELRATOR 10004177AB 3,89 €
6 M/C WASHER DIA 6.4*DIA 12.4*1.6 20004941AB 3,89 €
7 SPLIT PIN DIA 2*25 20005526AA 3,89 €
8 CONNECTING ROD FOR 4WD LEVER ASSY 300077548D 29,89 €
9 PIN FOR ACCELRATOR 10066733AA 3,89 €
10 PLAIN WASHER A 10.5 IS:5370 STEEL 20005523AA 3,89 €
11 BRACKET FOR 4WD LEVER WITH BLACK PAINT 10057562AA 19,95 €
12 SPRING WASHER B-6 TYPE A IS:3067-1972 20005516AA 3,89 €
13 SOCKET HEAD SCREW 10080900AA 2,49 €
14 FLANGE BEARING 4WD LEVER 10083082AB 34,89 €
15 SPRING WASHER B-5 TYPE A IS:3067-1972 20005515AA 3,89 €
16 HEX SCREW M14X2X40 20005552AA 3,89 €
16 HEX.SCREW M14X2X40 20004587AC 2,49 €
17 SPECIAL BOLT (FOR 4WD LEVER) 300028488A 3,89 €
18 SPRING (PARKING BRAKE) 10007237AA 3,89 €
18 SPRING (4WD LEVER) 10007237AB 3,89 €
19 SPRING WASHER B-14 TYPE A IS:3067-1972 20005520AA 3,89 €
20 HEX NUT M6 -8 SA4GS 20005491AA 3,89 €
21 HANDLE FOR PUSH PULL ROD 300031384C 3,89 €
22 PTO LEVER ASSY 9+3 300068429C 27,90 €
23 SPRING COTTER SLEEVE 6X36 HEAVY DUTY DIN 20005030AA 3,89 €
24 MTG BKT FOR SAFETY SWITCH 300077087C 19,95 €
25 PTO LEVER KNOB 300106707B 29,89 €
