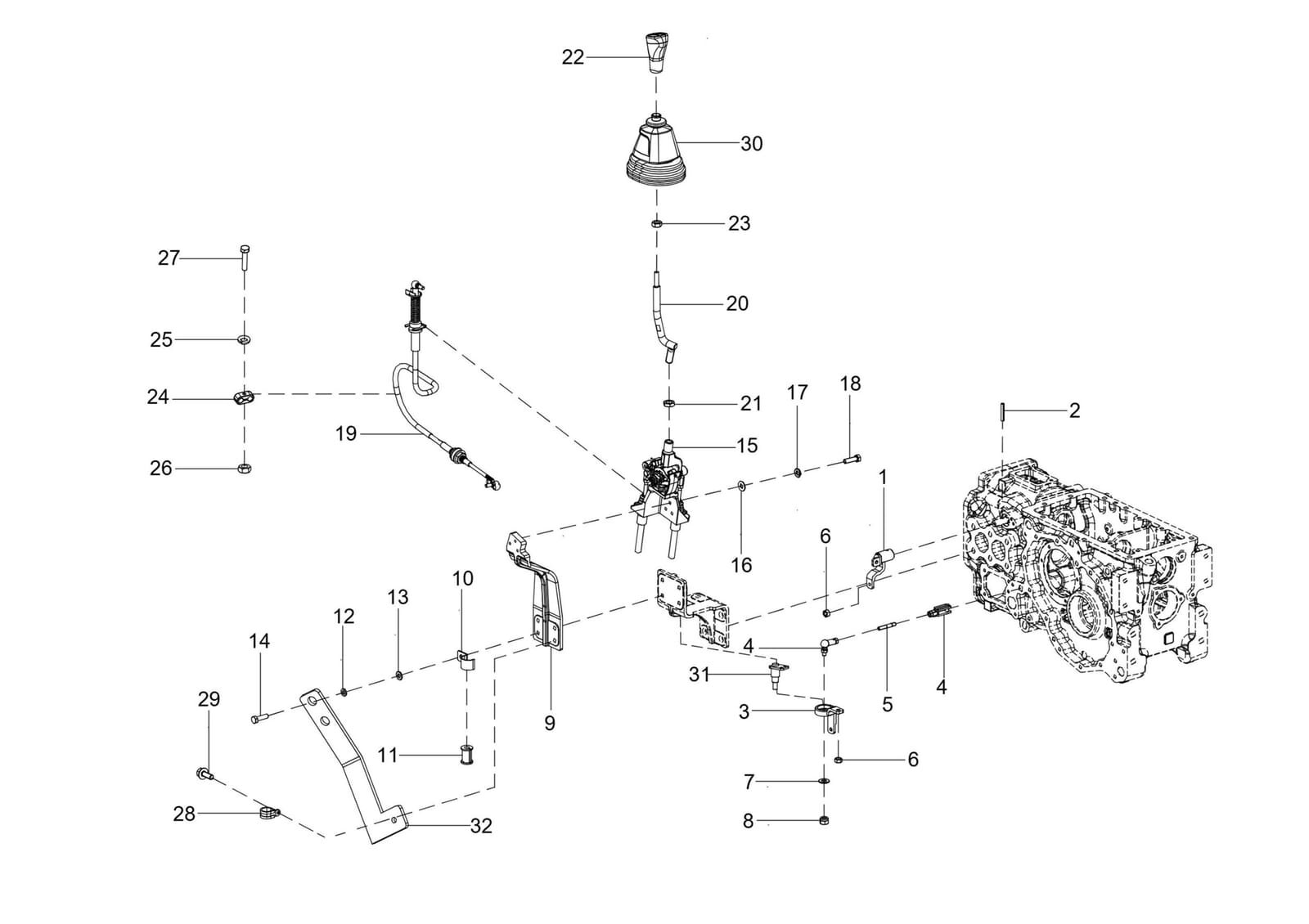

BC-7_RANGE LEVER ASSY.
Osaluettelo
| Nro | Osa | Hinta | Osta |
|---|---|---|---|
| 1 | HUB ASSY 300126169A | 34,89 € | |
| 2 | SPRING COTTER SLEEVE 6X36 HEAVY DUTY DIN 20005030AA | 3,89 € | |
| 3 | PIVOT BKT ASSY RANGE 300175662A | 34,89 € | |
| 4 | ANGLE JOINT & FORK HEAD ASSY 10081718AA | Kysy saatavuus asiakaspalvelusta | |
| 5 | STUD M8 X 1.25 - 40 10.9 TYPE C PHOSPHA 4040408040 | 19,95 € | |
| 6 | HEX NUT M8X1.25 -8 SA4GS 20005504AA | 3,89 € | |
| 7 | M/CD WASHER 10.5*21*2 20005625AA | 3,89 € | |
| 8 | HEX NYLOCK NUT M10 -8 20005529AA | 3,89 € | |
| 8 | HEX NYLOC NUT M10 8 SA4GS 20003377AD | 3,89 € | |
| 9 | RANGE SIDE MTG BKT 300127241A | Kysy saatavuus asiakaspalvelusta | |
| 10 | CURVE CLAMP 300056694A | 19,95 € | |
| 11 | SPECIAL VIBRATION DAMPER FOR PIPE OD 12 300041675A | 3,89 € | |
| 12 | SPRING WASHER B-10 TYPE A IS:3067-1972 20005518AA | 3,89 € | |
| 13 | M/C WASHER B10 200000375A | 3,89 € | |
| 14 | HEX SCREW M10*35 20003238AB | 2,49 € | |
| 14 | HEX HEAD SCREW M10X1.5X35 10.9 SA4GS 300088070A | 2,49 € | |
| 15 | RANGE LEVER ASSY 300270862A | Kysy saatavuus asiakaspalvelusta | |
| 16 | M/CD WASHER B8 20005624AA | 3,89 € | |
| 17 | SPRING WASHER B-8 TYPE A IS:3067-1972 20005517AA | 3,89 € | |
| 18 | HEX SCREW M8X1.25X30 -8.8 SA4GS 20005563AA | 3,89 € | |
| 19 | PUSH PULL CABLE ASSY 300242935B | 189,00 € | |
| 20 | RANGE LEVER 300134751A | 19,95 € | |
| 21 | HEX LOCK NUT M16 SA4GS 20005463AA | 3,89 € | |
| 22 | RANGE LEVER KNOB ASSY 300164744A | 34,89 € | |
| 23 | HEX NUT M10 -8 SA4GS 20003357AF | 3,89 € | |
| 24 | CLAMP FOR PIPE 20001175AD | 3,89 € | |
| 25 | SPRING WASHER B-6 TYPE A IS:3067-1972 20005516AA | 3,89 € | |
| 26 | HEX NUT M6 -8 SA4GS 20005491AA | 3,89 € | |
| 27 | HEX SCREW M6X30 SA4GS 20005568AA | 3,89 € | |
| 28 | PIPE CLAMP FOR DIA 24 10094100AA | 3,89 € | |
| 29 | HEX FLANGE SCREW M6*1*16 -8.8 SA4GS 20005542AA | 3,89 € | |
| 30 | BELLOW RANGE SIDE 300178703A | 44,89 € | |
| 31 | ANGE LEVER PIN ASSY 300175650A | Kysy saatavuus asiakaspalvelusta | |
| 32 | CABLE HOLDING BKT (BLACK PAINTED) 300563162A | Kysy saatavuus asiakaspalvelusta |
