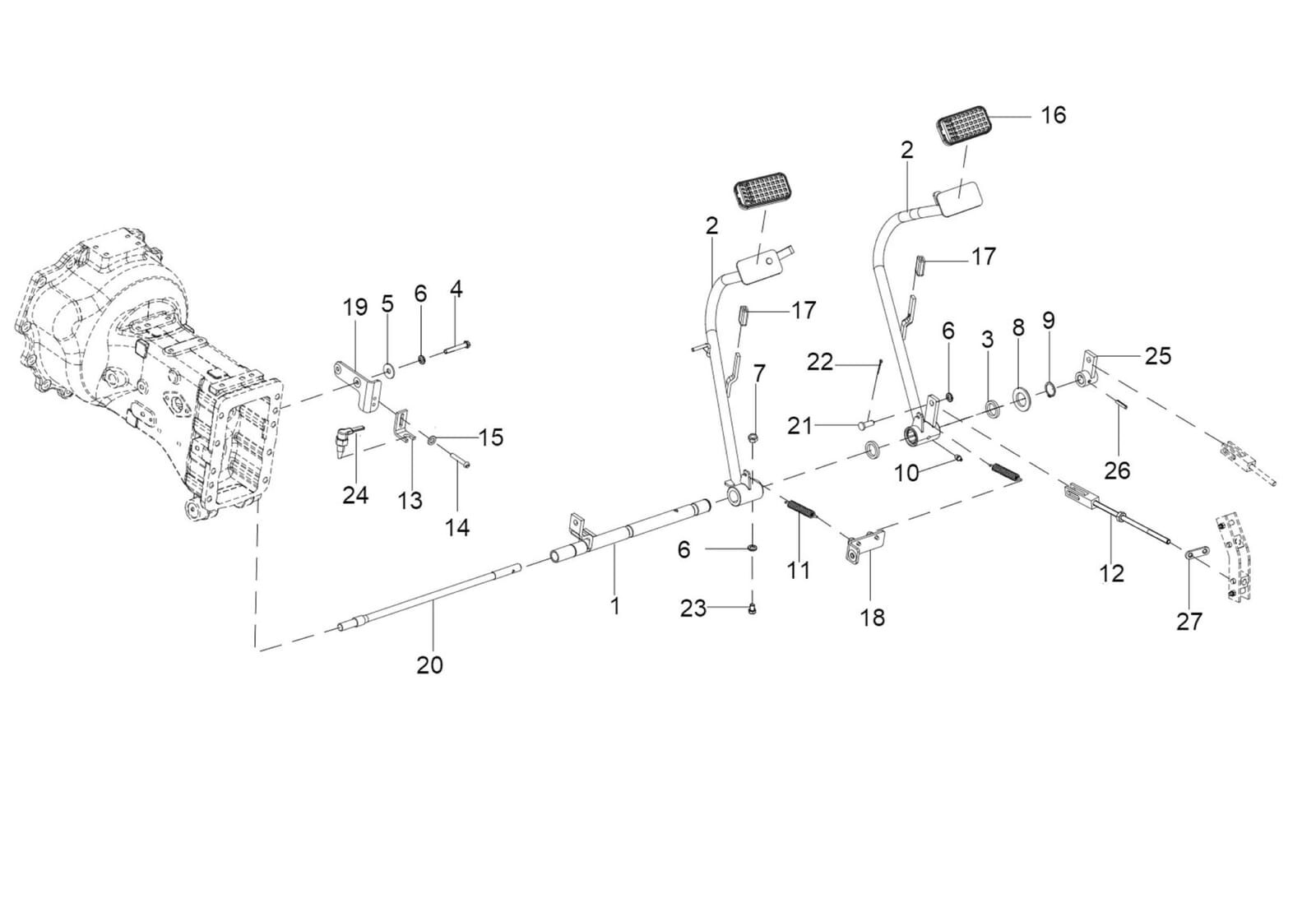

BC-2_BRAKE PADEL ASSY
Osaluettelo
| Nro | Osa | Hinta | Osta |
|---|---|---|---|
| 1 | BRAKE PEDAL SHAFT 24HP 10052621AB | 29,90 € | |
| 2 | BRAKE PEDAL ASSY.(L&R) 10053427AE | 128,99 € | |
| 3 | BKT FOR BRAKE & CLUTCH SWITCH MTG. 10051138AA | 19,95 € | |
| 3 | FELT RING 10051143AA | 3,89 € | |
| 4 | HEX HEAD BOLT M8X1.25X55 20004136AA | Kysy saatavuus asiakaspalvelusta | |
| 5 | PLAIN WASHER DIA 8.4 *DIA 17*1.6 20004935AB | 3,89 € | |
| 6 | SPRING WASHER B-8 TYPE A IS:3067-1972 20005517AA | 3,89 € | |
| 7 | HEX NUT M8X1.25 -8 SA4GS 20005504AA | 3,89 € | |
| 8 | 3/CD WASHER DIA 26 *DIA 44*4 20004133AB | 2,90 € | |
| 9 | EXTERNAL CIRCLIP A - 25 20004134AA | 3,89 € | |
| 10 | CONICAL HEAD GRESE NIPPLE B M8X1 IS:4009 20003460AC | 3,89 € | |
| 11 | TENSION SPRING 10007881BB | 3,89 € | |
| 12 | BRAKE TIE ROD ASSY 10056880AB | 19,95 € | |
| 12 | BRAKE TIE ROD ASSY 300023280C | 34,89 € | |
| 12 | TIE ROD ASSY 300030663A | 34,89 € | |
| 13 | BRACKET FOR CLUTCH SAFETY SWITCH 10056881AB | 3,89 € | |
| 13 | BKT FOR CLUTCH SAFETY SWITCH 300189368C | 19,95 € | |
| 14 | SLOTTED CHEESE HEAD SCREW M5X30 SA4GS 10083043AB | 2,49 € | |
| 14 | SLOTTED CHEASE HEAD SCREW M5*30 200000385A | 2,49 € | |
| 15 | SPRING WASHER B-5 TYPE A IS:3067-1972 20005515AA | 3,89 € | |
| 16 | PADEL RUBBER PAD 10053401AD | 3,89 € | |
| 17 | RUBBER SLEEVE 10005009AC | 3,89 € | |
| 18 | BRAKES SPRING MTG BRACKET 10053335AA | 29,89 € | |
| 19 | BRAKE SWITCH MOUNTING BRACKET 10053450AB | 29,89 € | |
| 20 | PARKING BRAKE SHAFT ASSY 300030461A | 44,89 € | |
| 21 | PIN FOR BRAKE ACTUATOR FORK 300031334A | 3,89 € | |
| 21 | PIN FOR BRAKE ACTUATOR FORK 10003800AB | Kysy saatavuus asiakaspalvelusta | |
| 22 | SPLIT PIN DIA 2*16 300031807A | 3,89 € | |
| 23 | HEX SCREW M8X1.25X12 8.8 SA3NS 20004356AA | 3,89 € | |
| 23 | CLUTCH SAFETY SWITCH 10056627AB | 59,89 € | |
| 24 | SAFETY SWITCH 10084733AA | 34,89 € | |
| 24 | PLUNGER SWITCH NO 300157154B | 59,89 € | |
| 25 | LUG ASSY 300030091A | 34,89 € | |
| 26 | SPRING COTTER SLEEVE(DIA 6X28) 20004150AA | 3,89 € | |
| 27 | BKT FOR TIE ROD 300030145A | 3,89 € |
