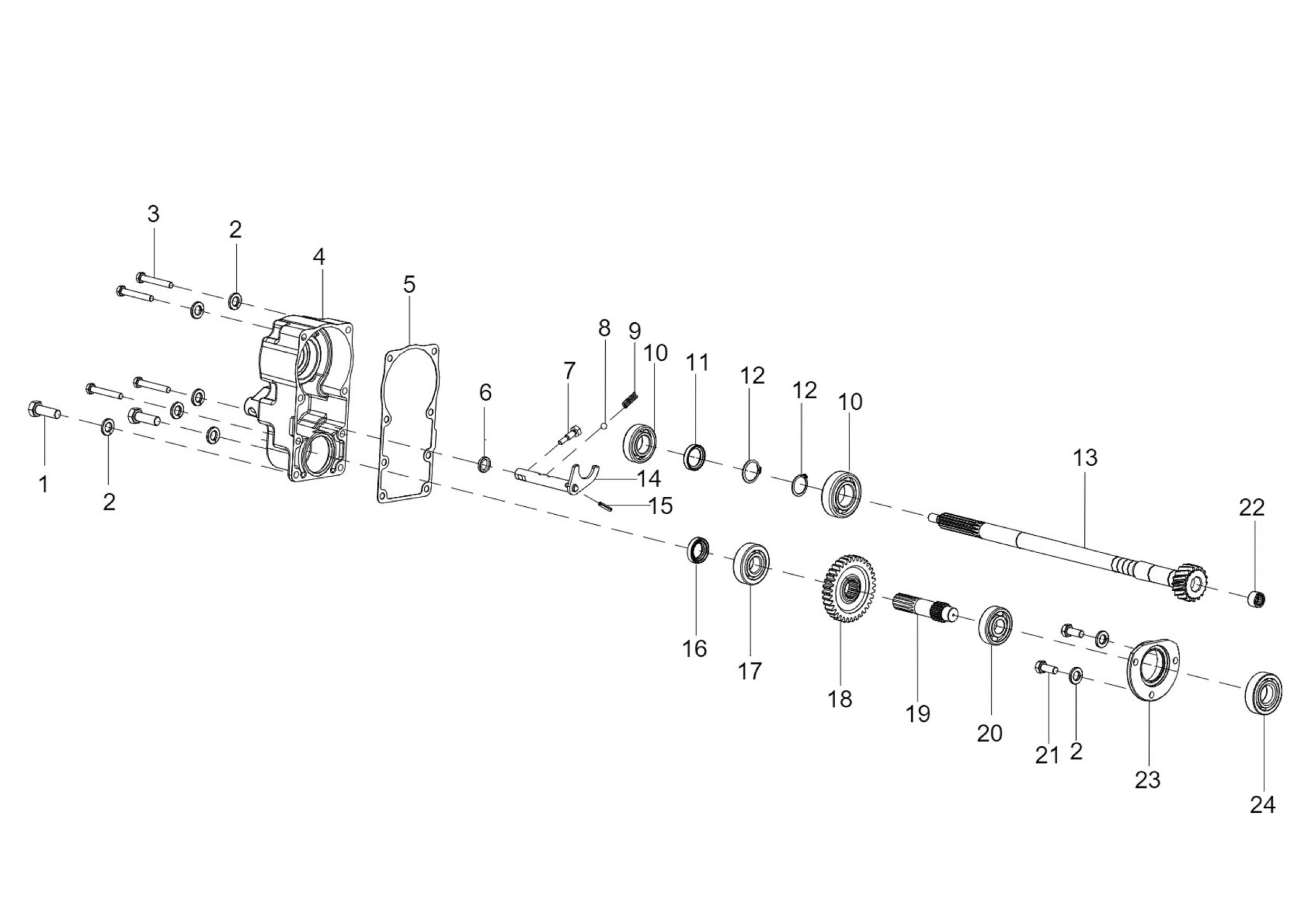

TM-2_INPUT SHAFT & 4WD SHAFT ASSY
S26- (6+2) SIDE SHIFT-05120A-1-1
1
HEX HEAD SCREW M8X1.25-25 -8.8 SA4GS
20005564AA | 2.49 € /kpl
2
SPRING WASHER B-8 TYPE-A IS:3063-1972
20003670AC | 2.90 € /kpl
2
SPRING WASHER B-8
4030400008 | 2.90 € /kpl
2
SPRING WASHER B-8 TYPE A IS:3067-1972
20005517AA | 2.90 € /kpl
3
HEX HEAD BOLT M8X1.25X55
20004136AA
4
BEARING HOUSING FRONT
10050746AF
4
BEARING HOUSING FRONT
10050746AG
4
BEARING HOUSING FRONT
10050746AH | 129.00 € /kpl
5
GASKET FOR BEARING HOUSING FRONT
10051200AB | 19.95 € /kpl
6
OIL SEAL (SHIFTER HOUSING)
10020828AB | 19.95 € /kpl
7
SHIFTER PIN FOR 4WD GEAR
10052380AB | 19.95 € /kpl
8
BALL 8 DIA GRADE 20 IS:2898
10020864AB | 19.95 € /kpl
9
SPRING (FOR 4WD)
10053731AA
9
SPRING (FOR GT 20 4WD)
300028591A | 19.95 € /kpl
10
BALL BEARING (6205)
20004119AA
10
BALL BRG (6205)
20004119AB | 19.95 € /kpl
11
OIL SEAL 35*25*7
20005056AA | 19.95 € /kpl
11
OIL SEAL 35*25*7
4070225035
12
EXTERNAL CIRCLIP A – 25
20004134AA | 19.95 € /kpl
13
INPUT SHAFT Z-17, L-504 (FINISH)
300069229A | 109.00 € /kpl
14
FORK ASSY 4WD
10050812AK | 19.95 € /kpl
15
COTTER SLEEVE Ø5*26(DIN:7346)LIGHT
20004313AA | 19.95 € /kpl
16
OIL SEAL 4D035022
20004156AB
17
BALL BEARING 63/22
20004122AA
17
BALL BRG 63/22
20004122AB | 19.95 € /kpl
18
FIXED GEAR Z-34 FOR 4WD
10050684AC | 44.90 € /kpl
19
SHAFT FOR 4WD
10050683AD | 27.90 € /kpl
20
BEARING 6304
20003477AA
20
BEARING 6304
20003477AB | 19.95 € /kpl
21
HEX. HEAD SCREW M8X1.25X20 8.8 SA4GS
200000430A | 2.49 € /kpl
21
HEX. HEAD SCREW M8 X 1.25 X 20 8-8 SA2JS
20001096AA | 2.49 € /kpl
21
HEX. HEAD SCREW M8 X 1.25 X 20 8-8 SA4JS
20001096AB | 2.49 € /kpl
21
HEX HEAD SCREW M8X1.25X20 -8.8 SA4GS
20005565AA | 2.49 € /kpl
22
NEEDLE BEARING JL – 108
20005052AA | 19.95 € /kpl
22
NEEDLE BEARING JL – 108
4001216021
23
BEARING HOUSING
10050685AE | 19.95 € /kpl
24
BALL BEARING LS10
20004368AC | 27.90 € /kpl
