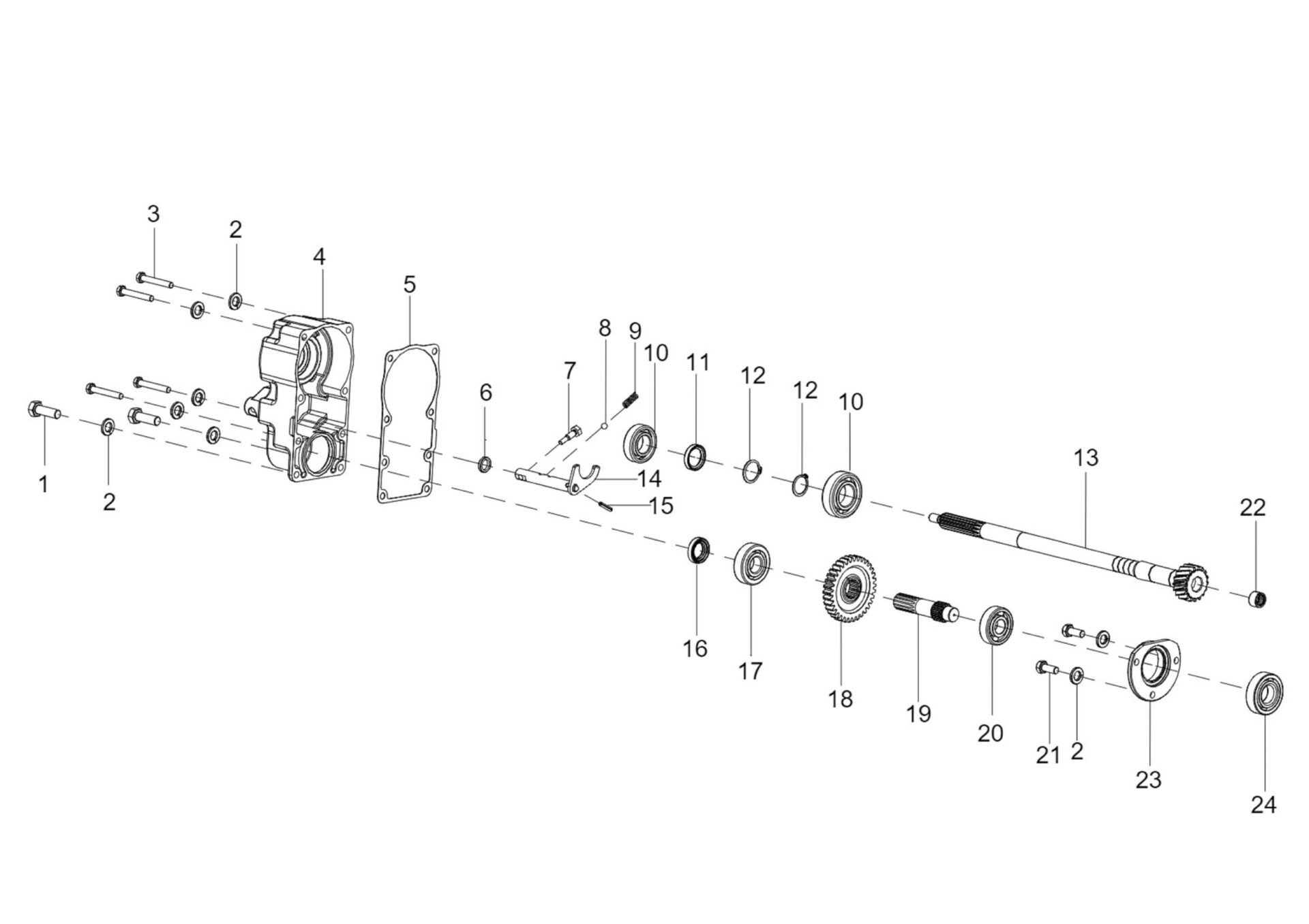

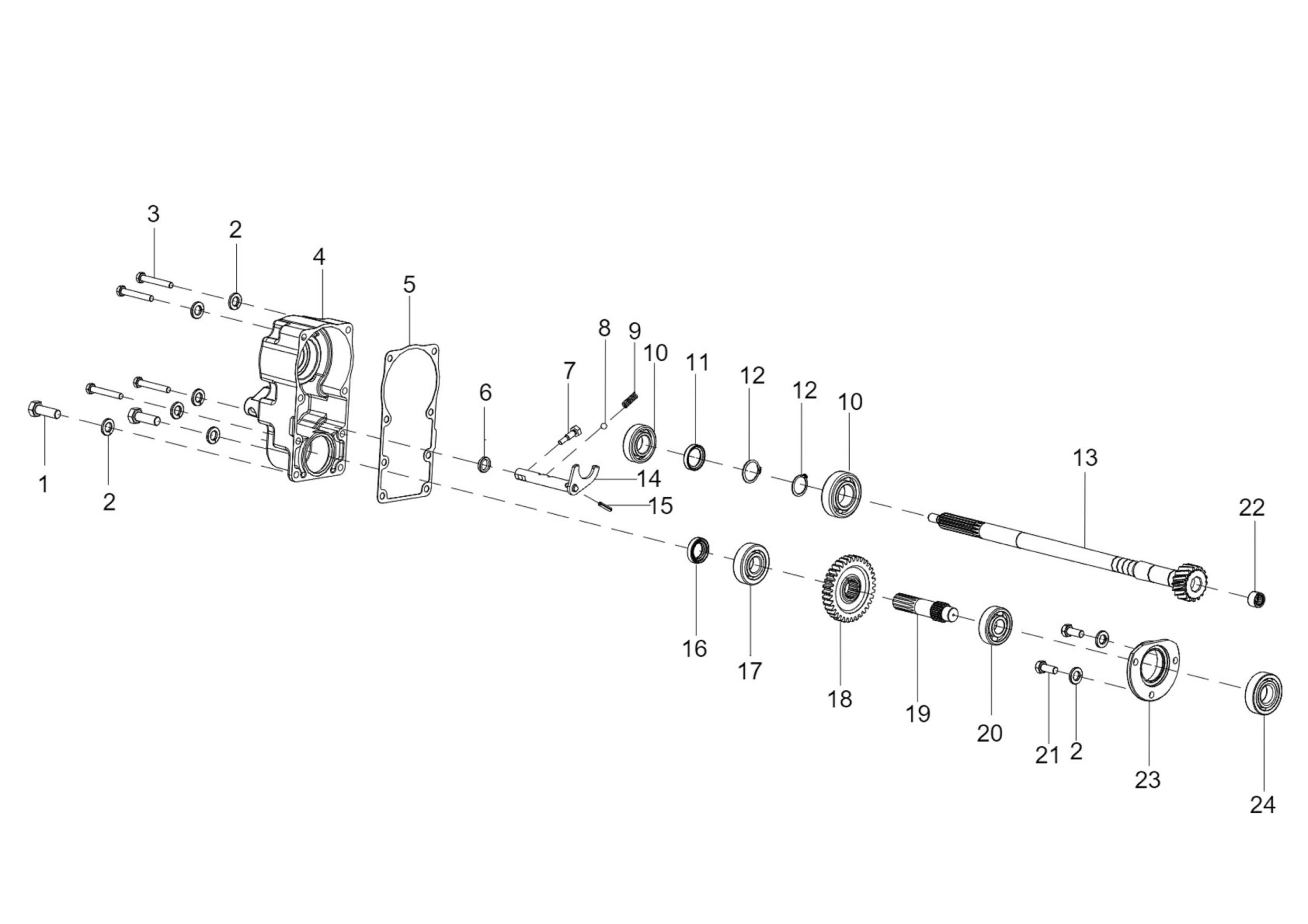

TM-2_INPUT SHAFT & 4WD SHAFT ASSY
S22- (ROPS)-05120A-1-1
1
HEX HEAD SCREW M8X1.25-25 -8.8 SA4GS
20005564AA | 2.49 € /kpl
2
SPRING WASHER B-8 TYPE A IS:3067-1972
20005517AA | 2.90 € /kpl
3
HEX HEAD BOLT M8X1.25X55
20004136AA
4
BEARING HOUSING FRONT
10050746AJ | 109.00 € /kpl
5
GASKET FOR BEARING HOUSING FRONT
10051200AB | 19.95 € /kpl
5
GASKET ( BEARING HSG FRONT)
10054280AB | 19.95 € /kpl
6
OIL SEAL (SHIFTER HOUSING)
10020828AB | 19.95 € /kpl
7
SHIFTER PIN FOR 4WD GEAR
10052380AB | 19.95 € /kpl
8
BALL 8 DIA GRADE 20 IS:2898
10020864AB | 19.95 € /kpl
9
SPRING (FOR GT 20 4WD)
300028591A | 19.95 € /kpl
10
BALL BRG (6205)
20004119AB | 19.95 € /kpl
11
OIL SEAL 35*25*7
4070225035
11
OIL SEAL 25*35*7(JKFENNER)
300176031A
12
EXTERNAL CIRCLIP A – 25
20004134AA | 19.95 € /kpl
13
INPUT SHAFT Z-16, L-504 (FINISH)
10056631AA | 109.00 € /kpl
14
FORK ASSY 4WD
10050812AK | 19.95 € /kpl
15
COTTER SLEEVE Ø5*26(DIN:7346)LIGHT
20004313AA | 19.95 € /kpl
16
OIL SEAL 4D035022
20004156AB
17
BALL BRG 63/22
20004122AB | 19.95 € /kpl
18
FIXED GEAR FOR 4WD (FINISH)
10056466AA | 44.90 € /kpl
18
FIXED GEAR Z-34 FOR 4WD
10050684AC | 44.90 € /kpl
19
SHAFT FOR 4WD
10050683AD | 27.90 € /kpl
20
BEARING 6304
20003477AB | 19.95 € /kpl
21
HEX. HEAD SCREW M8X1.25X20 8.8 SA4GS
200000430A | 2.49 € /kpl
21
HEX HEAD SCREW M8X1.25X20 -8.8 SA4GS
20005565AA | 2.49 € /kpl
22
NEEDLE BEARING JL – 108
20005052AA | 19.95 € /kpl
23
BEARING HOUSING
10050685AE | 19.95 € /kpl
24
BALL BEARING LS10
20004368AC | 27.90 € /kpl
