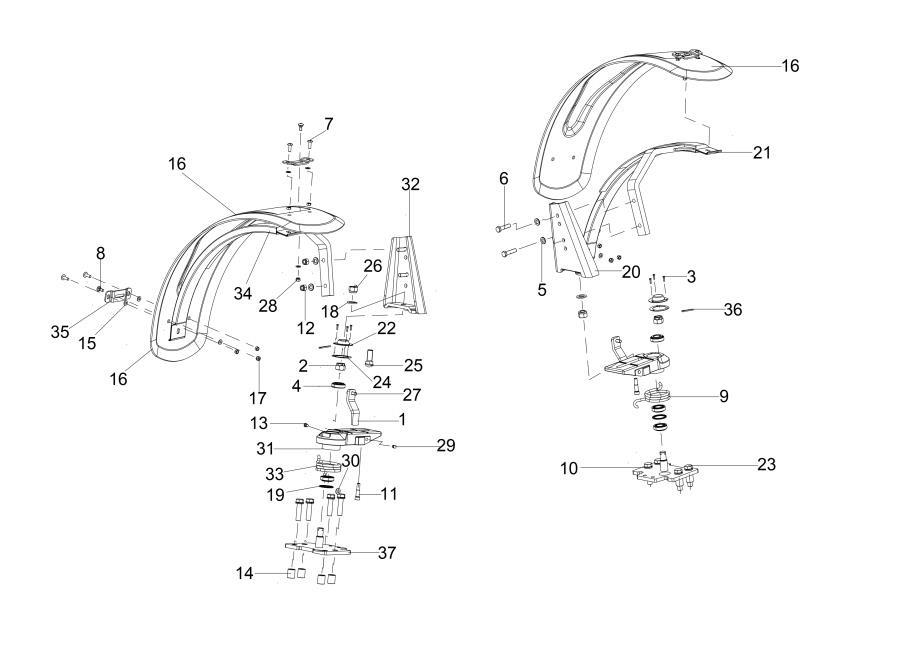

SM-17_MUDGUARD ASSY
S50- STAGE V-12150A-1-1
1
STOPPER PLATE
10082903AB | 19.95 € /kpl
2
CASTLE NUT M20X1.5 IS:2232
20005330AB | 2.49 € /kpl
3
SLOTTED CHEESE HD SCREW M4*15
300028650A | 2.49 € /kpl
4
TAPER ROLLER BEARING (TX-322005X)
20005026AB | 19.95 € /kpl
5
M/C WASHER DIA 13*DIA 24*2.5
20004940AB | 2.90 € /kpl
6
HEX BOLT M12*1.75*50 (GRADE 10.9)SA4NS
20004376AC | 19.95 € /kpl
7
CROSS SLOTTED TRUSS HEAD SCREW M8X25
10067946AB | 2.49 € /kpl
8
SPECIAL SQUARE NECK SCREW M8X20
10085186AA | 2.49 € /kpl
9
TORSIONAL SPRING LH
10082913AC | 19.95 € /kpl
10
SPRING WASHER B-16 TYPE-A IS:3063-1972
20004994AB | 2.90 € /kpl
11
STOPPER PIN
10086196AB | 19.95 € /kpl
12
HEX NYLOCK NUT
300031316A | 2.49 € /kpl
13
PROTECTION PLUG FOR M12
10071692AA | 19.95 € /kpl
14
SPACER
10082821AB | 19.95 € /kpl
15
PLAIN WASHER DIA 8.4 *DIA 17*1.6
4030600008 | 2.90 € /kpl
16
FRONT MUDGAURD (FINAL)
300183063A | 109.00 € /kpl
17
HEX NUT M8X1.25 -8 SA2JS
20003355AE | 2.49 € /kpl
18
PUNCHED WASHER A(20) IS:2016 STEEL
20005679AA | 2.90 € /kpl
19
RUBBER SEAL
20005027AB | 19.95 € /kpl
20
BASE FRAME ASSY FRONT MUDGUARD LH
10082783BB
21
FRONT MUDGAURD FRAME ASSY LH
300143674A | 84.90 € /kpl
22
DUST CAP
10086197AB | 19.95 € /kpl
23
HEX BOLT M16X2X65 8.8 SA4NS
300031136A | 19.95 € /kpl
24
GASKET (FOR MUDGUARD CAP)
10086301AB | 19.95 € /kpl
25
SPECIAL BOLT M18X1.5 – 10.9
20005342AA | 19.95 € /kpl
26
HEX NYLOC NUT M18X1.5 – 10 SA4GS
20005351AA | 2.49 € /kpl
27
HEX HEAD SCREW M10X1.5X30 -8.8 SA4GS
20005562AA | 2.49 € /kpl
28
HEX NYLOC NUT M8*1.25 8
20004917AB | 2.49 € /kpl
29
PROTECTION PLUG FOR M10
10071691AA | 19.95 € /kpl
30
M/CD WASHER 10.5*21*2
20005625AA | 2.90 € /kpl
31
BASE ASSY
10082899CA | 99.00 € /kpl
32
BASE FRAME ASSY RH
10082782BB
33
TORSIONAL SPRING RH
10082914AB
33
TORSIONAL SPRING RH
10082914AC | 19.95 € /kpl
34
FRONT MUDGAURD FRAME ASSY RH
300143558A | 84.90 € /kpl
35
MOUNTING PLATE FOR FRONT MUDGUARD
10085449AC | 19.95 € /kpl
36
SPLIT PIN DIA 4*40
20005449AA | 19.95 € /kpl
37
BASE PLATE ASSY
300140589A | 89.00 € /kpl
