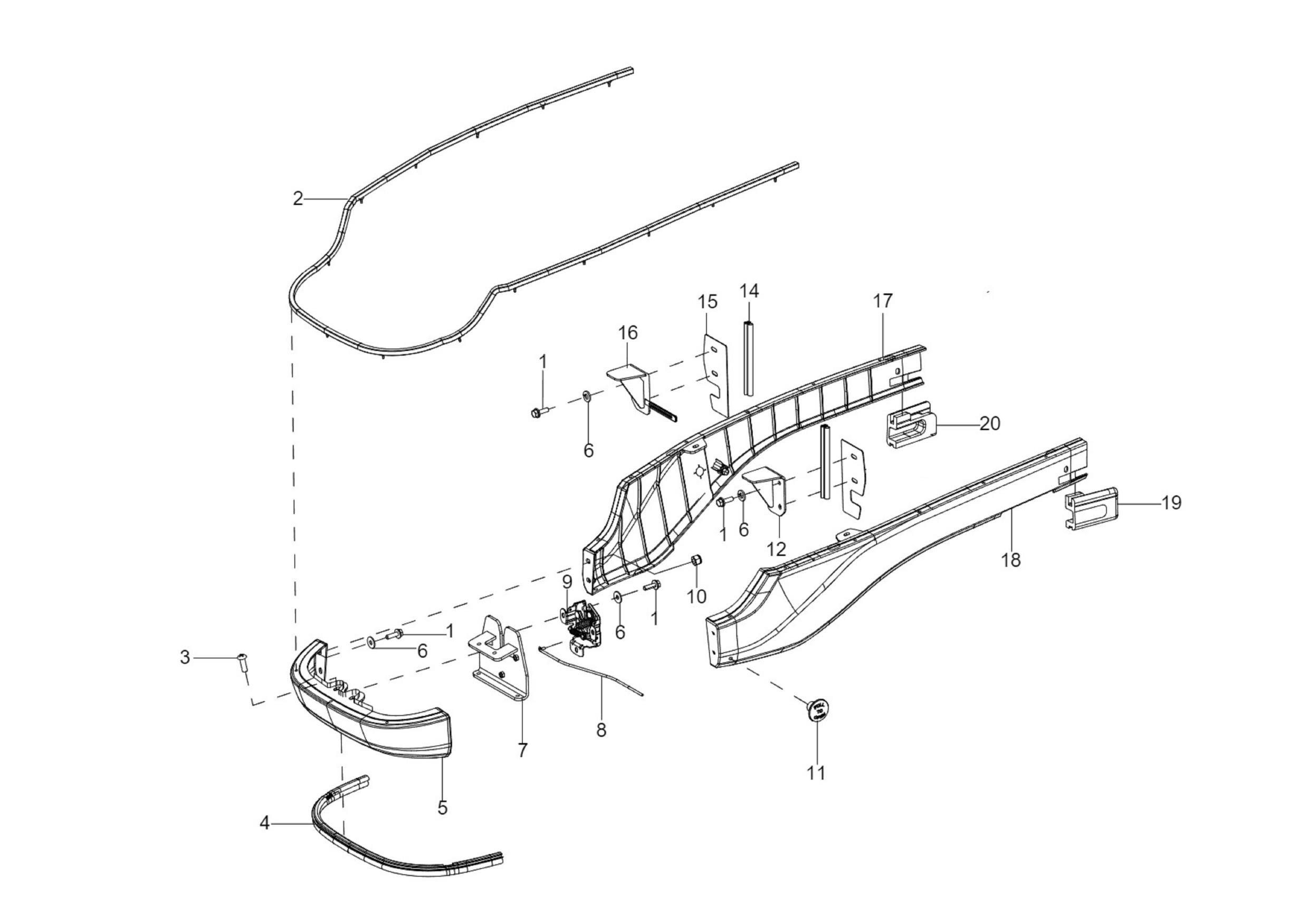

SM-1-3_BONNET ASSEMBLY
S26- (9+9) CABIN-15110A-3-4
1
HEX FLANGE SCREW M6*1*20 -8.8 SA4GS
20005541AA | 2.49 € /kpl
2
BEADING FOR CLADDING
10057565AC | 27.90 € /kpl
3
CROSS SLOTTED TRUSS HEAD SCREW M6X20
200000130A | 2.49 € /kpl
4
BONNET BEEDING LOWER
300246272A | 19.95 € /kpl
5
CLADDING FRONT
300339682A
6
WASHER A 6.4 IS:5370 STEEL (FOR EPA)
20005765AA | 2.90 € /kpl
7
BONNET LOCK MTG BRKT ASSY
300076306B
8
LOCK MOUNTING ROD EPA
300009628A
9
LOCK ASSY
10057527AA | 27.90 € /kpl
10
HEX NYLOC NUT M6 8
20004915AB | 2.49 € /kpl
11
KNOB FOR BONNET LOCK
300027891B | 19.95 € /kpl
12
GROMET RESTING BRKT LH
10057555AA | 19.95 € /kpl
14
BEADING RADIATOR SIDE SEALING LOWER
10057567AB | 19.95 € /kpl
14
BEADING RADIATOR SIDE SEALING UPPER
10086022AC | 19.95 € /kpl
15
HARNESS GUIDE FRONT
300131849D
16
GROMMET RESTING BKT ASSY RH
300133444A | 19.95 € /kpl
17
SIDE CLADDING ASSY. RH
300340730A
18
SIDE CLADDING ASSY. LH
300340725A
19
CLADDING GROMMET LH
300035530A | 19.95 € /kpl
20
CLADDING GROMMET RH
300035529A | 19.95 € /kpl
