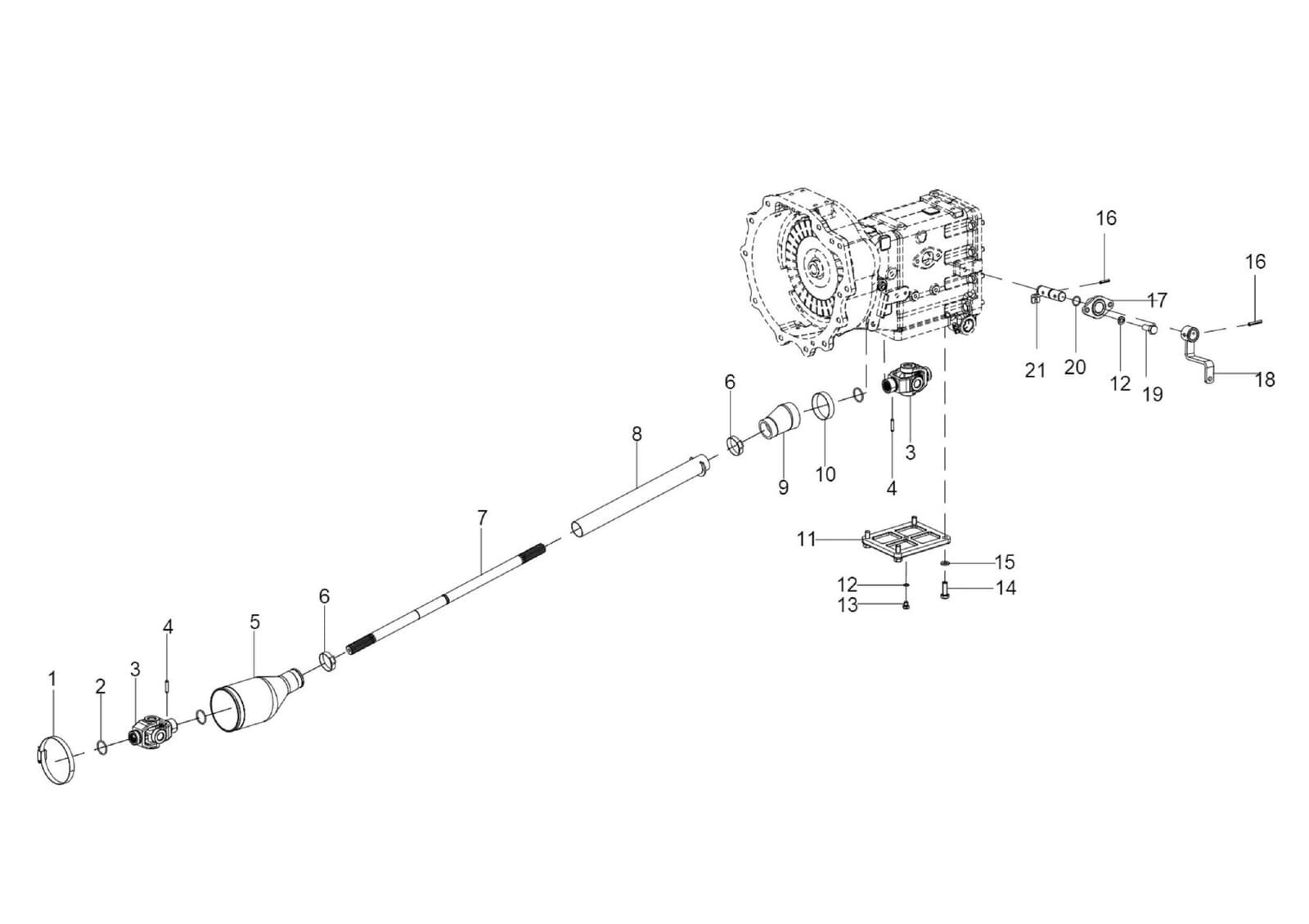

TM-2-1_CLUTCH & PROPELLER SHAFT ASSY (PADDY)
Osaluettelo
| Nro | Osa | Hinta | Osta |
|---|---|---|---|
| 1 | HOSE WORM CLAMPS 20003978AC | 3,89 € | |
| 2 | SNAP RING FOR SHAFT DIA 32 ( DIN 7993) 20004355AD | 3,89 € | |
| 3 | UNIVERSAL JOINT ASSY. 10051224AF | 159,00 € | |
| 4 | DOWEL PIN (6X28) FOR UNIVERSAL JOINT & FRONT PTO 10052452AA | 3,89 € | |
| 5 | UJ COVER FRONT AXLE 300155182A | 14,34 € | |
| 6 | HOSE WORM CLAMP 38X50 IS:4762 20003659AB | 3,89 € | |
| 8 | PTO GUARD ASSY PADDY 300175914A | 11,38 € | |
| 9 | PROPELLER SHAFT COVER 300155205A | 5,36 € | |
| 10 | HOSE WARM CLIP DIA 70 20003662AB | 3,89 € | |
| 11 | COVER PLATE 300162616A | Kysy saatavuus asiakaspalvelusta | |
| 12 | SEALING WASHER 8X12 10051938AA | 3,89 € | |
| 13 | LOCKING SCREW M8X1X10 10052418AA | 2,49 € | |
| 14 | HEX HEAD SCREW M10X1.5X30 -8.8 SA4GS 20005562AA | 3,89 € | |
| 15 | SPRING WASHER B-10 TYPE A IS:3067-1972 20005518AA | 3,89 € | |
| 16 | COTTER SLEEVE Ø5*26(DIN:7346)LIGHT 20004313AA | 3,89 € | |
| 17 | BRACKET 10050809AB | 34,89 € | |
| 18 | LEVER LUG ASSY 10053406AB | 29,89 € | |
| 19 | HEX HEAD SCREW M8X1.25X20 -8.8 SA4GS 20005565AA | 3,89 € | |
| 20 | O-RING Ø18 X Ø2.0 20004142AD | 3,89 € | |
| 21 | ACTUATING LUG ASSY 10053407AD | 34,89 € |
