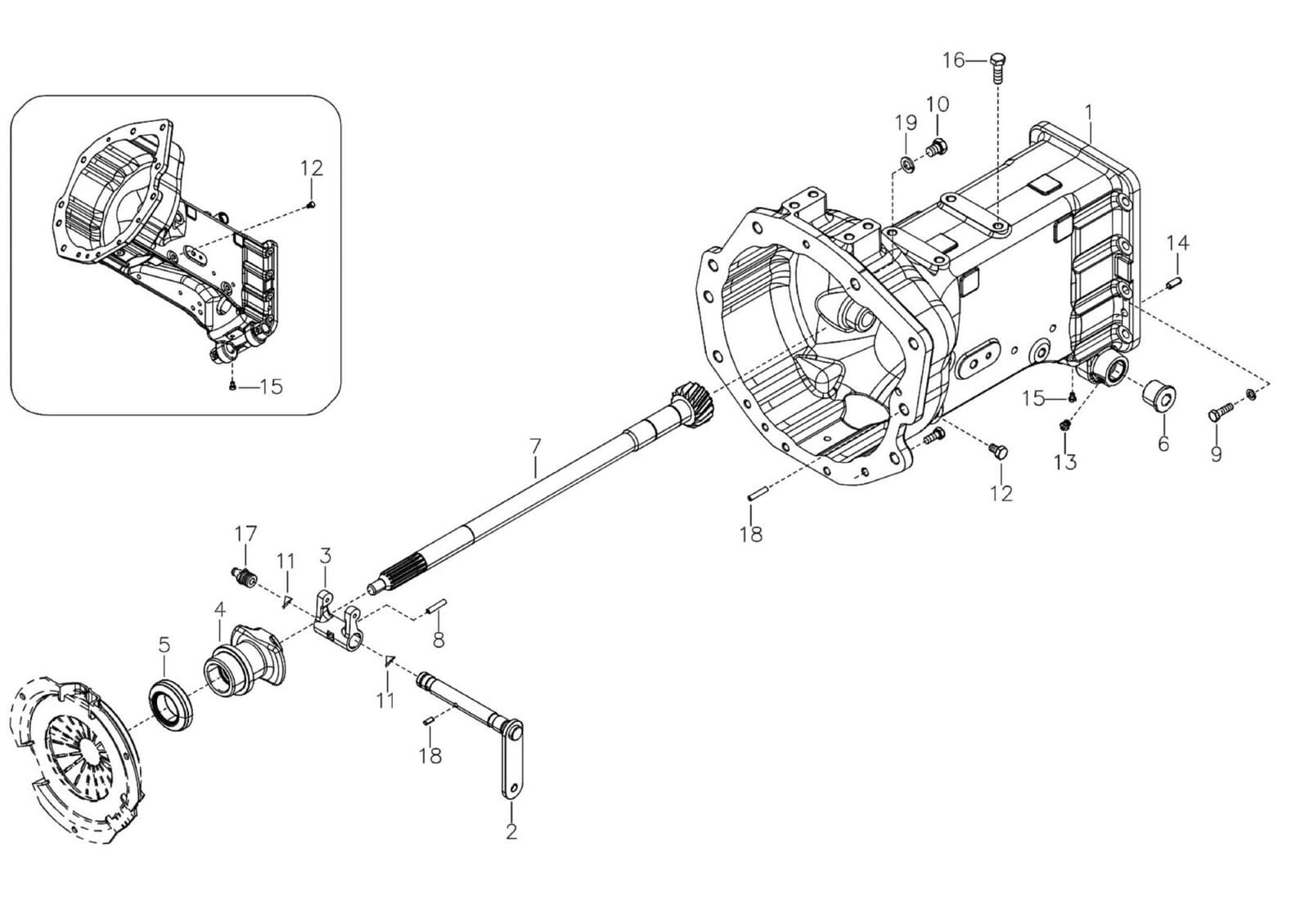

TM-1_CLUTCH ASSY.
Osaluettelo
| Nro | Osa | Hinta | Osta |
|---|---|---|---|
| 1 | CLUTCH HOUSING ASSY. 10055992AD | 599,00 € | |
| 1 | CLUTCH HOUSING ASSY. 10055992AD | 599,00 € | |
| 2 | C.A. SHAFT ASSY. 10050720AE | 34,89 € | |
| 2 | C.A. SHAFT ASSY. 300190348B | Kysy saatavuus asiakaspalvelusta | |
| 3 | C.A.FORK 10050721AE | 44,89 € | |
| 4 | INNER BUSH ASSY 300274099A | Kysy saatavuus asiakaspalvelusta | |
| 5 | CLUTCH RELEASE BEARING TG 1956/1 GT4WD 20004566AB | 59,89 € | |
| 6 | BUSH 10055984AA | Kysy saatavuus asiakaspalvelusta | |
| 7 | INPUT SHAFT Z-15 L-512 10053582AB | 159,00 € | |
| 8 | SPRING COTTER SLEEVE(DIA 6X28) 20004150AA | 3,89 € | |
| 9 | HEX HEAD SCREW M10X1.5X25 SA4GS 20005553AA | 3,89 € | |
| 10 | HEX SCREW M12X1.25X15 20004135AA | 2,49 € | |
| 11 | O-RING Ø15.6 X Ø2.3 20004144AC | 3,89 € | |
| 12 | HEX SCREW M6*10 20000104AA | 2,49 € | |
| 12 | HEX SCREW M6X10 8.8 SA2JS 20005573AA | 3,89 € | |
| 12 | HEX SCREW M6X10 8.8 SA2JS 20005573AA | 3,89 € | |
| 13 | CONICAL HEAD GRESE NIPPLE B M8X1 IS:4009 20003460AC | 3,89 € | |
| 13 | GREASE NIPPLE WITH CAP M8*1 4043200008 | 19,95 € | |
| 14 | DOWEL PIN (8X15) 10051264AB | 3,89 € | |
| 15 | LOCKING SCREW M8X1X10 10052418AA | 2,49 € | |
| 15 | HEX HEAD SCREW M8X1X10 20005638AA | 2,49 € | |
| 16 | HEX SCREW *M10*1.25X25 723402110A | 2,49 € | |
| 16 | HEX HEAD SCREW M10X1.5X30 -8.8 SA4GS 20005562AA | 3,89 € | |
| 17 | GREASE NIPPLE M6X1 20004029AA | 3,89 € | |
| 18 | CYD. PIN DIA6 R5 X 20 20002912AA | 3,89 € | |
| 18 | DOWEL PIN 10009797AA | 3,89 € | |
| 19 | SPRING WASHER B-12TYPE-A IS:3063-1972 20004993AB | 3,89 € |
