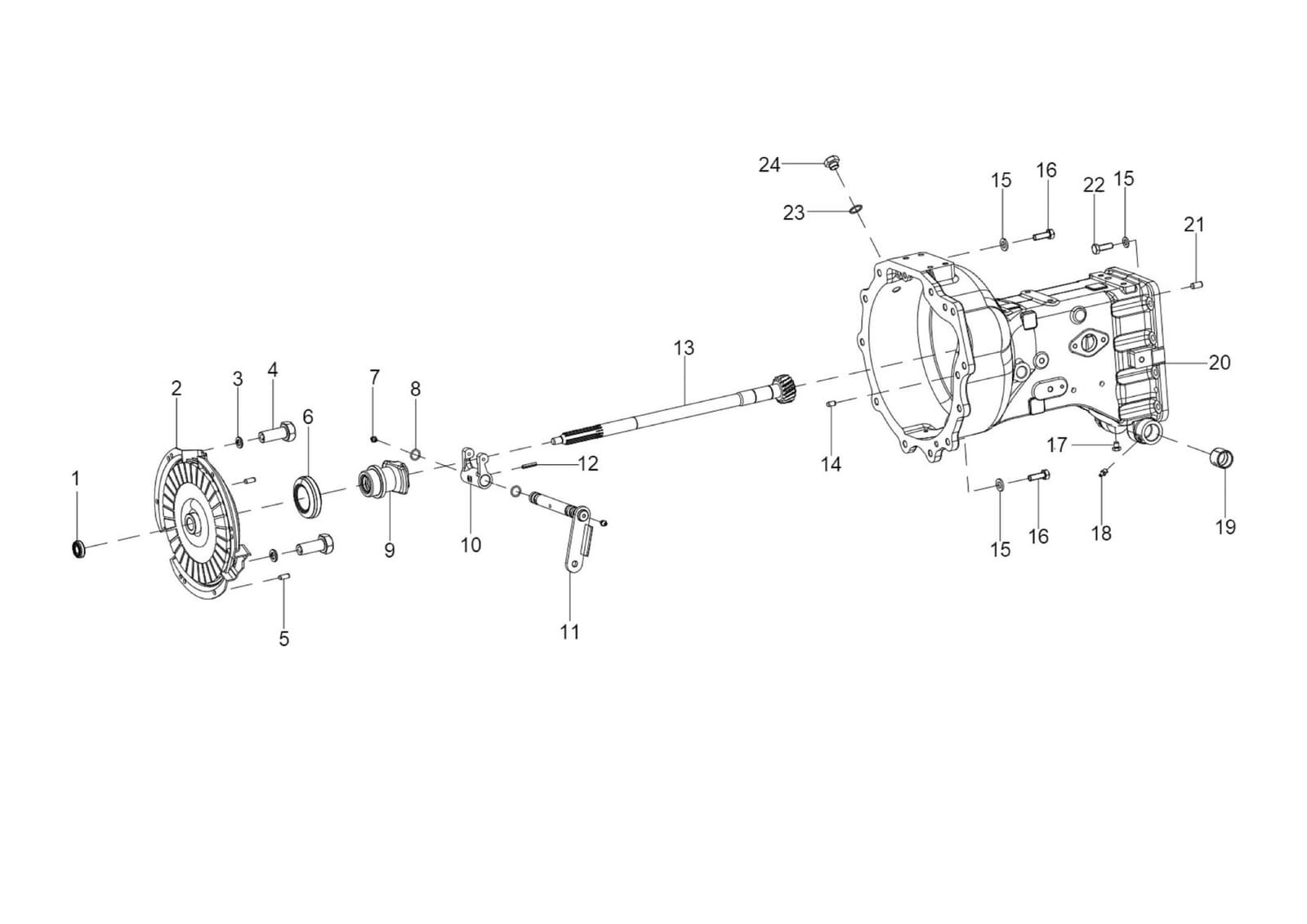

TM-1-2_CLUTCH & PROPELLER SHAFT ASSY
Osaluettelo
| Nro | Osa | Hinta | Osta |
|---|---|---|---|
| 1 | BALL BEARING 6001 ZZ 20004297AB | Kysy saatavuus asiakaspalvelusta | |
| 1 | BALL BEARING 6001 ZZ 20004297AC | 34,89 € | |
| 2 | SINGLE CLUTCH ASSY 10052693AC | 448,99 € | |
| 3 | SPRING WASHER B-8 4030400008 | 2,90 € | |
| 3 | SPRING WASHER B-8 TYPE A IS:3067-1972 20005517AA | 3,89 € | |
| 3 | SPRING WASHER B-8 TYPE-A IS:3063-1972 20003670AC | 3,89 € | |
| 4 | HEX HEAD SCREW M8X1.25X20 -8.8 SA4GS 20005565AA | 3,89 € | |
| 5 | DOWEL (7.7X20) 10053429AA | 3,89 € | |
| 6 | CLUTCH RELEASE BEARING TG 1956/1 GT4WD 20004566AA | Kysy saatavuus asiakaspalvelusta | |
| 6 | CLUTCH RELEASE BEARING TG 1956/1 GT4WD 20004566AB | 59,89 € | |
| 7 | GREASE NIPPLE M6X1 20004029AA | 3,89 € | |
| 8 | O-RING 15.6 X 2.3 20004144AA | Kysy saatavuus asiakaspalvelusta | |
| 8 | O-RING Ø15.6 X Ø2.3 20004144AB | Kysy saatavuus asiakaspalvelusta | |
| 8 | O-RING Ø15.6 X Ø2.3 20004144AC | 3,89 € | |
| 9 | INNER BUSH ASSY 10051245BA | 44,89 € | |
| 9 | INNER BUSH ASSY 300274099A | Kysy saatavuus asiakaspalvelusta | |
| 10 | C.A.FORK 10050721AE | 44,89 € | |
| 11 | C.A.SHAFT ASSY 300190266A | 19,95 € | |
| 12 | SPRING COTTER SLEEVE DIA 5 *15 4010305015 | 19,95 € | |
| 12 | SPRING COTTER SLEEVE(DIA 6X28) 20004150AA | 3,89 € | |
| 13 | INPUT SHAFT Z-16, L-504 (FINISH) 10056631AA | 128,99 € | |
| 13 | INPUT SHAFT Z-17, L-504 (FINISH) 300069229A | 128,99 € | |
| 14 | DOWEL (8X15) 10052662AA | 3,89 € | |
| 14 | CYD. PIN DIA6 R5 X 20 20002912AA | 3,89 € | |
| 15 | SPRING WASHER B-10 4030400010 | 2,90 € | |
| 15 | SPRING WASHER B-10 TYPE-A IS:3063-1972 20003671AC | 2,90 € | |
| 15 | SPRING WASHER B-10 TYPE A IS:3067-1972 20005518AA | 3,89 € | |
| 16 | HEX HEAD SCREW M10X1.25X30 -8.8 SA4GS 20005555AA | 3,89 € | |
| 16 | HEX HEAD SCREW M10X1.25X30 8.8 SA2J 20004582AA | 2,49 € | |
| 16 | HEX SCREW M10X1.25 -8.8 SA3NS 20004078AB | 2,49 € | |
| 17 | LOCKING SCREW M8X1X10 10052418AA | 2,49 € | |
| 17 | LOCKING SCREW M8X1X10 10052418AB | 2,49 € | |
| 17 | HEX HEAD SCREW M8X1X10 20005638AA | 2,49 € | |
| 18 | CONICAL HEAD GRESE NIPPLE B M8X1 IS:4009 20003460AC | 3,89 € | |
| 19 | BUSH 10053739AC | 29,89 € | |
| 20 | CLUTCH HOUSING ASSY. EEC 10055983AA | Kysy saatavuus asiakaspalvelusta | |
| 20 | CLUTCH HOUSING ASSY. EEC 10055983AC | 649,00 € | |
| 20 | CLUTCH HOUSING ASSY. EEC 10055983AF | 649,00 € | |
| 21 | DOWEL PIN 10009797AA | 3,89 € | |
| 21 | DOWEL PIN (8X15) 10051264AB | 3,89 € | |
| 22 | HEX HEAD SCREW M10X1.5X30 -8.8 SA4GS 20005562AA | 3,89 € | |
| 23 | SEALING WASHER DIA 16.2* DIA 20 * 1.5 4030216020 | 2,90 € | |
| 23 | BONDED SEAL FOR M16 300430688A | Kysy saatavuus asiakaspalvelusta | |
| 24 | SEALING PLUG M16*1.5 10000257AB | 3,89 € |
