Solis

ST-2_STEERING ASSY-RANE

Malli: Solis 16 4wd Osaryhmä: Steering

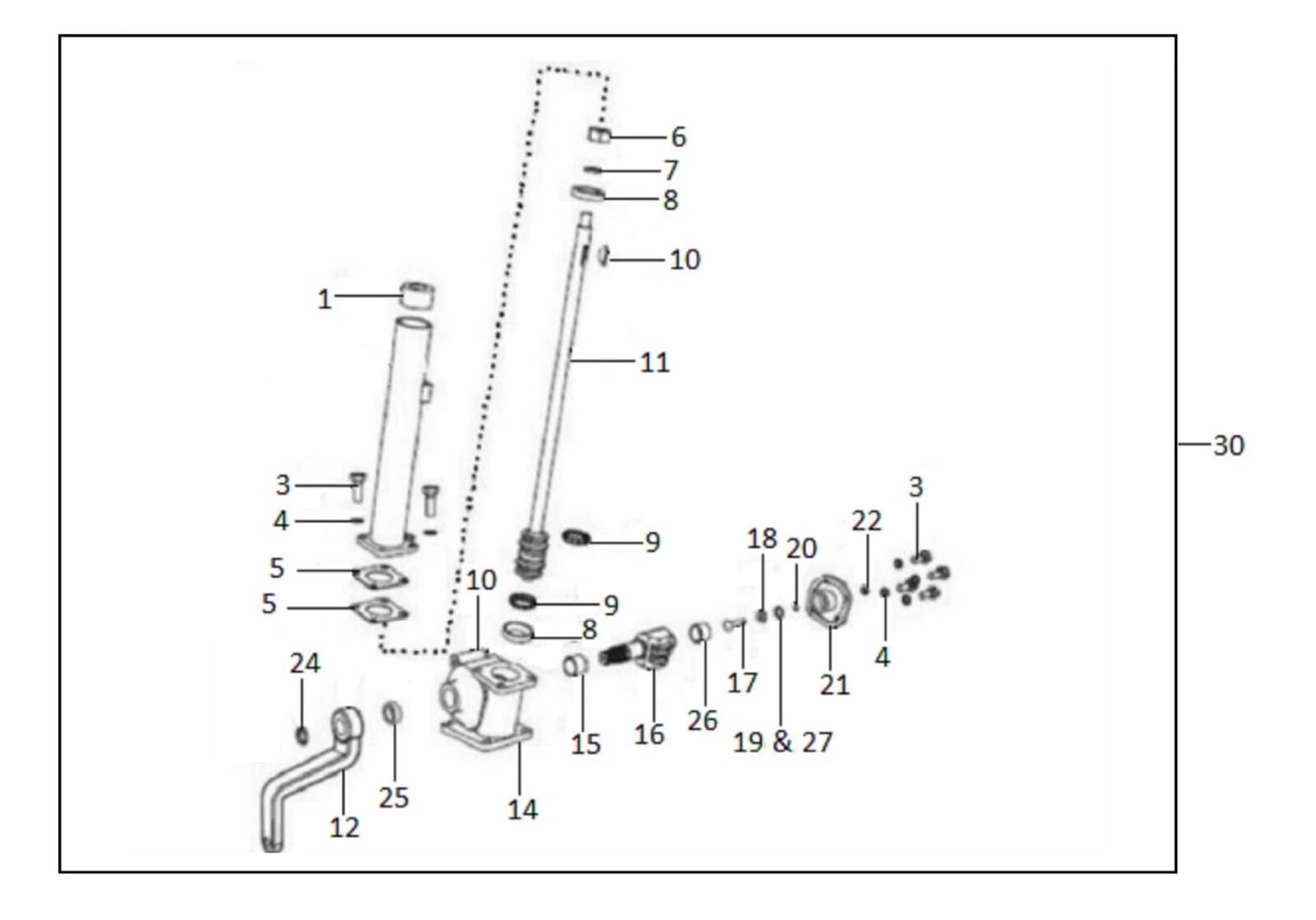

ST-2_STEERING ASSY-RANE Avaa kuva suurempana

Osaluettelo

Nro Osa Hinta Osta
1 RUBBER BUSH 332203691 10012587AA 19,95 €
3 SPRING WASHER M8 SW312 3021001901 10012589AA 2,90 €
4 BOLT (M8*1.25*30MM LONG) 3010028901 10012590AA 19,95 €
5 SHIM 3327314901 10012591AA 19,95 €
5 SHIM 332731690 10012592AA 19,95 €
5 SHIM 332731390 10012593AA 19,95 €
6 LOCK NUT 3002124901 10012594AA 3,89 €
7 OIL SEAL 3017003901 10012595AA 19,95 €
8 BEARING 6304 3315705901 10012596AA 27,90 €
9 TATA ACE BALL BEARING 6303 3315704901 10012597AA 27,90 €
10 OIL PLUG PLATED 3317021901 10012598AA 19,95 €
11 ICMN ASSEMBLY - ITL SONALIKA_GARDEN TRAC 237824291 10012600AA 198,99 €
12 DROP ARM - MACHINED 331224091 10012601AA 189,00 €
14 BOX SUB ASSEMBLY 230124491 10012602AA 189,00 €
15 CINTERED BUSH 3318214901 10012603AA 19,95 €
16 ROCKER SHAFT - SUB ASSEMBLY 230522691 10012604AA 189,00 €
17 ADJUSTER - VST 3311025901 10012605AA 19,95 €
18 SPACER ROCKER SHAFT (W R) 3316006901 10012606AA 19,95 €
19 SHIM (0.008 ) R S - ETL 3327211901 10012607AA 19,95 €
20 INT.CIRCLIP 3025001901 10012608AA 19,95 €
21 COVER PLATE SUB ASSEMBLY 230922191 10012609AA 44,90 €
22 LOCK NUT (ADJUSTER) W R(ETL ADJUSTER NUT 3002002901 10012610AA 2,49 €
24 SP.WASHER 3021008901 10012612AA 2,90 €
25 DUST SEAL 3331018901 10012613AA 3,89 €
26 BUSH 3318216901 10012614AA 19,95 €
27 SHIM (0.003 ) R S 3327214901 10012615AA 19,95 €
29 BOLT 3010041901 10012616AA 19,95 €
30 STEERING COLUMN ASSY. (RANE) 10053244AA 448,99 €
