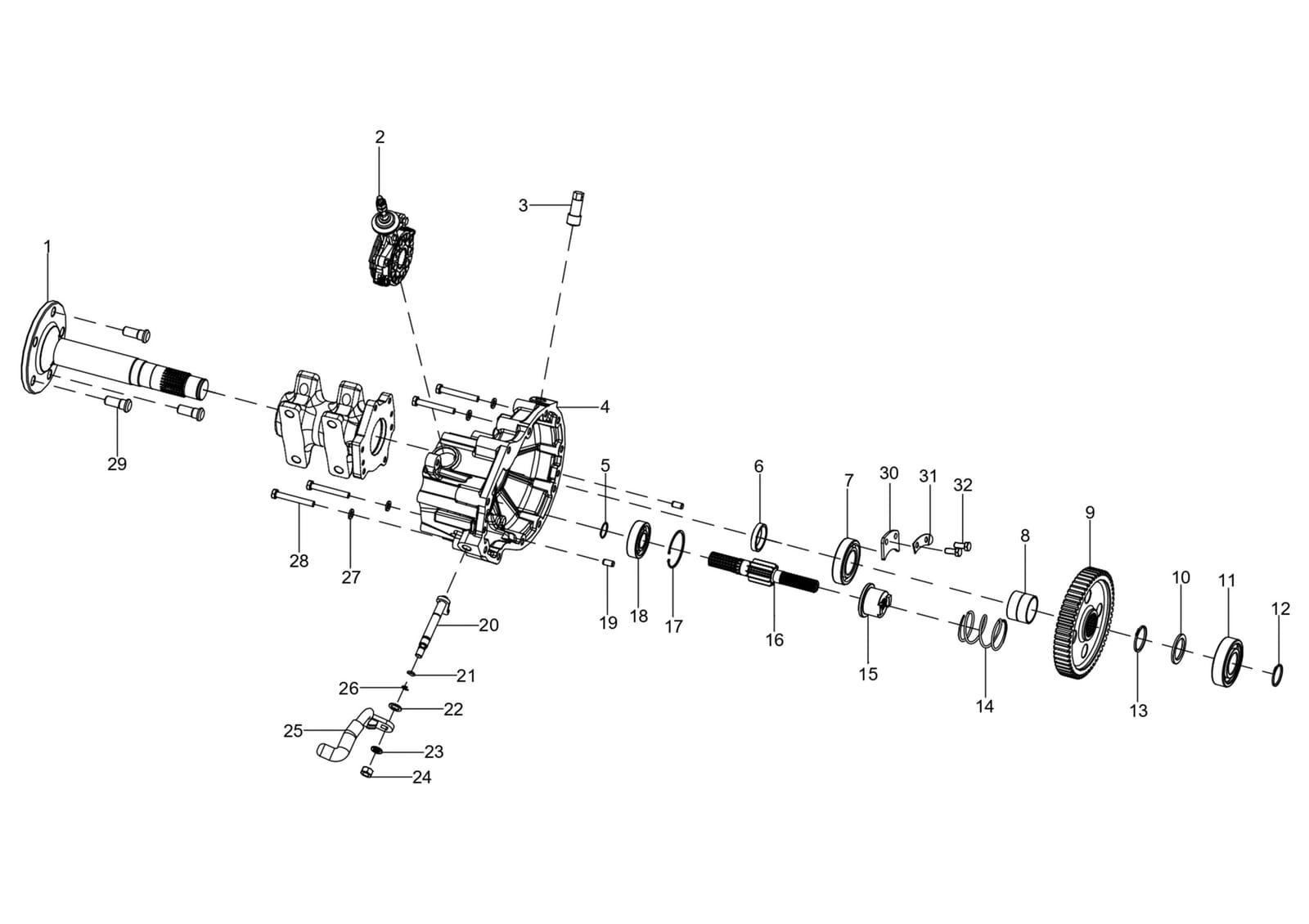

RA-1_BP SHAFT, BULL GEAR & REAR AXLE ASSY
Osaluettelo
| Nro | Osa | Hinta | Osta |
|---|---|---|---|
| 1 | REAR AXLE 10050717BB | 248,99 € | |
| 2 | OIB BRAKE ASSY (JMFT) ZCI 300123222B | Kysy saatavuus asiakaspalvelusta | |
| 3 | DRAIN PLUG ASSEMBLY. 10024016AC | Kysy saatavuus asiakaspalvelusta | |
| 3 | DRAIN PLUG ASSEMBLY. 10024016AD | 29,89 € | |
| 4 | BRAKE HOUSING FINISH 10053421AD | Kysy saatavuus asiakaspalvelusta | |
| 4 | BRAKE HOUSING LEFT 10052487AD | Kysy saatavuus asiakaspalvelusta | |
| 4 | BRAKE HOUSING LEFT 10052487AE | Kysy saatavuus asiakaspalvelusta | |
| 4 | BRAKE HOUSING LEFT 10052487AF | 448,99 € | |
| 4 | BRAKE HOUSING LEFT 300123041C | 199,00 € | |
| 4 | BRAKE HOUSING LEFT 300123041D | Kysy saatavuus asiakaspalvelusta | |
| 5 | EXTERNAL CIRCLIP A-28 20004276AA | 3,89 € | |
| 6 | CASSETTE SEAL TCWN00061(45X65X12) (PADDY 10055389AC | 34,89 € | |
| 6 | CASSETTE SEAL (48x65x11.5) FOR PADDY RAE 10055389AD | 17,53 € | |
| 7 | BALL BEARING 6209 20005055AA | 44,89 € | |
| 7 | DEEP GROOVE BALL BEARING 6209 4000145085 | Kysy saatavuus asiakaspalvelusta | |
| 8 | SPACER BIG (REAR AXLE) 10050718AB | 34,89 € | |
| 9 | G.T BULL GEAR 10050719AD | 248,99 € | |
| 10 | SPACER SMALL REAR AXLE 10096266AB | 29,89 € | |
| 11 | BALL BEARING 6308NR 20003880AA | 59,89 € | |
| 12 | EXTERNAL CIRCLIP 40X2.5 H IS:3075 20004351AA | 3,89 € | |
| 13 | EXTERNAL CIRCLIP A-35 4020200035 | 19,95 € | |
| 14 | SPRING DIFF LOCK 10050749AB | 3,89 € | |
| 15 | SLEEVE DIFF LOCK 10050734AB | 59,89 € | |
| 16 | BP SHAFT LEFT FINISH 10052712AD | 79,89 € | |
| 16 | B.P. SHAFT RIGHT 10052717AD | 79,89 € | |
| 17 | INTERNAL CIRCLIP B-68 IS:3075 20004275AA | 3,89 € | |
| 18 | BALL BEARING 63/28 20004125AB | 59,89 € | |
| 19 | DOWEL PIN (8X15) 10051264AB | 3,89 € | |
| 20 | LUG DIFF LOCK ASSY 10050750AC | 34,89 € | |
| 20 | LUG DIFF LOCK ASSY 10050750AD | 14,27 € | |
| 21 | O-RING Ø10.6X Ø2.3 20004141AC | 3,89 € | |
| 22 | WASHER (DIFF. LOCK) 10051239AB | 3,89 € | |
| 23 | SPRING WASHER B-12TYPE-A IS:3063-1972 20004993AB | 3,89 € | |
| 24 | HEX NUT M12x1.75 -10 SA4GS 200008986A | Kysy saatavuus asiakaspalvelusta | |
| 24 | HEX NUT M12X1.75 -8 SA4GS 20003358AE | 3,89 € | |
| 25 | DIFFERENTIAL LOCK PEDAL 10053405AB | Kysy saatavuus asiakaspalvelusta | |
| 25 | DIFFERENTIAL LOCK PEDAL ASSY 10053405AF | 34,89 € | |
| 25 | DIFF LOCK PADEL ASSY-SIDE SHIFT 300270027B | Kysy saatavuus asiakaspalvelusta | |
| 26 | CIRCLIP C-12 4020400012 | 19,95 € | |
| 27 | SPRING WASHER B-10 TYPE A IS:3067-1972 20005518AA | 3,89 € | |
| 28 | HEX HEAD BOLT M10X1.5X75 20004139AA | 19,95 € | |
| 29 | WHEEL BOLT FRONT 20005630AA | 3,89 € | |
| 29 | WHEEL BOLT FRONT 10004041AA | Kysy saatavuus asiakaspalvelusta | |
| 29 | WHEEL BOLT FRONT 10004041AB | Kysy saatavuus asiakaspalvelusta | |
| 30 | BEARING LOCKING PLATE 300755349AA | Kysy saatavuus asiakaspalvelusta | |
| 31 | LOCKING WASHER 300755924AA | Kysy saatavuus asiakaspalvelusta | |
| 32 | HEX. HEAD BOLT M8 X 1.25-20 8-8 SA4GS 300028644A | 3,89 € |
