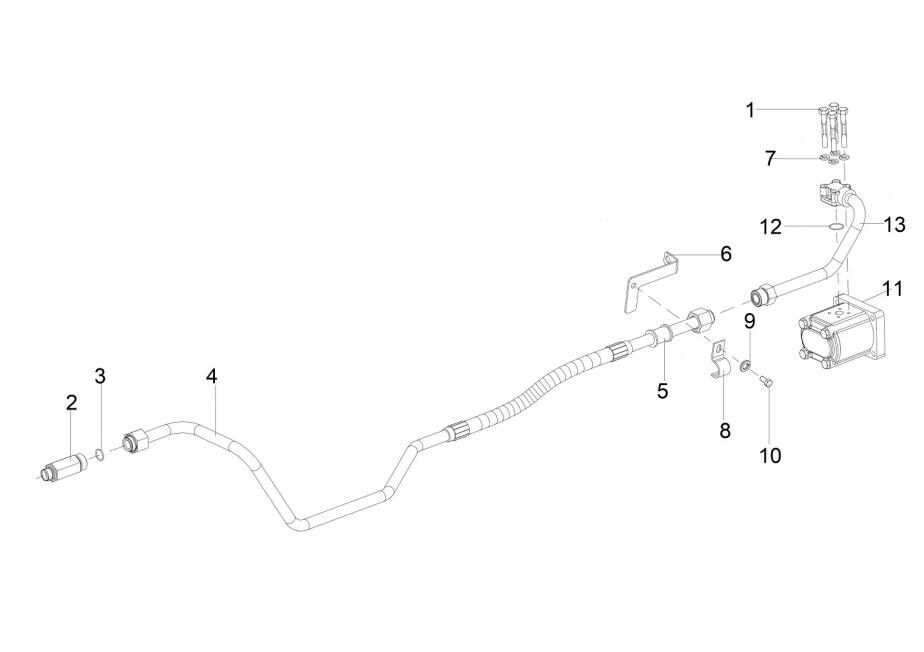

HY-7_DELIVERY LINE (PUMP TO LIFT)
Osaluettelo
| Nro | Osa | Hinta | Osta |
|---|---|---|---|
| 1 | HEX BOLT M6*45 4040706045 | 19,95 € | |
| 2 | ORFS CONNECTION M22X1.5 / 1 3/16-12 UNF 10068285AA | 34,89 € | |
| 3 | O-RING 18.77X1.78 10065893AB | 3,89 € | |
| 4 | SEC PIPE FROM PUMP TO LIFT 300282282A | 189,00 € | |
| 5 | VIBRATION DAMPER D20X32 10081598AB | 3,89 € | |
| 6 | CLAMP ASSY FOR PIPE PUMP TO LIFT 300182530A | 19,95 € | |
| 7 | SPRING WASHER B-6 TYPE A IS:3067-1972 20005516AA | 3,89 € | |
| 8 | CLAMP CURVE 300002216A | 3,89 € | |
| 9 | SPRING WASHER B-8 TYPE-A IS:3063-1972 20003670AC | 3,89 € | |
| 10 | HEX SCREW M8X16 20005572AA | 3,89 € | |
| 11 | HYD PUMP-25CC REXROTH 300117843C | 448,99 € | |
| 12 | O-RING (DIA 23.5*1.78) 10007240AC | 3,89 € | |
| 13 | PIPE ASSEMBLY WITH ADOPTER 300281901A | 59,89 € |
