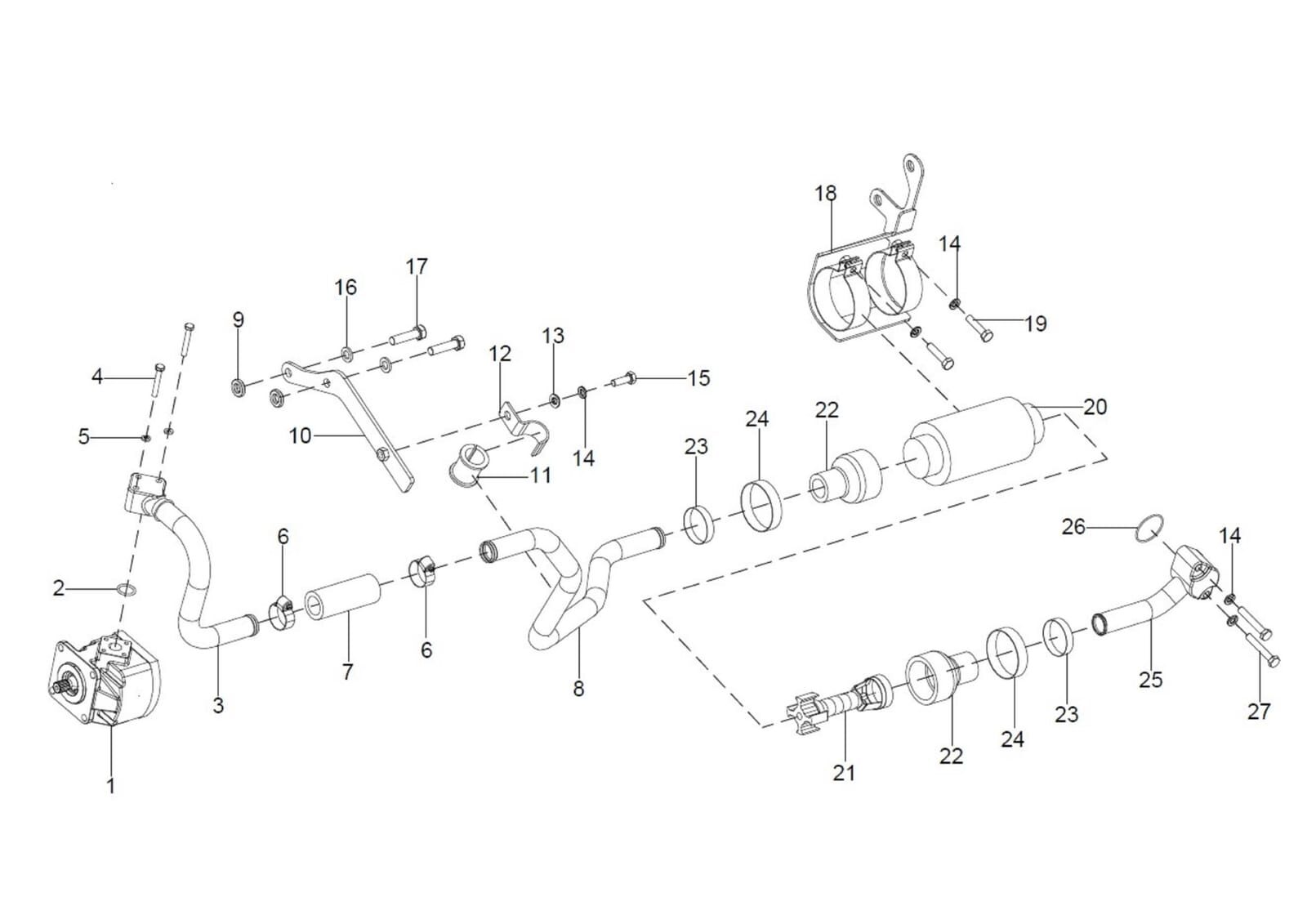

HY-13_SUCTION LINE (HIGHER LPM)
Osaluettelo
| Nro | Osa | Hinta | Osta |
|---|---|---|---|
| 1 | GEAR PUMP 11 CC (E106200000 ) 300312295A | Kysy saatavuus asiakaspalvelusta | |
| 2 | O RING Ø18.3X Ø2.5 10051651AD | 3,89 € | |
| 3 | SUCTION PIPE FROM STRAINER TO PUMP 300374001A | Kysy saatavuus asiakaspalvelusta | |
| 4 | HEX BOLT M6*40 SA4GS 300028444A | 3,89 € | |
| 5 | SPRING WASHER B-6 TYPE A IS:3067-1972 20005516AA | 3,89 € | |
| 6 | HOSE WORM CLAMP SAE 12 20004391AB | 3,89 € | |
| 7 | HOSE PIPE 10026286AE | 34,89 € | |
| 8 | PIPE FROM STARINER TO MOLDED HOSE 300373491A | Kysy saatavuus asiakaspalvelusta | |
| 9 | SPACER 5MM. 300163401A | 19,95 € | |
| 10 | BRACKET FOR SUCTION PIPE 300373888A | Kysy saatavuus asiakaspalvelusta | |
| 11 | VIBRATION DAMPER FOR 25 OD PIPE 10017103AA | 3,89 € | |
| 12 | CURVE CLAMP 300056694A | 19,95 € | |
| 13 | PUNCHED WASHER M8 20005612AA | 3,89 € | |
| 14 | SPRING WASHER B-8 TYPE A IS:3067-1972 20005517AA | 3,89 € | |
| 15 | HEX HEAD SCREW M8X1.25-25 -8.8 SA4GS 20005564AA | 3,89 € | |
| 16 | SPRING WASHER B-10 TYPE A IS:3067-1972 20005518AA | 3,89 € | |
| 17 | HEX SCREW M10X1.25X40 8-8 SA4GS 20004367AB | 2,49 € | |
| 17 | HEX SCREW M10X1.25X40 -8.8 SA4GS 20005680AA | 2,49 € | |
| 18 | BRACKET ASSY FOR STRAINER 300118332D | 19,95 € | |
| 19 | HEX SCREW M8X1.25X35 8.8 SA4GS 20005567AA | 3,89 € | |
| 20 | STRAINER-160 MICRONS 20002253AA | Kysy saatavuus asiakaspalvelusta | |
| 21 | MAGNETIC STRAINER ASSY 10023560AC | 189,00 € | |
| 22 | HOSE FOR STRAINER 300059590A | 34,89 € | |
| 23 | HOSE WORM CLAMP 32X45 IS:4762 20004338AB | 3,89 € | |
| 23 | HOSE WORM CLAMP SAE 24 20004398AA | 19,95 € | |
| 24 | HOSE WARM CLIP DIA 70 20003662AB | 3,89 € | |
| 25 | PRIMARY SUCTION PIPE 300114066A | 27,90 € | |
| 25 | PRIMARY SUCTION PIPE 300114066A | 27,90 € | |
| 26 | O-RING 37.82X1.78 10052711AC | 3,89 € | |
| 27 | HEX, HEAD SCREW M8 X 1.25 - 50 SA2JS 20005658AA | 3,89 € |
