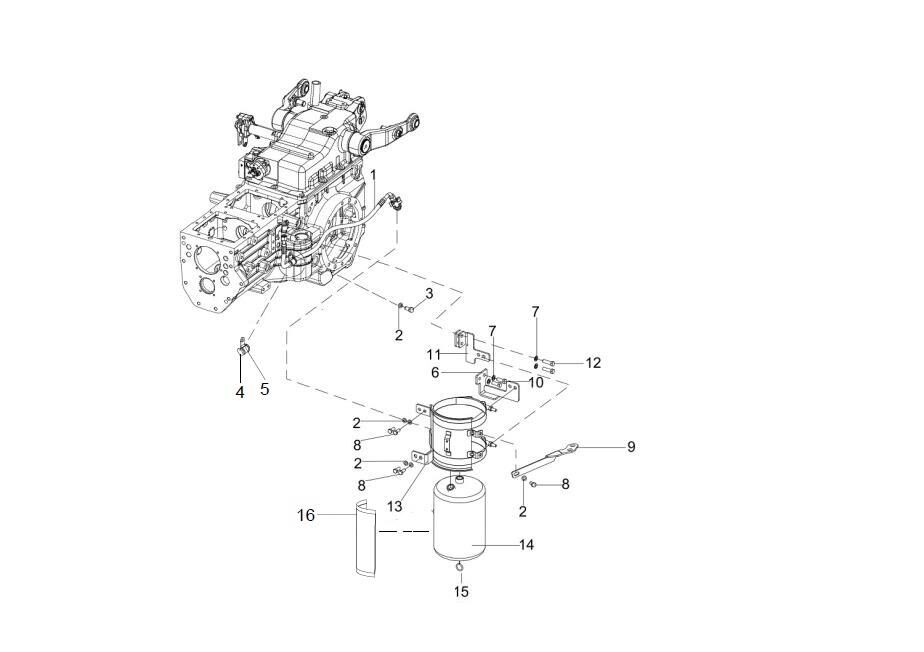

HY-13-1_DATB LH
Osaluettelo
| Nro | Osa | Hinta | Osta |
|---|---|---|---|
| 1 | FLEXIBLE HOSE FROM RESERVOIR 1 TO RESE 2 300163005C | 59,89 € | |
| 2 | SPRING WASHER B-10 TYPE A IS:3067-1972 20005518AA | 3,89 € | |
| 3 | HEX HEAD SCREW M10X20 8.8 SA4GS 20005585AA | 3,89 € | |
| 4 | VIBRATION DAMPER 10029735AB | 3,89 € | |
| 5 | 10012460AC PLUG M22X1.5 10012460AE | 3,89 € | |
| 6 | MNTG BKT FOR AIR RESERVOIR (LH) LOWER 300347102A | 19,95 € | |
| 7 | SPRING WASHER B-12TYPE-A IS:3063-1972 20004993AB | 3,89 € | |
| 8 | HEX HEAD SCREW M10X1.5X25 SA4GS 20005553AA | 3,89 € | |
| 9 | MOUNTING BRACKET TOP SUPPORT 300334591A | 19,95 € | |
| 10 | HEX SCREW M12*1.75*30 20003243AB | 2,49 € | |
| 11 | MOUNTING BRACKET FOR AIR RESERVOIR (LH) 300309905A | 44,90 € | |
| 12 | HEX SCREW M12X1.75X40 SA3NS 20004192AA | 3,89 € | |
| 13 | BRACKET MTG ASSEMBLY LH 300309906A | 84,90 € | |
| 13 | BRACKET MTG ASSEMBLY LH 300309906B | Kysy saatavuus asiakaspalvelusta | |
| 14 | AIR RESERVOIR 10068258AA | 159,00 € | |
| 15 | 90° ADJUSTABLE STUD ELBOW M22x1.5 & M16X 10037009AA | 18,45 € | |
| 15 | SEALING WASHER 22X29 20003644AB | 3,89 € | |
| 16 | RUBBER FLAP FOR RESERVOIR 10068260AB | 6,74 € |
