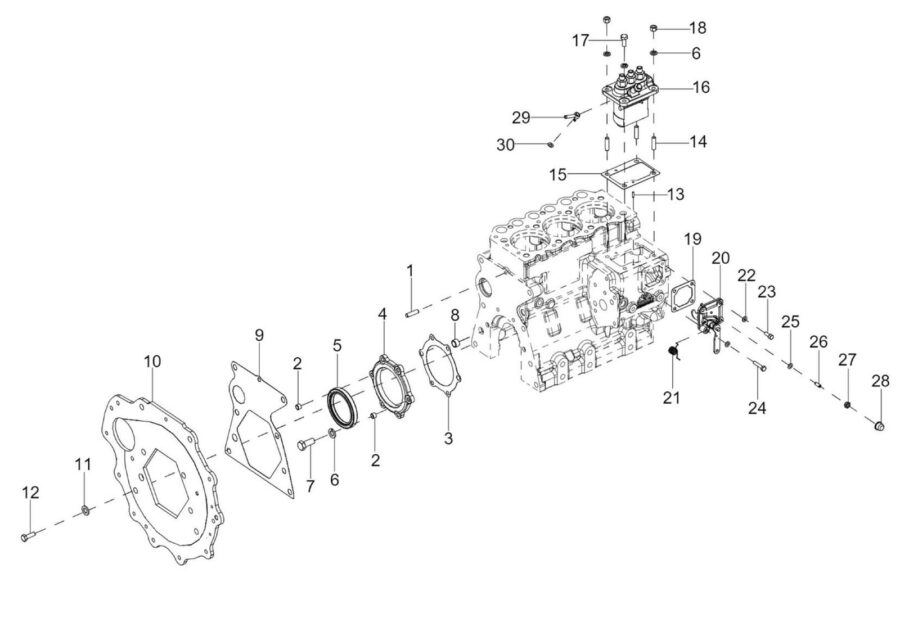

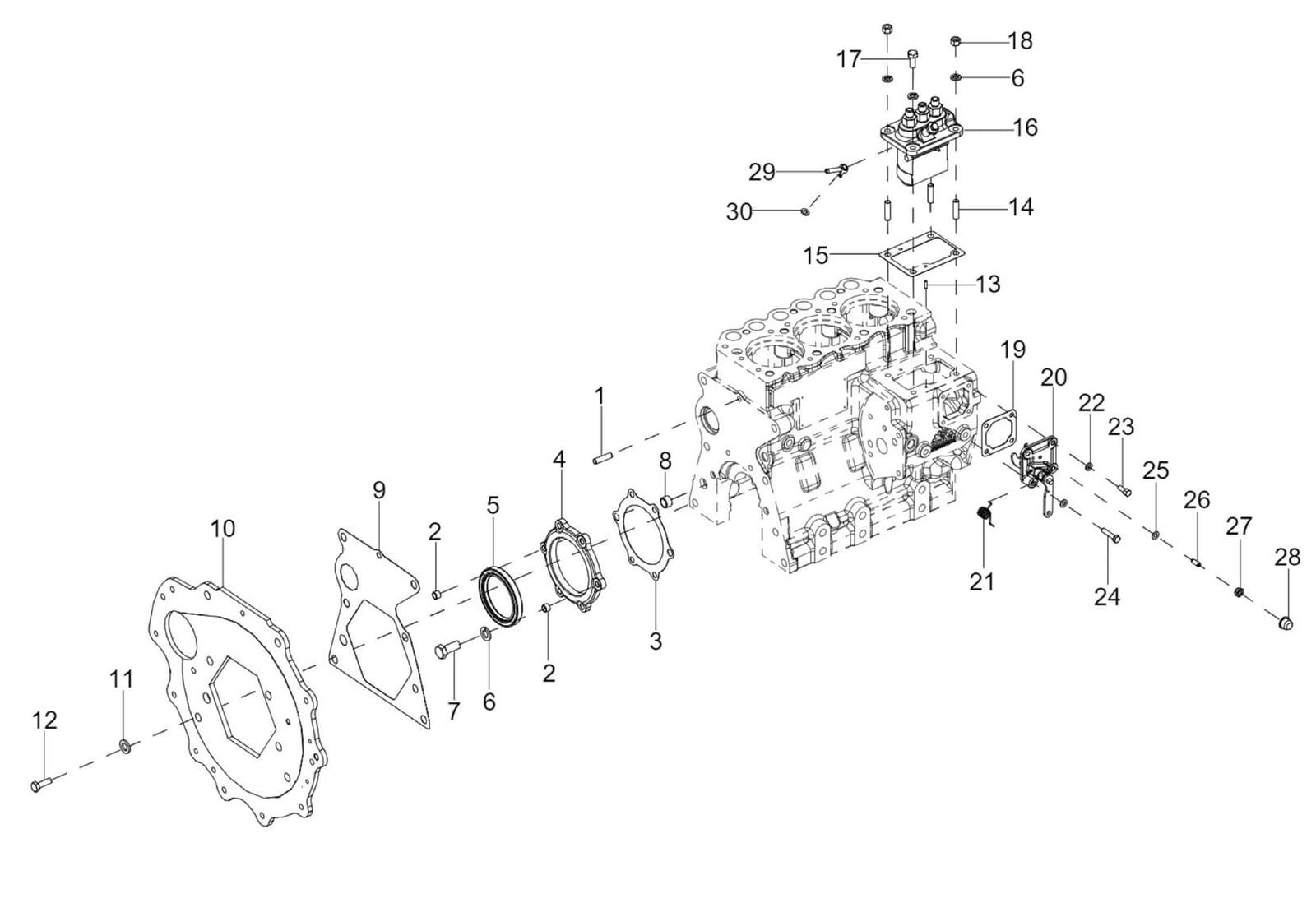

EN-4_REAR PLATE & FIP
Osaluettelo
| Nro | Osa | Hinta | Osta |
|---|---|---|---|
| 1 | CYLINDRICAL PIN 8M6X16 4010208016 | 19,95 € | |
| 2 | CENTRING GUIDE Ø11 703002174A | 19,95 € | |
| 3 | GASKET REAR COVER 703002208B | 3,89 € | |
| 4 | REAR COVER M/C 703002139A | 27,90 € | |
| 5 | OIL SEAL REAR 92X70X10 803002041B | 44,89 € | |
| 6 | SPRING WASHER B-8 TYPE A IS:3067-1972 20005517AA | 3,89 € | |
| 7 | HEX HEAD SCREW M8X1.25-25 -8.8 SA4GS 20005564AA | 3,89 € | |
| 8 | CENTRING GUIDE Ø16 703002167A | 19,95 € | |
| 9 | GASKET-REAR PLATE 703002154B | 3,89 € | |
| 10 | REAR PLATE 27 HP 300006414C | Kysy saatavuus asiakaspalvelusta | |
| 11 | SPRING WASHER B-12TYPE-A IS:3063-1972 20004993AB | 3,89 € | |
| 12 | HEX SCREW M12*1.5*28 20003240AA | 3,89 € | |
| 13 | CYLINDRICAL PIN 4M6X08 4010204008 | 19,95 € | |
| 14 | STUD M8 X 1.25 -20 (10.9)TYPE C PHOSPHATE 4040408020 | 19,95 € | |
| 15 | SHIM-F.I.P. 0.3 MM 703008155B | 3,89 € | |
| 15 | SHIM F.I.P 0.1MM 703008221B | 3,89 € | |
| 16 | F.I.P. ASSY PFR3K E041 265 200 803008087A | 998,99 € | |
| 17 | HEX HEAD SCREW M8X1.25X20 -8.8 SA4GS 20005565AA | 3,89 € | |
| 18 | HEX NUT M8X1.25 -8 SA4NS 200000391A | 3,89 € | |
| 19 | GASKET STOPPER COVER 703008123B | 3,89 € | |
| 20 | Stopper Cover Assy. 703008121I | 44,90 € | |
| 21 | TORSION SPRING 703008125A | 19,95 € | |
| 22 | SPRING WASHER B-6 TYPE A IS:3067-1972 20005516AA | 3,89 € | |
| 23 | HEX HEAD SCREW M6X1X16 8.8 SA4GS 20005484AB | 3,89 € | |
| 24 | HEX SCREW M6X30 SA4GS 20005568AA | 3,89 € | |
| 25 | WASHER ALMN. M6_SPL. 703008138A | 2,90 € | |
| 26 | SET SCREW M6X18_SPL. 703008131A | 2,49 € | |
| 27 | HEX NUT M6_SPL. 703008127A | 2,49 € | |
| 28 | LOCKING CAP 703008176A | 19,95 € | |
| 29 | V BANJO 300448283B | Kysy saatavuus asiakaspalvelusta | |
| 30 | SEALING WASHER DIA 12.2 * DIA 15.4* 1.5 04030212015 | 3,89 € |
