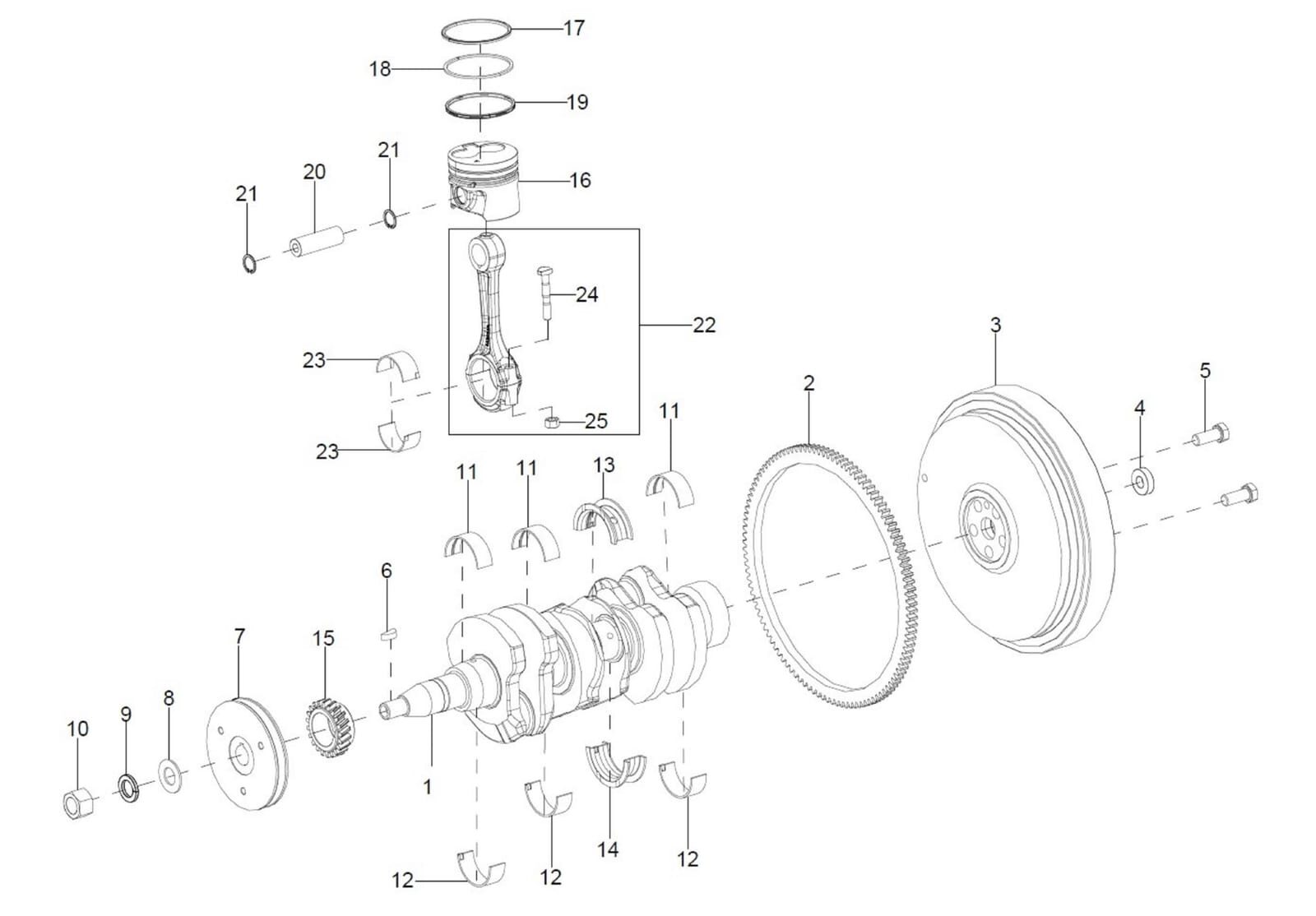

EN-3_CRANKSHAFT & FLYWHEEL ASSY
Osaluettelo
| Nro | Osa | Hinta | Osta |
|---|---|---|---|
| 1 | CRANK SHAFT-3CYL. (78-STROKE) 803003028B | 699,00 € | |
| 2 | RING GEAR FLY WHEEL 703003108C | 64,90 € | |
| 3 | FLY-WHEEL 300007376B | 269,00 € | |
| 4 | RADIAL B/BEARING 6001-2Z 803003030A | 19,95 € | |
| 5 | HEX HEAD SCREW M12 X 1.5 X 32 -4H (10.9) 703003123A | 2,49 € | |
| 6 | WOODRUFF-KEY 6X9X22 703003226A | 19,95 € | |
| 7 | PULLEY ENGINE 703403339B | 44,90 € | |
| 7 | PULLEY_ENGINE (GT) 703403339C | Kysy saatavuus asiakaspalvelusta | |
| 8 | WASHER DIA 36 703003085A | 2,90 € | |
| 9 | SPRING WASHER B-18 TYPE A IS:3067-1972 20005522AA | 3,89 € | |
| 10 | NUT H M18 X 1.5 8 PHOSPHATED 703003143A | 2,49 € | |
| 11 | MAIN BEARING LINER TOP 300010870A | 29,89 € | |
| 12 | MAIN BEARING LINER BOTTOM 300010871A | 3,89 € | |
| 13 | THRUST BEARING TOP 300010868A | 34,89 € | |
| 14 | THRUST BEARING BOTTOM 300010869A | 34,89 € | |
| 15 | CRANK TIMING GEAR 703003182D | 44,90 € | |
| 16 | PISTON 703403323A | 64,90 € | |
| 17 | PISTON RING TOP 703403324A | 34,89 € | |
| 18 | PISTON RING COMPRESSSION 703403325A | 29,89 € | |
| 19 | PISTON OIL RING 703403326A | 34,89 € | |
| 20 | PISTON PIN 703403327A | 19,95 € | |
| 21 | INTERNAL CIRCLIP A-19 4020200019 | 19,95 € | |
| 22 | CONNECTING ROD ASSY. 803003053C | 89,00 € | |
| 23 | BEARING (CONN. ROD) 300010867A | 3,89 € | |
| 24 | CONNECTING ROD BOLT 703003127A | 19,95 € | |
| 25 | CONNECTING ROD NUT 703003128A | 2,49 € |
