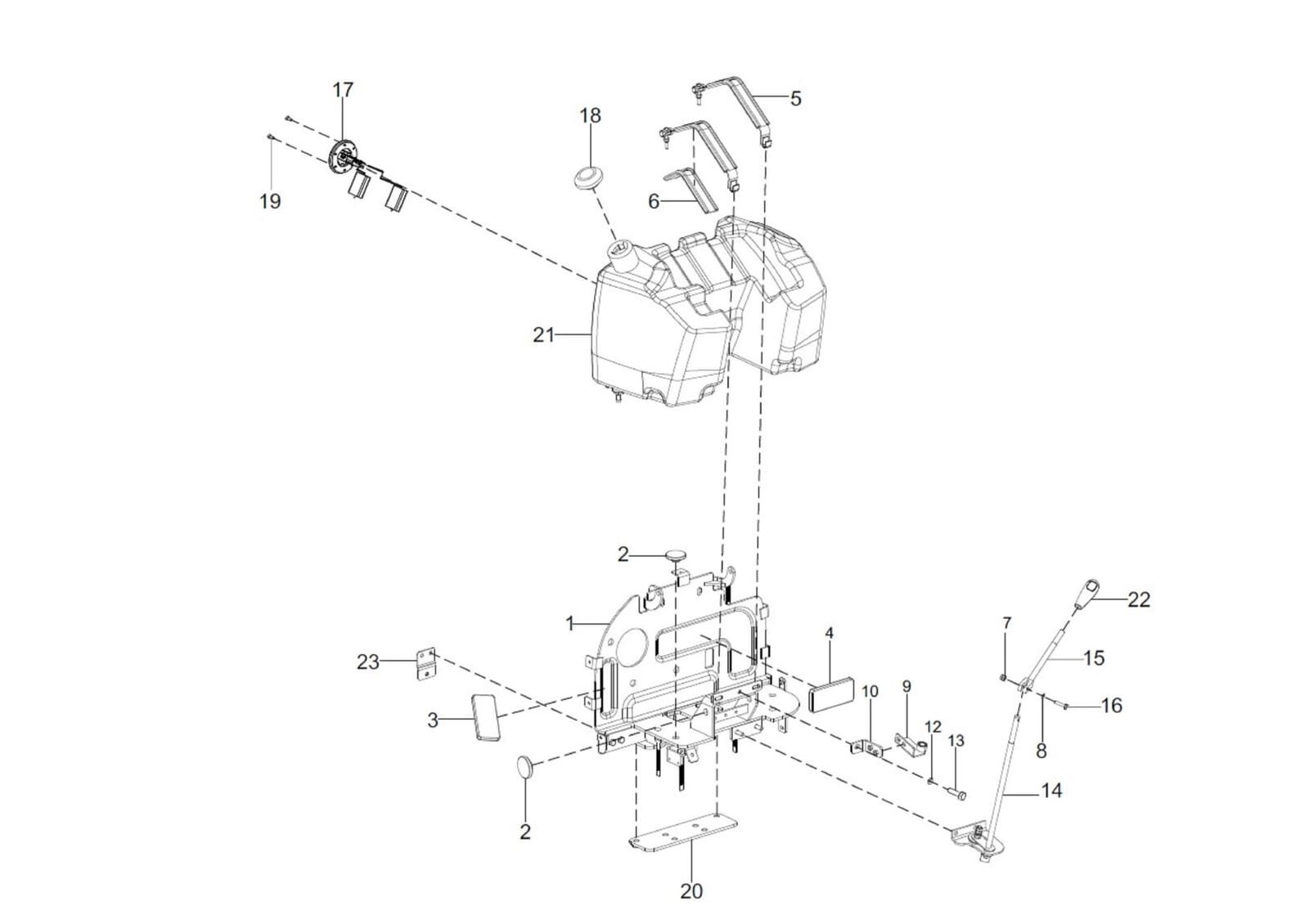

EA-9_FUEL TANK
Osaluettelo
| Nro | Osa | Hinta | Osta |
|---|---|---|---|
| 1 | FUEL TANK FRAME ASSY 300051755B | Kysy saatavuus asiakaspalvelusta | |
| 2 | RUBBER BUTTON BIG 10004600AA | Kysy saatavuus asiakaspalvelusta | |
| 2 | RUBBER BUTTON (BIG) FOR FUEL TNK MTG PLT 10004600AB | 3,89 € | |
| 2 | RUBBER BUTTON 10056338AA | 3,89 € | |
| 3 | FUEL TANK RESTING RUBBER PAD 10057709AB | 3,89 € | |
| 4 | FUEL TANK RESTING RUBBER PAD 10057710AB | 29,89 € | |
| 5 | STRAP ASSY 300007809C | 19,95 € | |
| 6 | RUBBER FLAP 300027774A | 3,89 € | |
| 6 | RUBBER FLAP 10014841AA | 3,89 € | |
| 7 | HEX NYLOC NUT M6 8 20004915AB | 3,89 € | |
| 8 | M/C WASHER DIA 6.4*DIA 12.4*1.6 20004941AB | 3,89 € | |
| 9 | HAND ACCLERATOR GUIDE 300035456A | 29,89 € | |
| 10 | GUIDE HOLDING BRACKET 300035449A | 19,95 € | |
| 12 | SPRING WASHER B-8 TYPE A IS:3067-1972 20005517AA | 3,89 € | |
| 13 | HEX HEAD SCREW M8X1.25-25 -8.8 SA4GS 20005564AA | 3,89 € | |
| 14 | HAND ACCELERATOR ASSY 300024516D | 27,90 € | |
| 15 | TOP LEVER HAND ACCELERATOR (BLACK POWDER 300062347A | 34,89 € | |
| 16 | HEX SCREW M6X30 SA4GS 20005568AA | 3,89 € | |
| 17 | TANK UNIT 10057723AA | 44,89 € | |
| 17 | TANK UNIT 300631432A | 33,94 € | |
| 18 | FUEL TANK CAP (DOUBLE LOCK) HOMOLOGATION 10070894AF | 34,89 € | |
| 19 | SLOTTED CHEASE HEAD SCREW M5*12 20005537AA | 3,89 € | |
| 20 | BASE PLATE FOR FUEL TANK FRAME 300051790A | Kysy saatavuus asiakaspalvelusta | |
| 21 | FUEL TANK ASSEMBLY 10057513AF | 448,99 € | |
| 22 | KNOB FOR HAND ACCELERATOR 10053755AC | 3,89 € | |
| 23 | MTG BKT FOR DUST COVER LH SIDE 300007805A | 19,95 € |
