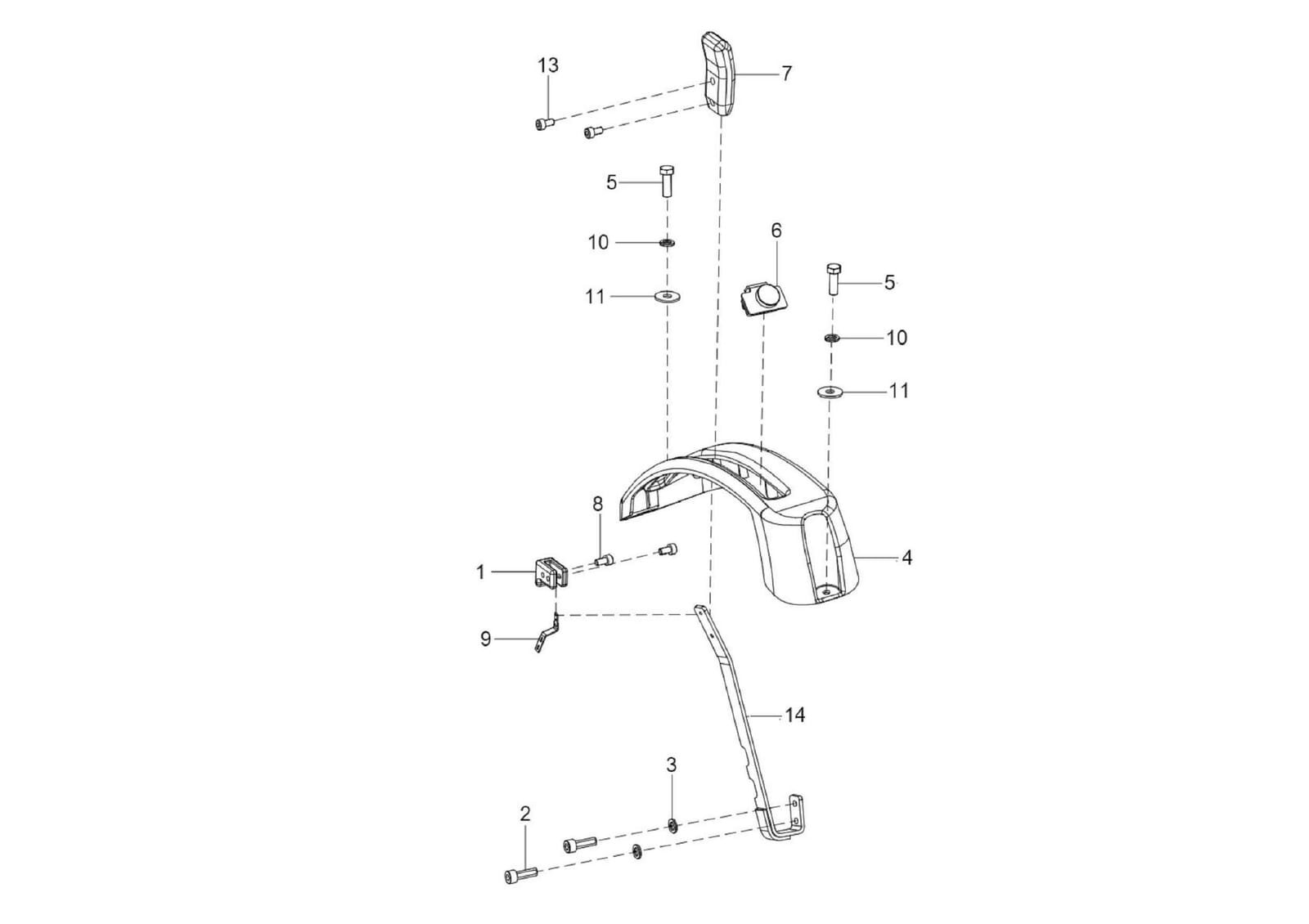

BC-8_OPERATING SECTOR ASSY.
Osaluettelo
| Nro | Osa | Hinta | Osta |
|---|---|---|---|
| 1 | KNOB FOR PC DC LEVER 10055562AA | 3,89 € | |
| 2 | HEX SOCKET HEAD CAP SCREW M8*25 20005001AB | 3,89 € | |
| 3 | SPRING WASHER B-8 TYPE A IS:3067-1972 20005517AA | 3,89 € | |
| 4 | COVER POSITION LEVER 10053425AE | 44,89 € | |
| 5 | HEX FLANGE SCREW M6*1*16 -8.8 SA4GS 20005542AA | 3,89 € | |
| 5 | TRUSS PHILIPS M/C SCREW M6X20 20004652AB | 3,89 € | |
| 6 | LOCK COVER POSITION LEVER 10053691AC | Kysy saatavuus asiakaspalvelusta | |
| 7 | LOCK COVER POSITION LEVER 10053691AF | Kysy saatavuus asiakaspalvelusta | |
| 7 | KNOB (POSITION LEVER) 10085118AB | 3,89 € | |
| 7 | KNOB (DRAFT LEVER) 10085118AC | 3,89 € | |
| 8 | SOCKET HEAD CAP SCREW M4X8 8.8-SA4GS 20005635AA | 3,89 € | |
| 9 | POSITION LEVER UPPER PART 10055550AB | 29,89 € | |
| 10 | SPRING WASHER B-6 TYPE A IS:3067-1972 20005516AA | 3,89 € | |
| 11 | WASHER A 6.4 IS:5370 STEEL (FOR EPA) 20005765AA | 3,89 € | |
| 13 | HEX FLANGE SCREW M8*1.25*25 -8.8 SA4GS 20005543AA | 3,89 € | |
| 13 | HEX FLANGE SCREW M8X25-8.8 SA4NS 20004978AA | 2,49 € | |
| 13 | CROSS SLOTTED TRUSS HEAD SCREW M8X25 10067946AB | 3,89 € | |
| 14 | POSITION LEVER PAINTED 10056135AB | 7,05 € |
