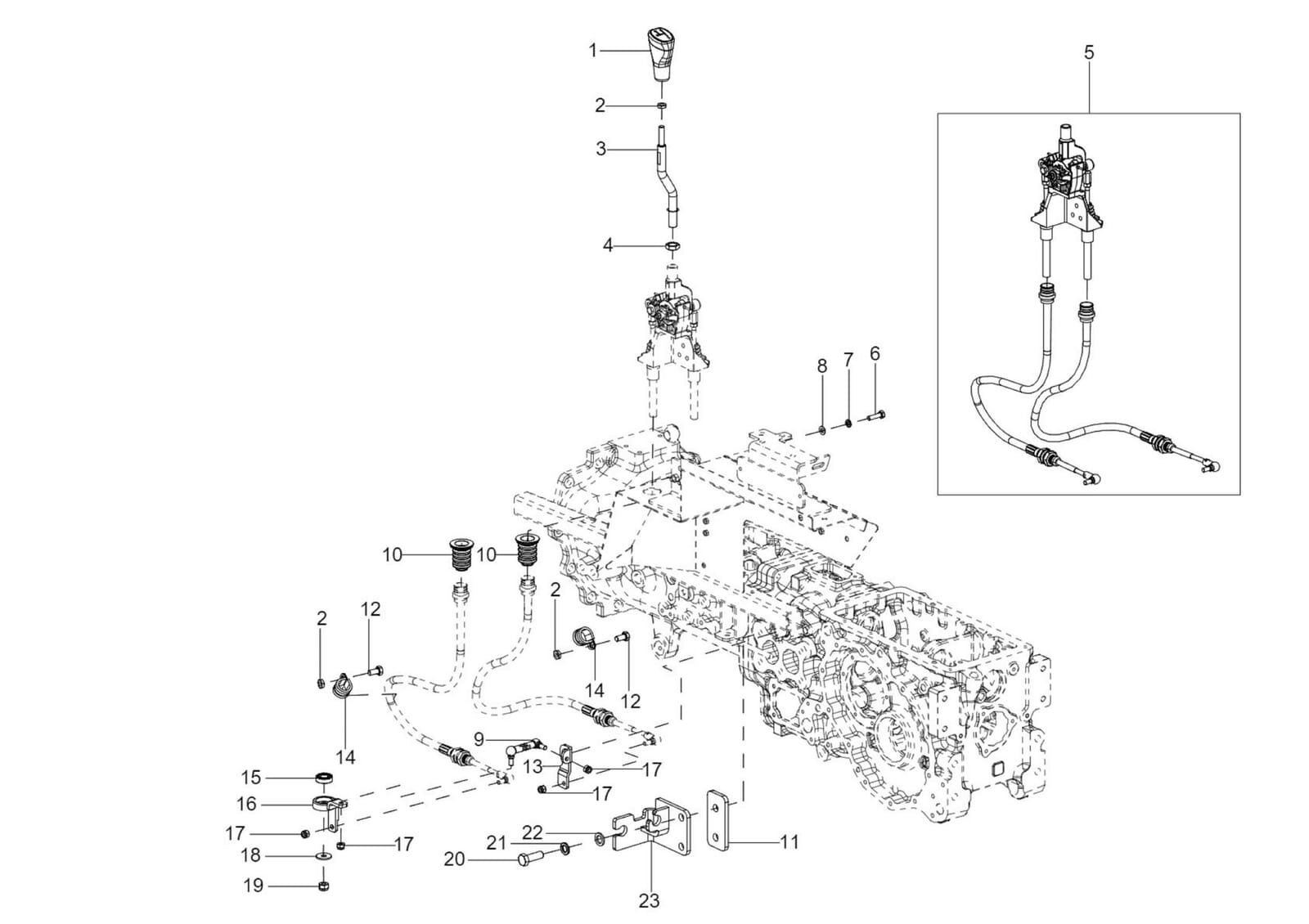

BC-4_RANGE LEVER ASSEMBLY
Osaluettelo
| Nro | Osa | Hinta | Osta |
|---|---|---|---|
| 1 | RANGE LEVER KNOB ASSY 300164744A | 34,89 € | |
| 2 | HEX LOCK NUT M10X1.5 SA4GS 300262676A | 2,49 € | |
| 3 | RANGE LEVER ROD 300348755A | Kysy saatavuus asiakaspalvelusta | |
| 4 | HEX LOCK NUT M16 SA4GS 20005463AA | 3,89 € | |
| 5 | RANGE LEVER ASSY 300270862A | Kysy saatavuus asiakaspalvelusta | |
| 6 | HEX SCREW M8X1.25X30 -8.8 SA4GS 20005563AA | 3,89 € | |
| 7 | SPRING WASHER B-8 TYPE A IS:3067-1972 20005517AA | 3,89 € | |
| 8 | M/CD WASHER B8 20005624AA | 3,89 € | |
| 9 | TIE ROD FOR GEAR & RANGE 300282738A | 44,90 € | |
| 10 | GROMMET FOR HOLE DIA 36 300350869A | Kysy saatavuus asiakaspalvelusta | |
| 11 | RESTING SUPPORT PLATE (RANGE LEVER) 300211284A | Kysy saatavuus asiakaspalvelusta | |
| 12 | HEX. FLANGED SCREW M8X1.25X15 20005636AA | 3,89 € | |
| 13 | HUB ASSY RANGE LEVER 300282747B | 34,89 € | |
| 14 | PIPE CLAMP FOR DIA 24 (M8) 300189327A | 19,95 € | |
| 15 | BALL BEARING 6002 (DIA 15*32*09 20003769AB | 34,89 € | |
| 16 | PIVOT BKT ASSY RANGE 300175662B | Kysy saatavuus asiakaspalvelusta | |
| 17 | HEX NYLOC NUT M8*1.25 8 20004917AB | 3,89 € | |
| 18 | PLAIN WASHER A 10.5 IS:5370 STEEL 20005523AA | 3,89 € | |
| 19 | HEX NYLOCK NUT M10 -8 20005529AA | 3,89 € | |
| 20 | HEX BOLT M14X2X50 SA4GS 20005495AA | 3,89 € | |
| 21 | SPRING WASHER B-14 TYPE A IS:3067-1972 20005520AA | 3,89 € | |
| 22 | M/C WASHER DIA 16.5X26X3 300066305A | 2,90 € | |
| 23 | WIRE HOLDING BKT ASSY 300135457B | 19,95 € |
