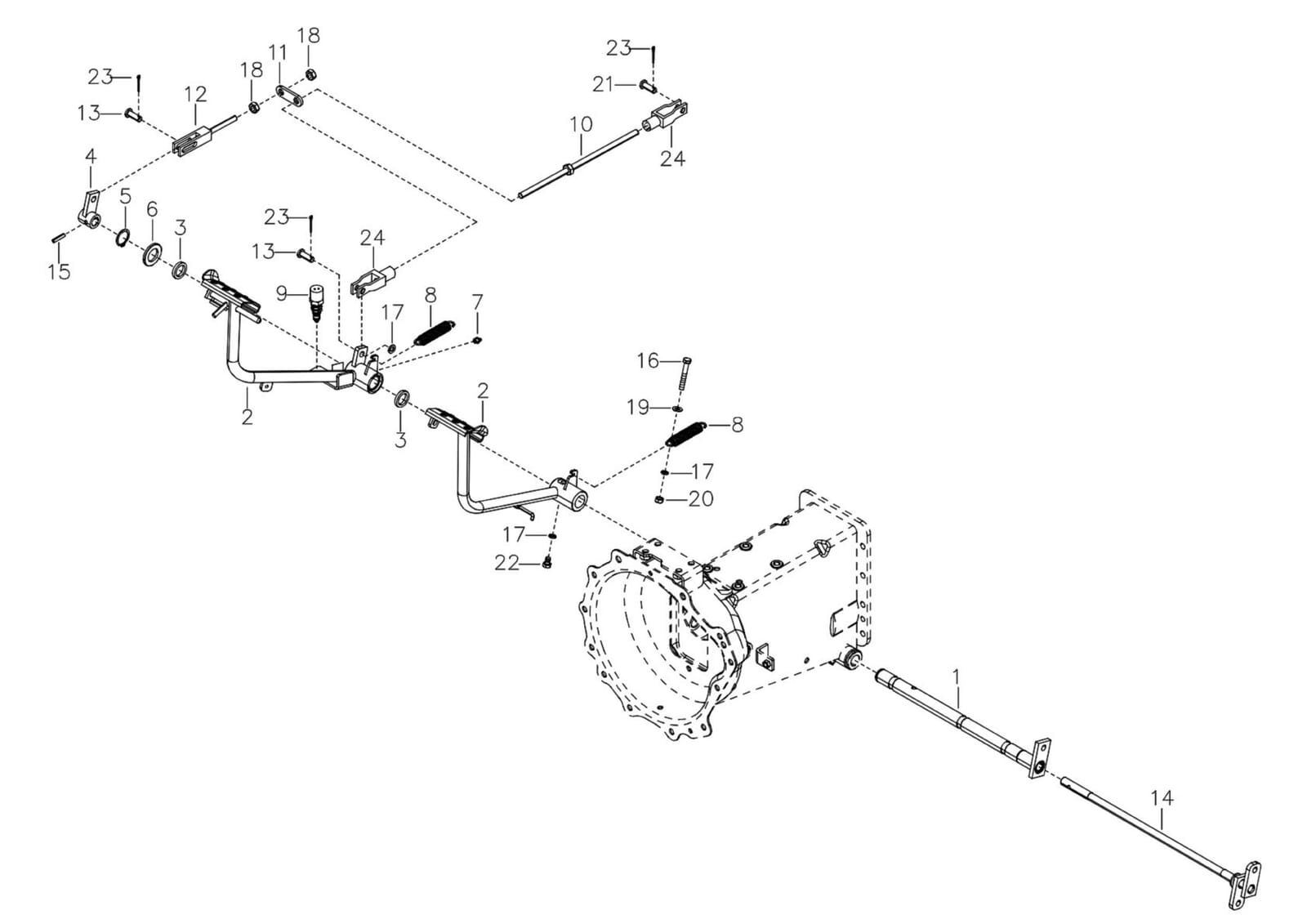

BC-2_BRAKE PEDAL ASSY.
Osaluettelo
| Nro | Osa | Hinta | Osta |
|---|---|---|---|
| 1 | BRAKE PEDAL SHAFT 10051037BA | 27,90 € | |
| 1 | BRAKE PEDAL SHAFT 300033905A | 99,99 € | |
| 2 | ASSY BRAKE PADEL LH & RH 10052352BB | 99,99 € | |
| 2 | BRAKE PEDAL ASSY LH & RH 300194528A | Kysy saatavuus asiakaspalvelusta | |
| 3 | FELT RING 10051143AA | 3,89 € | |
| 4 | LUG ASSY 300032935A | 34,89 € | |
| 5 | EXTERNAL CIRCLIP A - 25 20004134AA | 3,89 € | |
| 6 | 3/CD WASHER DIA 26 *DIA 44*4 20004133AB | 2,90 € | |
| 6 | M/CD WASHER DIA26*DIA44*4 20005623AA | 2,90 € | |
| 7 | GREASE NIPPLE WITH CAP M8*1 4043200008 | 19,95 € | |
| 8 | TENSION SPRING 10007881BA | Kysy saatavuus asiakaspalvelusta | |
| 8 | TENSION SPRING 10007881BB | 3,89 € | |
| 9 | PLUNGER SWITCH NC 300119996A | 59,89 € | |
| 9 | PLUNGER SWITCH NO 300157154A | 64,90 € | |
| 10 | TIE ROD 10052427AA | Kysy saatavuus asiakaspalvelusta | |
| 10 | TIE ROD 300033718A | Kysy saatavuus asiakaspalvelusta | |
| 10 | TIE ROD 300033718B | 19,95 € | |
| 11 | BKT FOR TIE ROD 300030145A | 3,89 € | |
| 12 | TIE ROD ASSY 300030663A | 34,89 € | |
| 13 | PIN FOR BRAKE ACTUATOR FORK 300031334A | 3,89 € | |
| 13 | PIN FOR BRAKE ACTUATOR FORK 10003800AB | Kysy saatavuus asiakaspalvelusta | |
| 14 | PARKING BRAKE SHAFT ASSY 300033224A | 44,89 € | |
| 15 | SPRING COTTER SLEEVE(DIA 6X28) 20004150AA | 3,89 € | |
| 15 | SPRING COTTER SLEEVE(DIA 6X30) DIN-148 10084523AA | 3,89 € | |
| 16 | HEX BOLT M10*1.5*55 8-8 SA4GS 20003491AD | 3,89 € | |
| 16 | HEX HEAD BOLT M8X1.25X55 20004136AA | Kysy saatavuus asiakaspalvelusta | |
| 16 | HEX HEAD BOLT M8X55_8.8 SA4GS 20005600AA | 19,95 € | |
| 17 | SPRING WASHER B-8 4030400008 | 2,90 € | |
| 17 | SPRING WASHER B-8 TYPE A IS:3067-1972 20005517AA | 3,89 € | |
| 18 | HEX NUT M10 -8 SA4GS 20005503AA | 3,89 € | |
| 18 | HEX NUT M10 -8 SA2JS 20003357AB | 2,49 € | |
| 19 | PLAIN WASHER DIA 8.4 *DIA 17*1.6 20004935AB | 3,89 € | |
| 20 | HEX NUT M8X1.25 -8 SA4GS 20005504AA | 3,89 € | |
| 20 | HEX NUT M8X1.25 -8 SA4NS 200000391A | 3,89 € | |
| 20 | HEX NUT M8X1.25 -8 SA2JS 20003355AB | 2,49 € | |
| 21 | LINK PIN 10005187AA | Kysy saatavuus asiakaspalvelusta | |
| 22 | HEX SCREW M8X1.25X12 8.8 SA3NS 20004356AA | 3,89 € | |
| 23 | SPLIT PIN DIA 2X16 20004382AA | Kysy saatavuus asiakaspalvelusta | |
| 23 | SPLIT PIN DIA 2*16 300031807A | 3,89 € | |
| 24 | ACTUATOR FORK ASSY RH 300089440A | 19,95 € |
