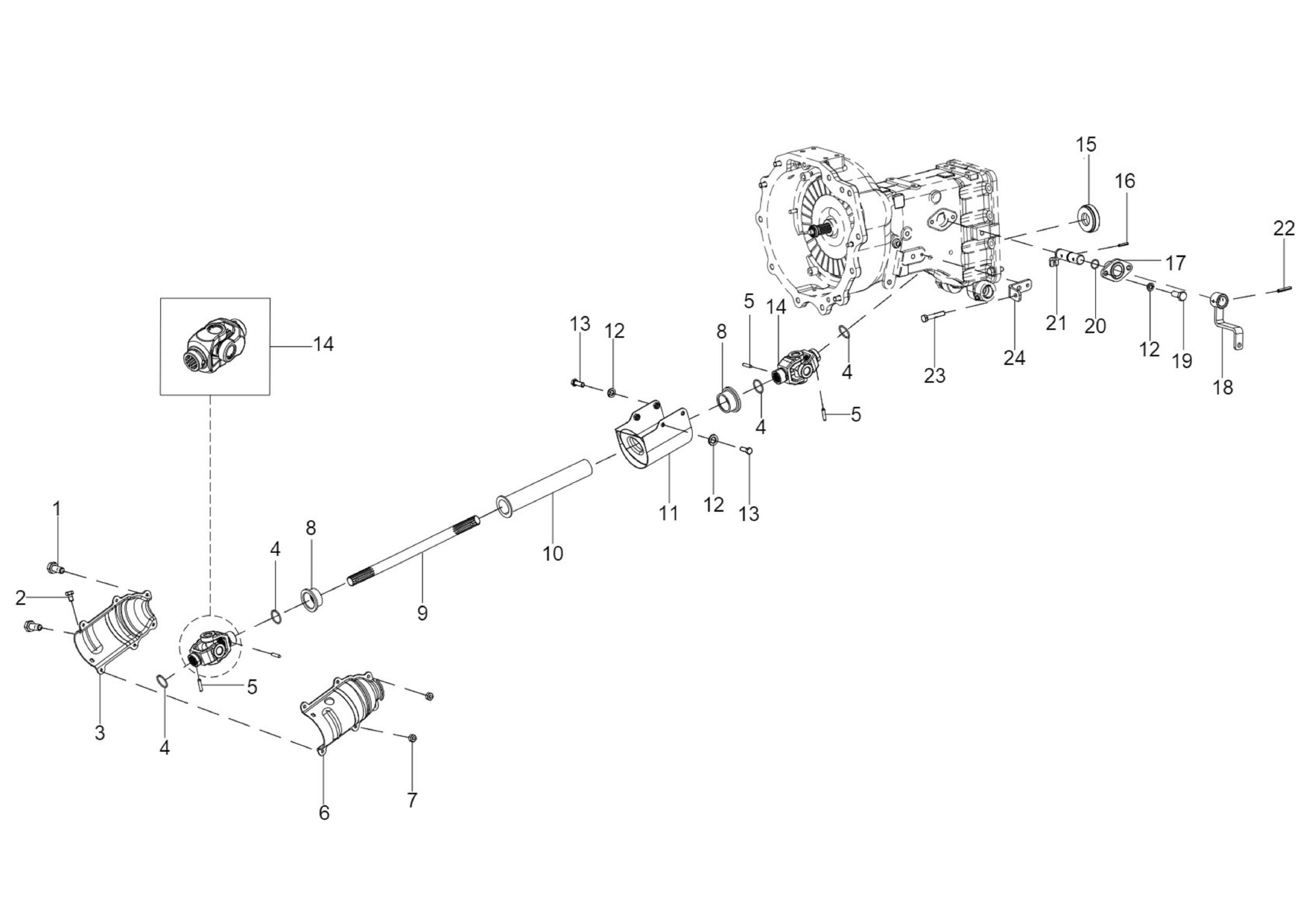

TM-1-1_CLUTCH & PROPELLER SHAFT ASSY
S22- (ROPS)-05110A-1-2
1
HEX HEAD SCREW M6X1X14 8.8 SA4GS
20005496AA | 2.49 € /kpl
2
HEX SCREW M6X10 8.8 SA2JS
20005573AA | 2.49 € /kpl
3
UNIVERSAL JOINT COVER FRONT RIGHT
10053802AE | 19.95 € /kpl
4
SNAP RING FOR SHAFT DIA 32 ( DIN 7993)
20004355AD | 19.95 € /kpl
5
DOWEL PIN (6X28) FOR UNIVERSAL JOINT & FRONT PTO
10052452AA | 19.95 € /kpl
6
UNIVERSAL JOINT COVER FRONT LEFT
10053801AE | 19.95 € /kpl
7
HEX NUT M6 -8 SA4GS
20005491AA | 2.49 € /kpl
8
RUBBER SEAL
10050688AC | 19.95 € /kpl
9
FRONT PTO SHAFT
10052882AA | 89.00 € /kpl
10
PTO GUARD ASSY
10052580AB | 19.95 € /kpl
11
UNIVERSAL JOINT COVER (REAR)
10052904BA | 19.95 € /kpl
12
SPRING WASHER B-8 TYPE A IS:3067-1972
20005517AA | 2.90 € /kpl
13
HEX HEAD SCREW M8X1.25-25 -8.8 SA4GS
20005564AA | 2.49 € /kpl
14
UNIVERSAL JOINT ASSY.
10051224AF | 129.00 € /kpl
15
RUBBER BOOT FOR CLUTCH HSG.
10051888AA
15
RUBBER BOOT FOR CLUTCH HSG.
10051888AB | 19.95 € /kpl
16
COTTER SLEEVE Ø5*26(DIN:7346)LIGHT
20004313AA | 19.95 € /kpl
17
BRACKET
10050809AB | 19.95 € /kpl
18
LEVER LUG ASSY
10053406AB | 19.95 € /kpl
19
HEX HEAD SCREW M8X1.25X20 -8.8 SA4GS
20005565AA | 2.49 € /kpl
20
O-RING Ø18 X Ø2.0
20004142AD | 19.95 € /kpl
21
ACTUATING LUG ASSY
10053407AD | 19.95 € /kpl
22
SPRING COTTER SLEEVE Ø6*36 ISO:13337,DIN:7346,BN878(LIGHT DUTY)
20004296AA | 19.95 € /kpl
23
HEX SCREW M8X45 SA4GS
200000482A | 2.49 € /kpl
24
STOPPER FOR C.A. SHAFT
10052908AB | 19.95 € /kpl
