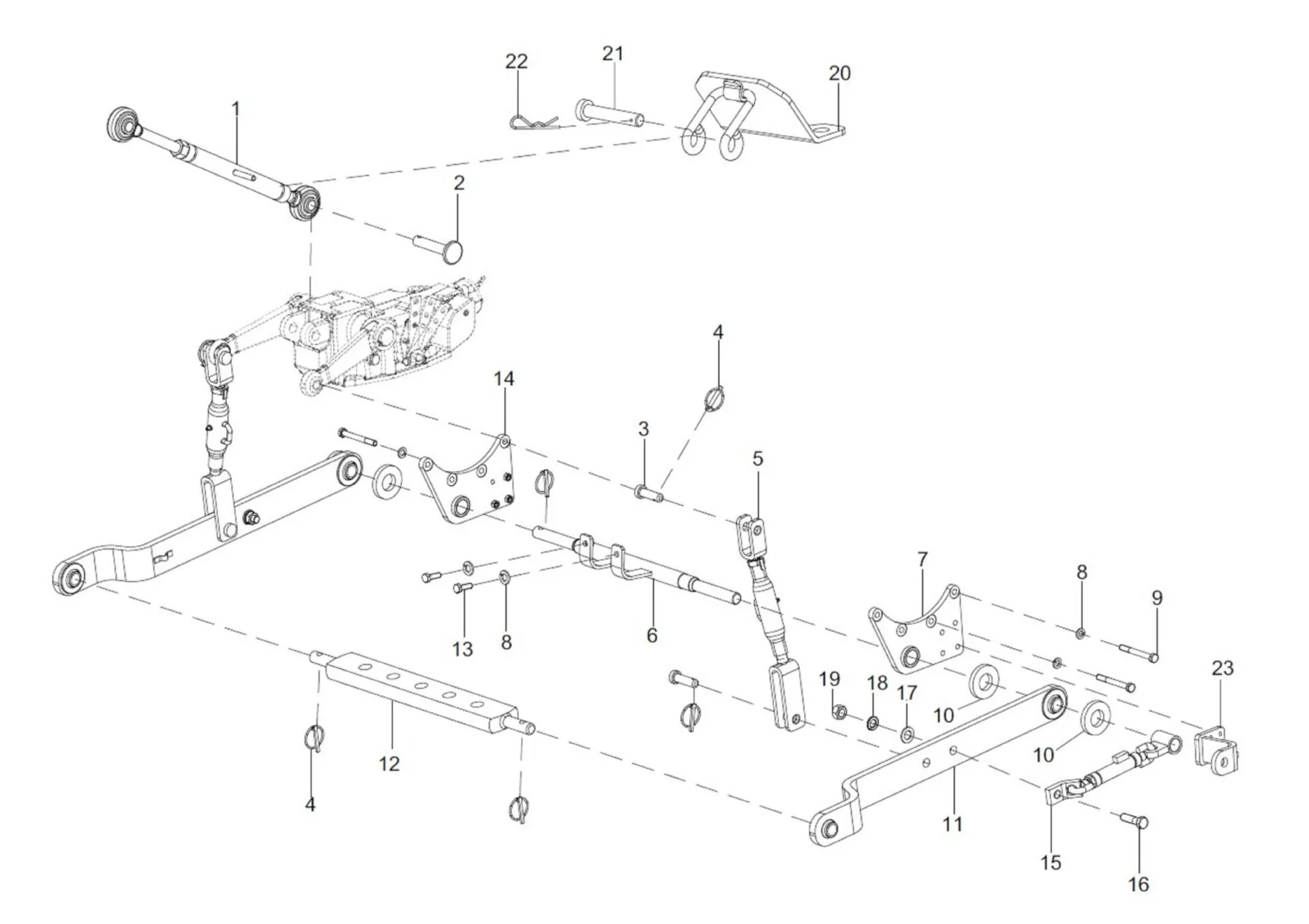

HY-7_THREE POINT LINKAGES
S16- STAGE V (MS)-21110A-1-1
1
TOP LINK ASSY
10051213AA
2
PIN FOR TOP LINK
10053509AC
3
LIFT ARM PIN
10054339AA
3
PIN (3 POINT LINK)
10056928AA
3
PIN (3 POINT LINK)
10057687AA | 19.95 € /kpl
3
PIN (3 POINT LINK)
10057688AA | 19.95 € /kpl
4
LINCH PIN ASSY.(Ø7)
10087923AA | 19.95 € /kpl
5
ADJUSTABLE LIFT ROD ASSY
10055149AC | 44.90 € /kpl
5
ADJUSTABLE LIFT ROD ASSY
10053841AF
6
SHAFT LOWER LINK
10055554AD
6
SHAFT LOWER LINK
10054650AB
7
BUSH PLATE ASSY RH
10054336BA | 44.90 € /kpl
8
SPRING WASHER B-10 TYPE A IS:3067-1972
20005518AA | 2.90 € /kpl
9
HEX. BOLT M10*1.5*90
20003223AB | 19.95 € /kpl
10
SPACER FOR LOWER LINK
10051635AA
10
SPACER FOR LOWER LINK
10057675AA | 19.95 € /kpl
11
LOWER LINK ASSY
300011311B | 129.00 € /kpl
12
DRAW BAR
10051214AB | 89.00 € /kpl
13
HEX SCREW M10*35
20003238AB | 2.49 € /kpl
14
BUSH PLATE ASSY LH
10054335BA | 44.90 € /kpl
15
ADJUSTABLE ANCHOR CHAIN ASSY
300010577B | 29.90 € /kpl
16
HEX BOLT M14X2X50 SA4GS
20005495AA | 19.95 € /kpl
17
PUNCHED WASHER A14 IS:2016
20005512AA | 2.90 € /kpl
18
SPRING WASHER B-14 TYPE A IS:3067-1972
20005520AA | 2.90 € /kpl
19
HEX NUT M14X2 -8 SA4GS
20005505AA | 2.49 € /kpl
20
TOP LINK HOLDING BKT
10056463AA | 19.95 € /kpl
21
PIN (FOR SWINGING DRAW BAR)
10055143AC | 19.95 € /kpl
22
BEATA PIN
10087903AA | 19.95 € /kpl
23
ADDITIONAL SUPPORT FOR LOWER LINK MOUNTI
10054560AA | 27.90 € /kpl
