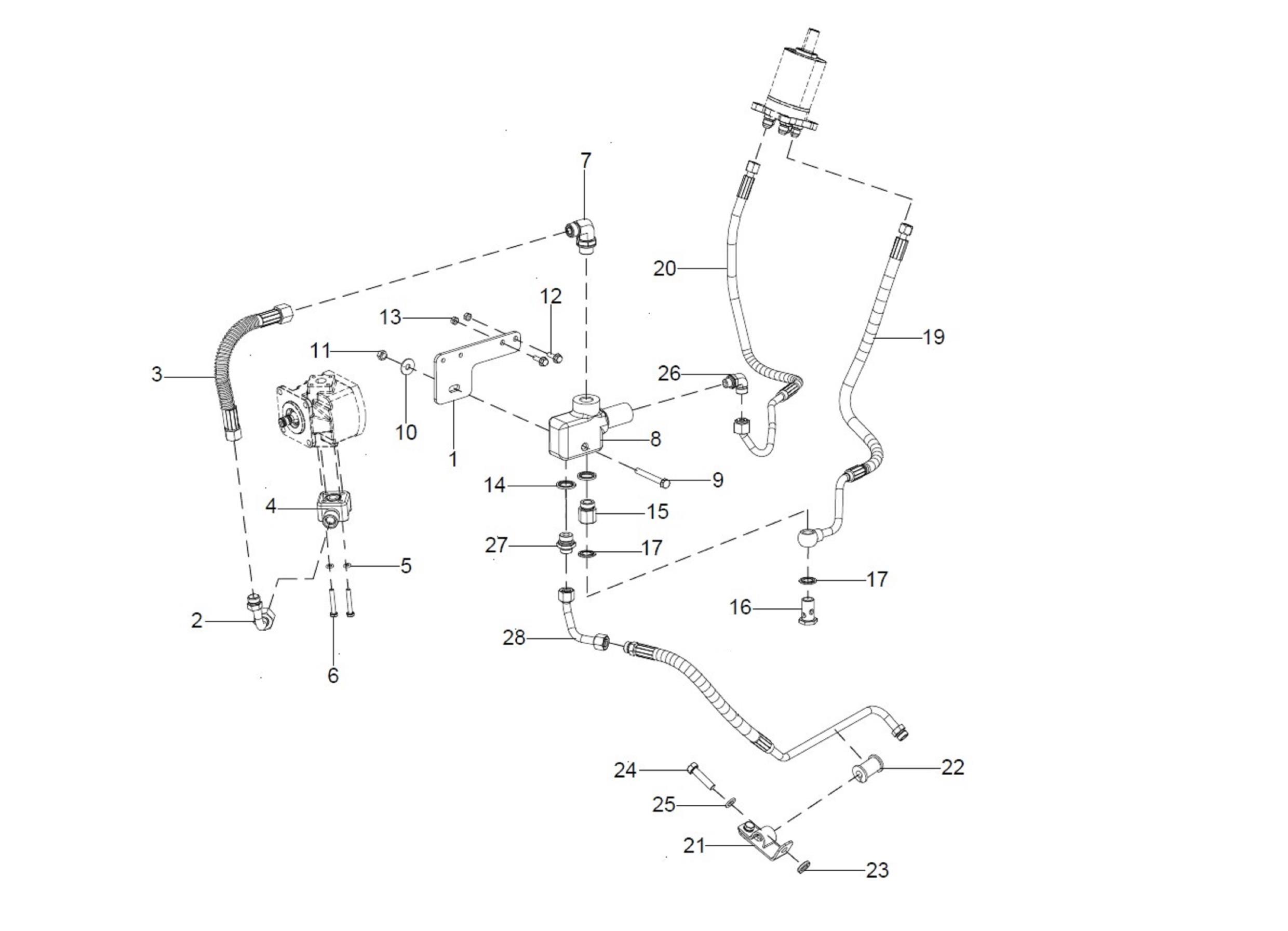

HY-12_DELIVERY LINE (HIGHER LPM)
S26- (9+9) ROPS-10210A-1-1
1
PV MOUNTING BRACKET ASSEMBLY
300308206C
2
PRI. PIPE FROM PUMP TO PV
300373440A
3
SECONDARY PIPE FROM PUMP TO PRIORITY VAL
300212581B
4
DELIVERY ADOPTER
10056598AA | 19.95 € /kpl
5
SPRING WASHER B-6 TYPE A IS:3067-1972
20005516AA | 2.90 € /kpl
6
HEX BOLT M6*40 SA4GS
300028444A | 19.95 € /kpl
7
90° ADJUSTABLE STUD ELBOW 12 X G1/2-A
10053155CC | 27.90 € /kpl
8
10053068_PRIORITY VALVE CONCEPTUAL_40LPM
10053068AA | 399.00 € /kpl
9
HEX HEAD BOLT M8X65_8.8 SA4GS
20005598AA | 19.95 € /kpl
10
PLAIN WASHER DIA 8.4 *DIA 17*1.6
20004935AB | 2.90 € /kpl
11
HEX NUT M8X1.25 -8 SA4GS
20005504AA | 2.49 € /kpl
12
HEX FLANGE SCREW M6*1*20 -8.8 SA4GS
20005541AA | 2.49 € /kpl
13
HEX NUT M6 -8 SA4GS
20005491AA | 2.49 € /kpl
14
BONDED SEAL FOR 1/2 ” BSP
10012579AB | 19.95 € /kpl
15
ADOPTER_1/2″_BSP
10017560AB
16
BANJO BOLT M18X1.5 IS-3174-1974
20003896AA
17
BONDED SEAL FOR M18
10012573AA | 19.95 € /kpl
18
PRIMARY PIPE FROM PV EF PORT TO 1DA-DCV
300379883D
19
FLEXIBLE PIPE FROM P.V. TO STG. UNIT (P)
300493633A
20
PIPE FROM PV LS TO STG UNIT E
300306247A
21
CLAMP ASSY.
300079489A | 19.95 € /kpl
22
SPECIAL VIBRATION DAMPER FOR PIPE OD 12
300041675A | 19.95 € /kpl
23
SPACER 5MM.
300163401A | 19.95 € /kpl
24
HEX SCREW M10X1.25X40 8-8 SA4GS
20004367AB | 2.49 € /kpl
25
SPRING WASHER B-10 TYPE A IS:3067-1972
20005518AA | 2.90 € /kpl
26
90° ADJUSTABLE STUD ELBOW 10 X G1/4-A
10053156CC | 19.95 € /kpl
27
ADOPTADOPTER M18X1.5/ & G-1/2 A
10039266AD | 19.95 € /kpl
28
PRI. PIPE FROM PV EF PORT TO DCV P PORT
300531496A
