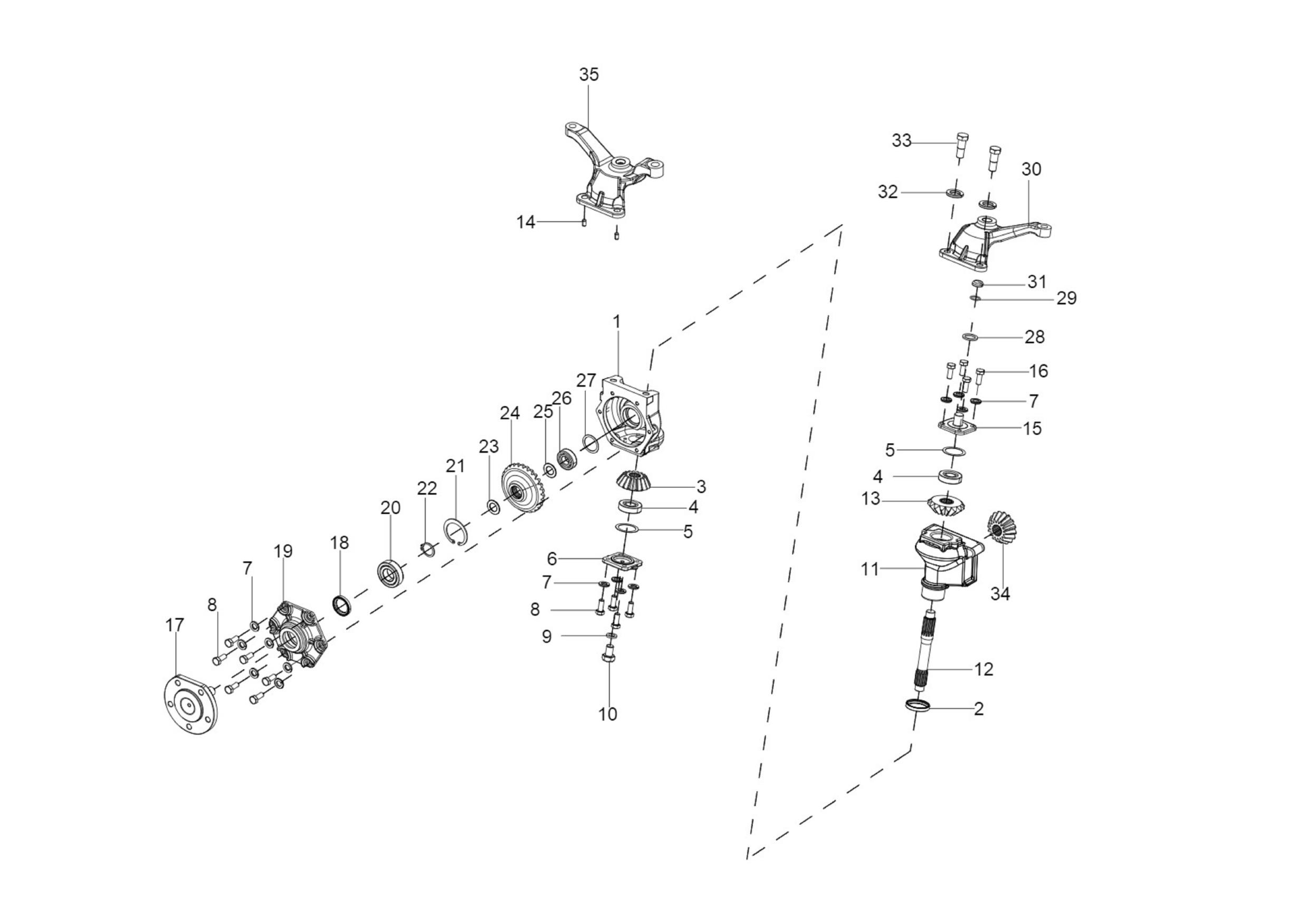

FA-10_STUB AXLE ASSY (PADDY)

WPS-DF0DD
1

ASSY FRONT AXLE HSG

10055248BB
2

SEAL TREA00450N7MMR GT FA PADDY

10055080AA | 27.90  /kpl
3

BEVEL GEAR Z-16 (LOWER)

300000300B | 89.00  /kpl
4

TAPPER ROLLER BEARING 30304

20004333AA | 27.90  /kpl
5

SHIM(GEAR Z-16)-0.20

10051312AA | 19.95  /kpl
5

SHIM(GEAR Z-16)-0.30

10051313AA | 19.95  /kpl
5

SHIM(GEAR Z-16)-0.50

10051314AA | 19.95  /kpl
6

BEARING COVER

10051018AB
7

SPRING WASHER B-8 TYPE A IS:3067-1972

20005517AA | 2.90  /kpl
8

HEX HEAD SCREW M8X1.25X20 -8.8 SA4GS

20005565AA | 2.49  /kpl
8

HEX. HEAD SCREW M8X1.25X20 8.8 SA4GS

200000430A | 2.49  /kpl
9

SEALING WASHER 8X12

10051938AA | 2.90  /kpl
10

HEX SCREW M8X1.25X12 8.8 SA3NS

20004356AA | 2.49  /kpl
11

STUB AXLE HOUSING PADDY SPL

10055225BC
12

STUB AXLE SHAFT

10051027BA | 44.90  /kpl
12

BEVEL GEAR Z-16 (UPPER)

300000302B | 89.00  /kpl
14

DOWEL (8X15)

10052662AA | 19.95  /kpl
15

STEERING ARM GUIDE

10051015BA | 19.95  /kpl
16

HEX HEAD SCREW M8X1.25-25 -8.8 SA4GS

20005564AA | 2.49  /kpl
17

FRONT AXLE (PADDY)

300171735B
18

MECHANICAL FACE SEAL FOR FRONT AXLE

300171749A
19

FRONT AXLE COVER (PADDY)

300171733B
20

BEARING 6206 NTN

20003468AA | 19.95  /kpl
21
22

CIRCLIP A-30 HEAVY DUTY (FOR LAY SHAFT)

20003856AA | 19.95  /kpl
23

SPACER FOR BEVEL GEAR Z-27

300102863A | 19.95  /kpl
23

SPACER 3.3 MM

300201263A
23

SPACER 3.4 MM

300201265A
24

BEVEL GEAR Z-27

300000297B | 109.00  /kpl
25

SPACER PILOT BEARING

300102852A | 19.95  /kpl
26

BALL BEARING 6204

20002910AA | 19.95  /kpl
27

SHIM BP SHAFT 0.1

10096382AA | 19.95  /kpl
27

SHIM BP SHAFT 0.2

10096383AA | 19.95  /kpl
27

SHIM BP SHAFT 0.5

10096384AA | 19.95  /kpl
28

WASHER 2.8 MM (STEERING ARM GUIDE)

300179791A | 2.90  /kpl
28

WASHER 3.0 MM (STEERING ARM GUIDE)

300179792A | 2.90  /kpl
28

WASHER 3.2 MM (STEERING ARM GUIDE)

300179793A | 2.90  /kpl
29

O-RING (FOR DIFF LOCK)

20002960AC | 19.95  /kpl
30

ASSY STEERING ARM SINGLE

300229673A | 89.00  /kpl
31

CAP STEERING ARM

10051277AA | 19.95  /kpl
32

SPRING WASHER B-14 TYPE A IS:3067-1972

20005520AA | 2.90  /kpl
33

BOLT SPECIAL FOR STEERING ARM

300104496A | 19.95  /kpl
34

BEVEL GEAR Z-15

300000301A | 89.00  /kpl
35

ASSY STEERING ARM DOUBLE

300229674A | 84.90  /kpl
