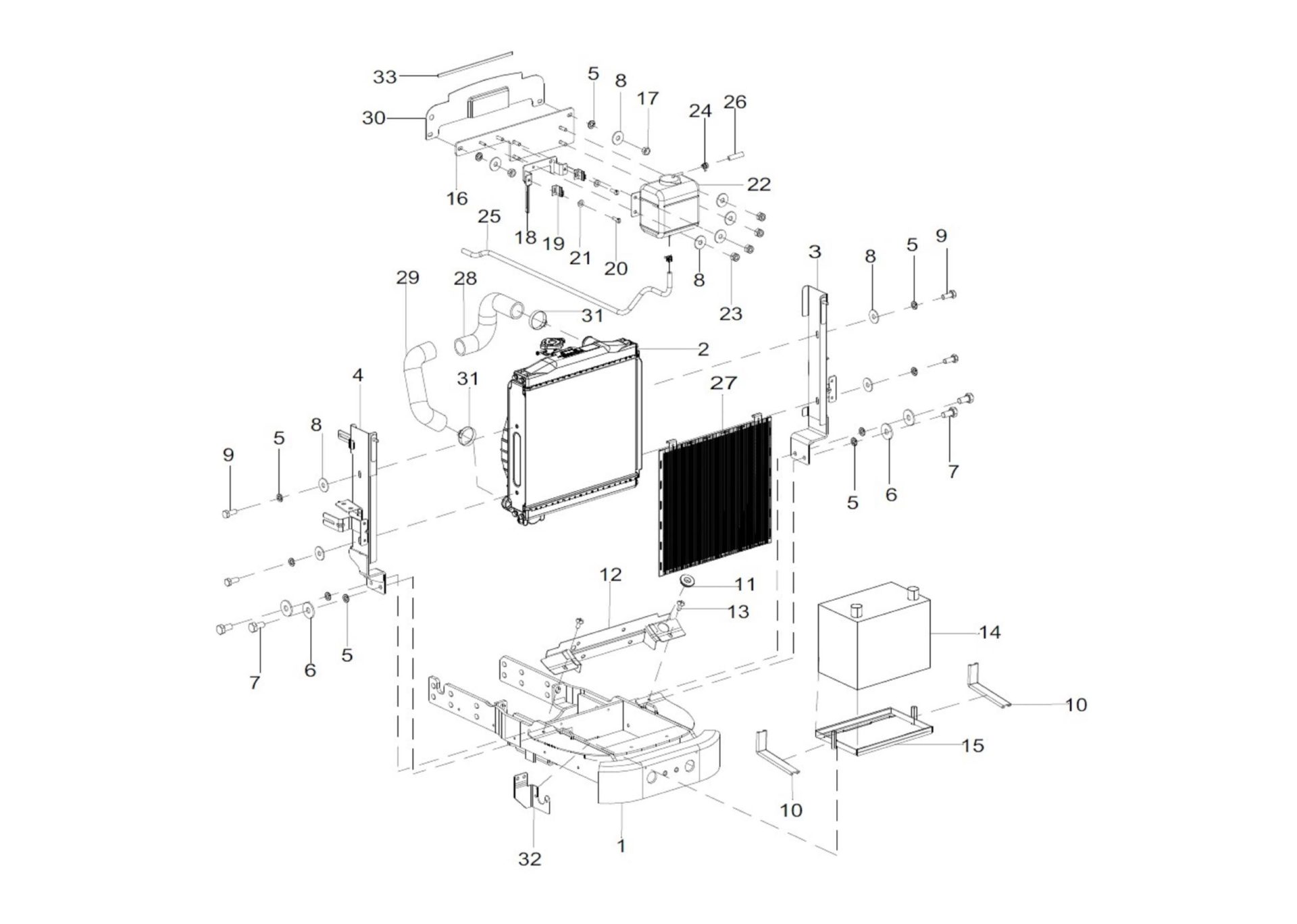

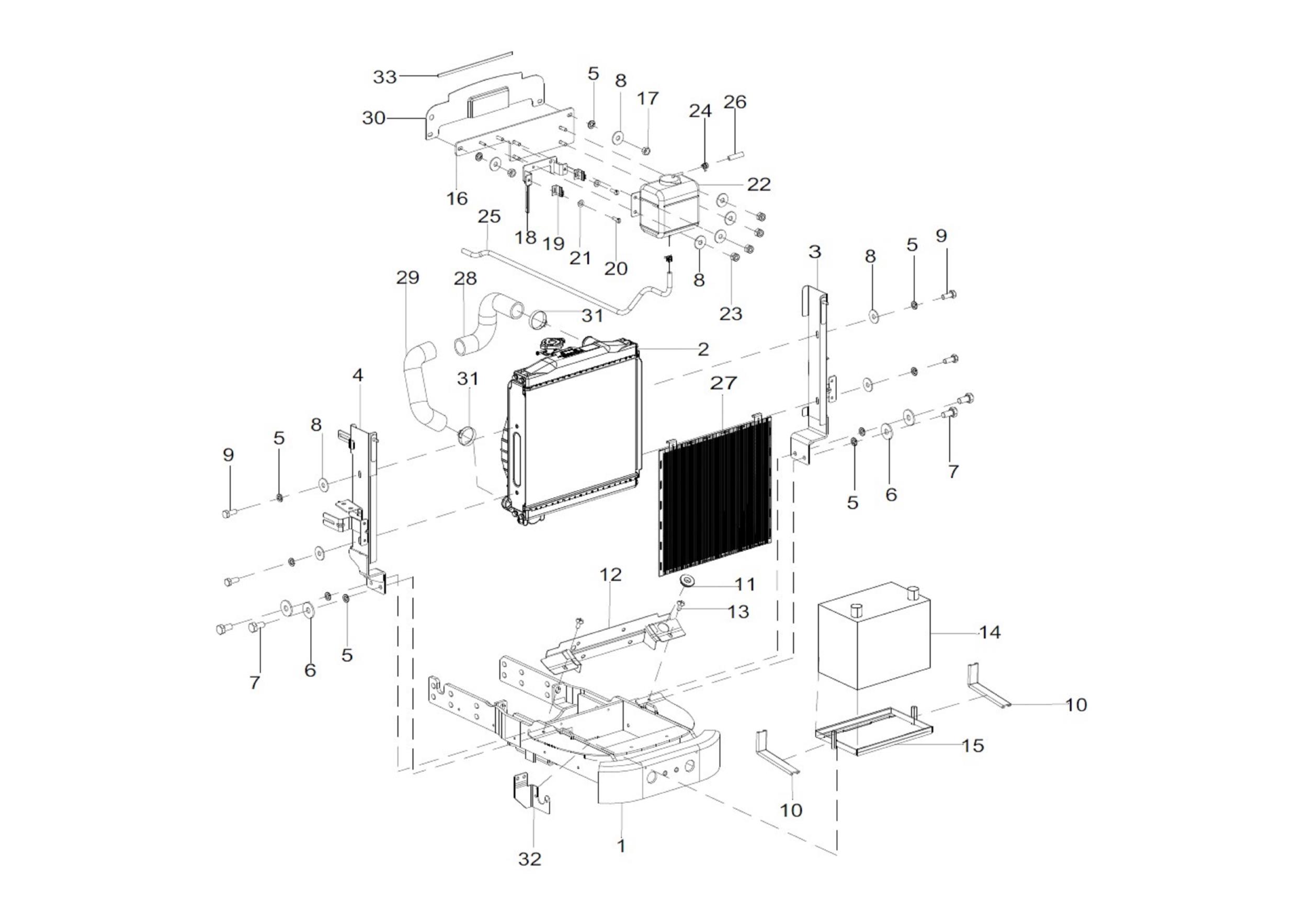

EA-3_RADIATOR ASSY
S_16_4WD_02120A-1-1_005
1
FRONT AXLE BRACKET
300054283D
2
RADIATOR ASSY
300298105A
2
RADIATOR ASSY
300298105B | 229.00 € /kpl
2
RADIATOR ASSEMBLY
300298105C
3
RADIATOR MTG BRKT LH
300204858A
4
RADIATOR MTG BRKT RH
300204985A
5
SPRING WASHER B-8 TYPE A IS:3067-1972
20005517AA | 2.90 € /kpl
6
PLAIN WASHER A 10.5 IS:5370 STEEL
20005523AA | 2.90 € /kpl
7
HEX HEAD SCREW M10X20 8.8 SA4GS
20005585AA | 2.49 € /kpl
8
PLAIN WASHER DIA 8.4 *DIA 17*1.6
20004935AB | 2.90 € /kpl
9
HEX. HEAD SCREW M8X1.25X20 8.8 SA4GS
200000430A | 2.49 € /kpl
10
RUBBER FLAP
10014841AA | 19.95 € /kpl
10
RUBBER FLAP
10051241AA
11
GROOMET FOR DISCHARGE HOSE
10018117AA | 19.95 € /kpl
12
RADIATOR BOTTOM SEALING PLATE ASSY
300204331B
13
CROSS SLOTTED TRUSS HEAD SCREW M6
20003931AA | 2.49 € /kpl
13
CROSS SLOTTED TRUSS HEAD SCREW M6
20003931AB | 2.49 € /kpl
14
MAINTENANCE FREE BATTERY 12V, 65AH & 540
10055128AA | 599.00 € /kpl
14
BATTERY
10051303AA
15
BATTERY CLAMP ASSY
300067367A | 19.95 € /kpl
16
FRONT MTG PLATE RADIATOR
300299888A
17
HEX NUT M8X1.25 -8 SA4GS
20005504AA | 2.49 € /kpl
18
FUSE BOX MTG BRACKET SOLIS 20
300163472A | 19.95 € /kpl
19
FUSE BOX MTG BRACKET
300040752B | 19.95 € /kpl
20
SLOTTED CHEASE HEAD SCREW M5*15
20005534AA | 2.49 € /kpl
21
WASHER A 6.4 IS:5370 STEEL (FOR EPA)
20005765AA | 2.90 € /kpl
22
COOLANT ASSY
10023524AB | 19.95 € /kpl
22
COOLANT ASSY
10023524AC | 19.95 € /kpl
23
HEX NYLOC NUT M8*1.25 8
20004917AB | 2.49 € /kpl
24
CLAMP DIA 12.5 MM
10023569AA
25
PIPE (COOLANT TANK TO OUTSIDE)
10067811AA
25
PIPE (COOLANT TANK TO OUTSIDE)
10067811AB | 19.95 € /kpl
26
PIPE FOR COOLANT TANK
10051599AA
26
PIPE FOR COOLANT TANK
10051599AB | 19.95 € /kpl
27
FRONT THRESH GUARD SOLIS 26 FACELIFT ( W
300104763B | 27.90 € /kpl
28
HOSE-RAIDATOR TO THERMOSTAT
300155103A | 19.95 € /kpl
29
RADIATOR HOSE(RADIATOR TO WATER PUMP)
10052534AB | 27.90 € /kpl
30
TOP SEALING PLATE
300033663A | 19.95 € /kpl
31
HOSE WORM CLAMP DIA 52
20004049AB | 19.95 € /kpl
32
MTG BRK FOR BATTERY CUT OFF SWITCH
300076157A | 19.95 € /kpl
33
RADIATOR SEALING BEADING GT-20
300008597B | 19.95 € /kpl
33
BEADING RADIATOR SIDE SEALING UPPER
10086022AC | 19.95 € /kpl
