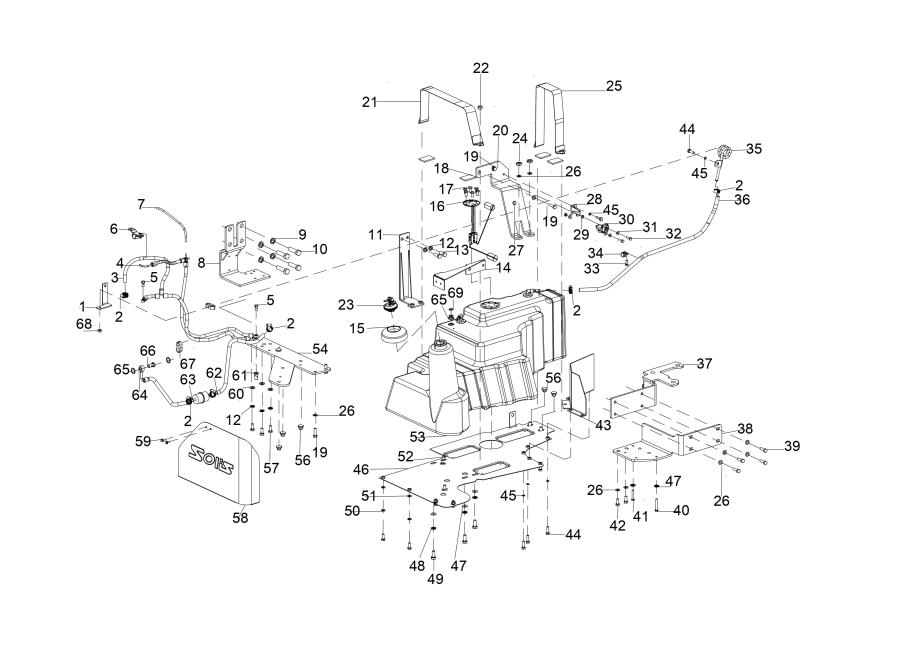

EA-12_FUEL TANK ASSY
S50- STAGE V-17110A-1-1
1
FUEL LINE MTG BKT
300057830A | 19.95 € /kpl
2
HOSE WORM CLAMP 5/8
20004819AB | 19.95 € /kpl
3
FUEL LINE FROM FIP TO FUEL TANK
300147502A | 44.90 € /kpl
4
FUEL LINE ASSY COLD START TO FUEL TANK
300147535B | 44.90 € /kpl
5
BENJO BOLT M10*1*19
20005051AB | 19.95 € /kpl
6
CLAMP ASSY
10038728AA
7
PIPE T- COUPLER TO ENGINE CONNECTOR
300181466A | 19.95 € /kpl
8
FRONT MTG OF FUEL TANK STAGE V
300145187A | 44.90 € /kpl
9
SPRING WASHER B-16 TYPE-A IS:3063-1972
20004994AB | 2.90 € /kpl
10
HEX BOLT M16X2X50 10.9 SA3NS
20004815AA | 19.95 € /kpl
11
REAR MOUNTING BRACKET ASSY
300179272B | 19.95 € /kpl
12
SPRING WASHER B-12TYPE-A IS:3063-1972
20004993AB | 2.90 € /kpl
13
HEX SCREW M12*1.75*30
20003243AB | 2.49 € /kpl
14
SAFETY PLATE MTG BRACKET ASSEMBLY
300277102B | 19.95 € /kpl
15
FUEL TANK COVER
300300944A | 19.95 € /kpl
16
TANK UNIT
10084941AB | 19.95 € /kpl
17
CROSS RECESSED CHEESE HEAD SCREW M5X10
10085711AA | 2.49 € /kpl
18
FELT PAD
10004588AA | 19.95 € /kpl
19
HEX SCREW M10*35
20003238AB | 2.49 € /kpl
20
FUEL TANK OUTER MTG BKT
300148241A | 44.90 € /kpl
21
FRONT MOUNTING STRAP FOR FUEL TANK
300179073B | 19.95 € /kpl
22
HEX NUT M8X1.25 -8 SA4GS
20005504AA | 2.49 € /kpl
23
FUEL TANK CAP WITH KEY
300306778A | 29.90 € /kpl
24
HEX NUT M10 -8 SA4GS
20003357AF | 2.49 € /kpl
25
REAR STRAP ASSY FUEL TANK
300146705B | 19.95 € /kpl
26
M/CD WASHER 10.5*21*2
20005625AA | 2.90 € /kpl
27
RUBBER BUTTON (BIG) FOR FUEL TNK MTG PLT
10004600AB | 19.95 € /kpl
28
BLOCK HEATER SOCKET BRACKET
300181032B | 19.95 € /kpl
29
NUT H M5 8 SA2JS
20003353AA | 2.49 € /kpl
30
3 PIN SOCKET ASSY
300040809A | 19.95 € /kpl
31
FLAT WASHER N5-10 SA4JS
20001668AC | 2.90 € /kpl
32
HEX SCREW M5X16-Z
4040105016 | 2.49 € /kpl
33
PIPE CLAMP FOR DIA 16
10094099AA | 19.95 € /kpl
34
HEX SCREW M6X25
20005570AA | 2.49 € /kpl
35
BREATHER PIPE ASSY
300172224A | 19.95 € /kpl
36
_10068769AA BREATHER HOSE
10068769AA | 19.95 € /kpl
37
REAR MTG ASSY FUEL TANK
300147168A | 89.00 € /kpl
38
REAR MTG ASSY FOR FUEL TANK
300146989B | 99.00 € /kpl
39
HEX HEAD SCREW M10X1.5X30 -8.8 SA4GS
20005562AA | 2.49 € /kpl
40
HEX HEAD BOLT M8X1.25X55
20004136AA
41
HEX BOLT M8X1.25-45 -8.8 SA4GS
20005548AA | 19.95 € /kpl
42
HEX HEAD SCREW M10X1.5X25 SA4GS
20005553AA | 2.49 € /kpl
43
BRACKET SAFETY PLATE
300184691B | 19.95 € /kpl
44
HEX SCREW M6X1X20
20005569AA | 2.49 € /kpl
45
PUNCH WASHER A 6.6 IS:2016 STEEL
20004984AA | 2.90 € /kpl
46
SAFETY PLATE ASSEMBLY
300185466C | 129.00 € /kpl
47
SPRING WASHER B-8 TYPE-A IS:3063-1972
20003670AC | 2.90 € /kpl
48
PLAIN WASHER DIA 8.4 *DIA 17*1.6
20004935AB | 2.90 € /kpl
49
HEX SCREW M6X16
20003281AA | 2.49 € /kpl
50
SPRING WASHER B-6 TYPE A IS:3067-1972
20005516AA | 2.90 € /kpl
51
M/C WASHER DIA 6.4*DIA 12.4*1.6
20004941AB | 2.90 € /kpl
52
HEX HEAD SCREW M8X1.25X20 -8.8 SA4GS
20005565AA | 2.49 € /kpl
53
FUEL TANK ASSEMBLY 3 CYD
300188740B | 599.00 € /kpl
54
BOTTOM PLATE ASSY
10085471AB | 89.00 € /kpl
56
RUBBER BUTTON
300168019B | 19.95 € /kpl
57
HEX HEAD SCREW M10X1.25X25 -8.8 SA4GS
20005558AA | 2.49 € /kpl
58
SAFETY PLATE FRONT
300277051C | 89.00 € /kpl
59
HEX FLANGE SCREW M6*1*16 -8.8 SA4GS
20005542AA | 2.49 € /kpl
60
M/C WASHER DIA 13*DIA 24*2.5
20004940AB | 2.90 € /kpl
61
SPL BENJO BOLT M14*1.5*M10*1*26
4080700014
62
HOSE FROM FUEL TANK TO STRAINER
300181361A | 19.95 € /kpl
63
FUEL FILTER 30N6200400 (STRAINER)
10051627AA
64
STRAINER TO FUEL FILTER
300147507A | 19.95 € /kpl
65
SEALING WASHER 14X18 IS:2175 CU
20003640AB | 2.90 € /kpl
66
BENJO BOLT M14*1.5*26 SA4GS
20005003AB | 19.95 € /kpl
67
STAUFF CLAMP – D16/13.5
20002779AB | 19.95 € /kpl
68
HEX NUT M6 -8 SA4GS
20005491AA | 2.49 € /kpl
69
SEALING WASHER 10X13.5
20003638AB | 2.90 € /kpl
