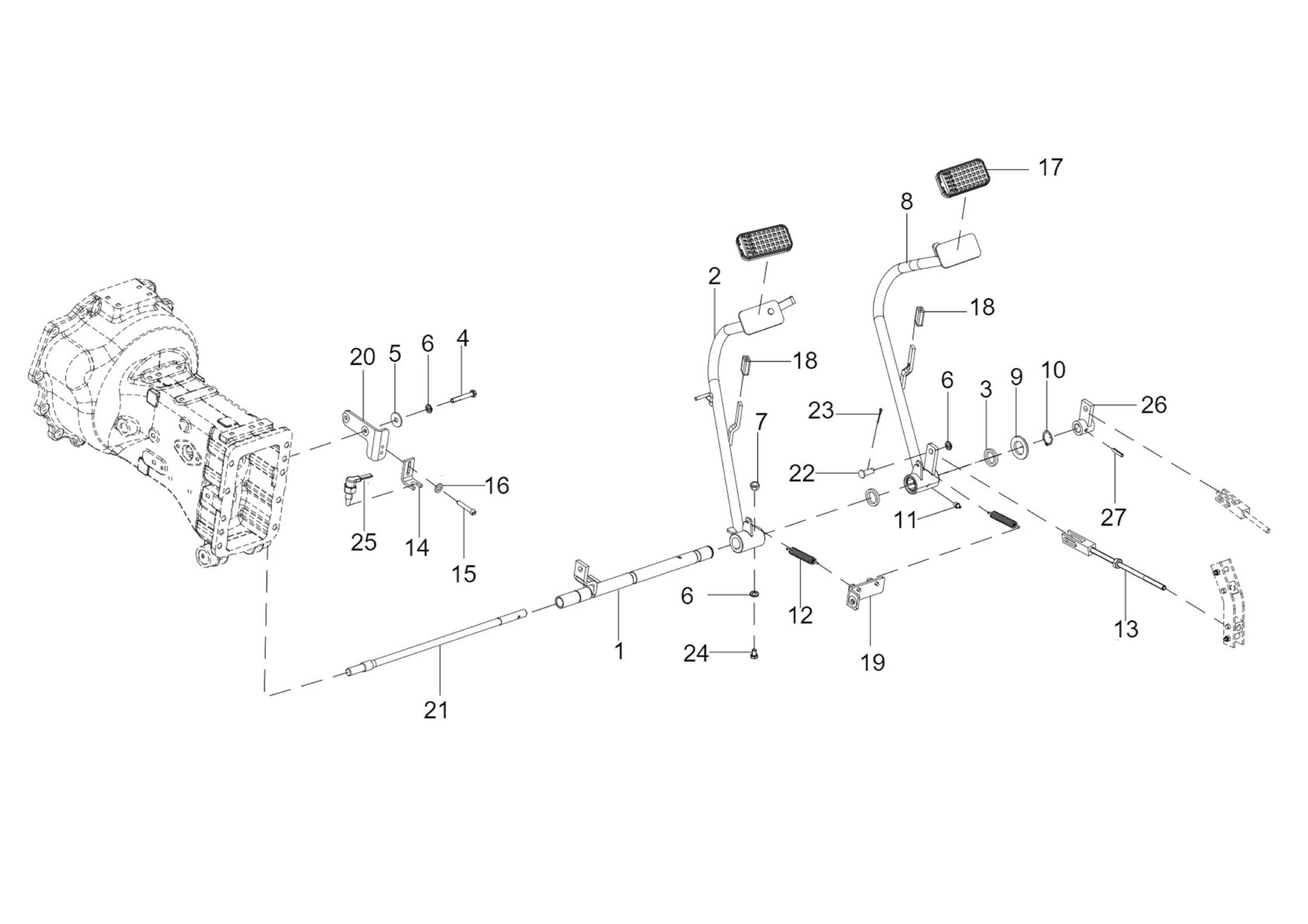

BC-1_BRAKE PEDAL ASSY
S26- (6+2) REGULAR-18110A-1-1
1
BRAKE PEDAL SHAFT 24HP
10052621AB | 29.90 € /kpl
2
BRAKE PEDAL ASSY.(L&R)
10053427AE | 99.00 € /kpl
3
FELT RING
10051143AA | 19.95 € /kpl
4
HEX HEAD BOLT M8X1.25X55
20004136AA
5
PLAIN WASHER DIA 8.4 *DIA 17*1.6
20004935AB | 2.90 € /kpl
6
SPRING WASHER B-8 TYPE A IS:3067-1972
20005517AA | 2.90 € /kpl
6
SPRING WASHER B-8
4030400008 | 2.90 € /kpl
7
HEX NUT M8X1.25 -8 SA4GS
4040800008 | 2.49 € /kpl
7
HEX NUT M8X1.25 -8 SA4GS
20005504AA | 2.49 € /kpl
9
3/CD WASHER DIA 26 *DIA 44*4
20004133AB | 2.90 € /kpl
10
EXTERNAL CIRCLIP A – 25
20004134AA | 19.95 € /kpl
11
CONICAL HEAD GRESE NIPPLE B M8X1 IS:4009
20003460AC | 19.95 € /kpl
12
TENSION SPRING
10007881BA
12
TENSION SPRING
10007881BB | 19.95 € /kpl
13
ADJUSTABLE TIE ROD FOR BRAKE PEDAL 24HP
10052725AD
13
BRAKE TIE ROD ASSY
10056880AA
13
BRAKE TIE ROD ASSY
10056880AB | 19.95 € /kpl
13
BRAKE TIE ROD ASSY
10056880AC | 19.95 € /kpl
14
BKT FOR CLUTCH SAFETY SWITCH
300189368C | 19.95 € /kpl
15
SLOTTED CHEESE HEAD SCREW M5X30 SA4GS
10083043AB | 2.49 € /kpl
15
SLOTTED CHEASE HEAD SCREW M5*30
200000385A | 2.49 € /kpl
16
SPRING WASHER B-5 TYPE A IS:3067-1972
20005515AA | 2.90 € /kpl
17
PADEL RUBBER PAD
10053401AC
17
PADEL RUBBER PAD
10053401AD | 19.95 € /kpl
18
RUBBER SLEEVE
10005009AB
18
RUBBER SLEEVE
10005009AC | 19.95 € /kpl
19
BRAKES SPRING MTG BRACKET
10053335AA | 19.95 € /kpl
20
BRAKE SWITCH MOUNTING BRACKET
10053450AB | 19.95 € /kpl
21
PARKING BRAKE SHAFT ASSY
300030461A | 27.90 € /kpl
22
PIN FOR BRAKE ACTUATOR FORK
300031334A | 19.95 € /kpl
22
PIN FOR BRAKE ACTUATOR FORK
10003800AB
23
SPLIT PIN DIA 1.6*20
4010116020
23
SPLIT PIN DIA 1.6*20
20005527AA | 19.95 € /kpl
24
HEX SCREW M8X1.25X12 8.8 SA3NS
20004356AA | 2.49 € /kpl
25
PLUNGER SWITCH NO
300157154B | 44.90 € /kpl
26
LEVER LUG ASSY
300176648A
26
LUG ASSY
300030091A | 19.95 € /kpl
27
SPRING COTTER SLEEVE(DIA 6X28)
20004150AA | 19.95 € /kpl
