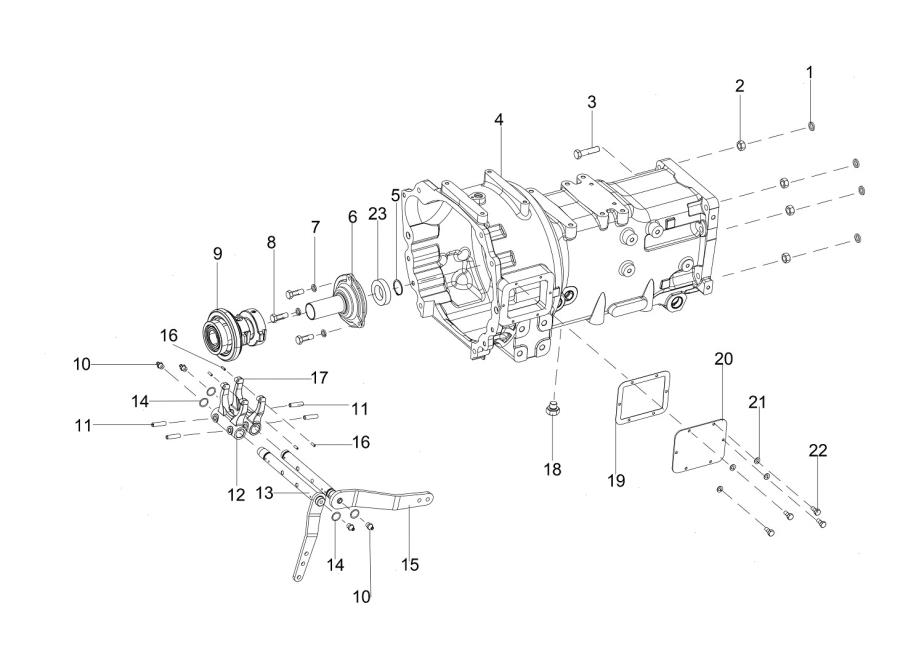

TM-1_CLUTCH HOUSING ASSY
S50- STAGE V-05110A-1-1
1
NORD LOCK WASHER B14
20004070AA | 2.90 € /kpl
2
HEX NUT M14*2
20003361AA | 2.49 € /kpl
2
HEX NUT M14X2 -10 SA3NS
300517982A | 2.49 € /kpl
3
HEX. BOLT M14*2*60
300517971A
3
HEX. BOLT M14*2*60
20003233AC | 19.95 € /kpl
4
CLUTCH HOUSING ASSY
300123433B | 1,399.00 € /kpl
5
EXTERNAL CIRCLIP A-40
4020200040 | 19.95 € /kpl
6
C.A. GUIDE
10066151AA | 89.00 € /kpl
7
SPRING WASHER B-8 TYPE A IS:3067-1972
20005517AA | 2.90 € /kpl
8
HEX. HEAD SCREW M8 X 1.25-25 8-8 SA4JS
20001089AB | 2.49 € /kpl
9
ANGULAR CONTACT CLUTCH RELEASE BEARING ASSY
300036335A | 199.00 € /kpl
10
CONICAL HEAD GRESE NIPPLE B M8X1 IS:4009
20003460AC | 19.95 € /kpl
11
COTTER SLEEVE Ø10*40 DIN 1481
20004291AA | 19.95 € /kpl
12
C.A. FORK PTO
10065132AF | 89.00 € /kpl
13
C.A.SHAFT(PTO) SOLIS 60
300188555B | 19.95 € /kpl
14
O-RING
10003960AC | 19.95 € /kpl
15
C.A. SHAFT ASSY, TRANSMISSION
10080189AD | 44.90 € /kpl
16
SPRING COTTER SLEEVE DIA 5 *15
4010305015 | 19.95 € /kpl
17
C.A FORK TRANSMISSION
10065133AF | 89.00 € /kpl
18
PLUG FOR CLUTCH HSG.
10081647AA | 19.95 € /kpl
19
GASKET (COVER PLATE)
10007903CC | 19.95 € /kpl
20
COVER PLATE (BELL HOUSING)
10007902CA | 19.95 € /kpl
21
SPRING WASHER B-6 TYPE A IS:3067-1972
20005516AA | 2.90 € /kpl
22
HEX HEAD SCREW M6X1X14 8.8 SA4GS
20005496AA | 2.49 € /kpl
23
BALL BEARING 6008 2RS
20003843AA | 19.95 € /kpl
