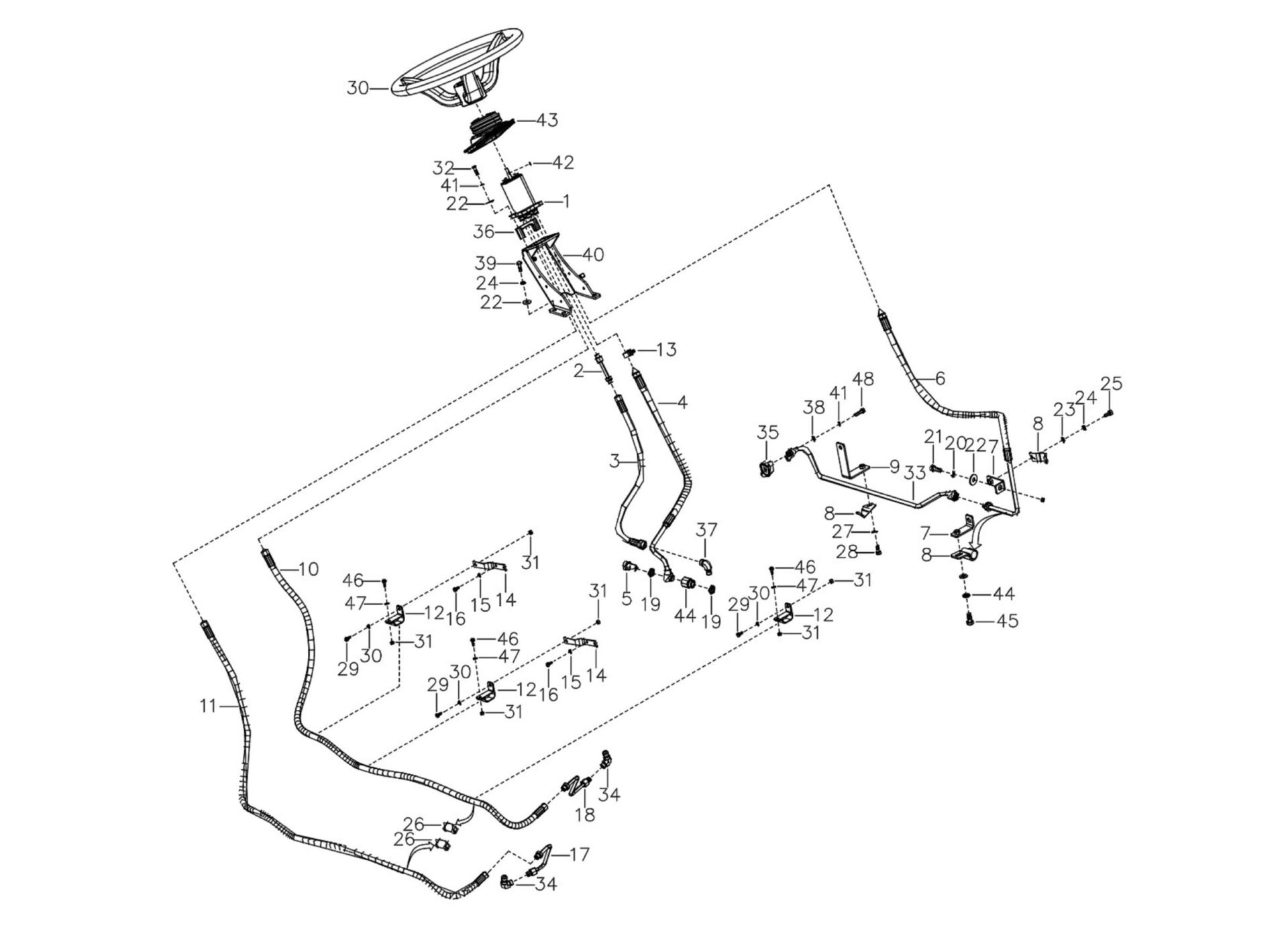

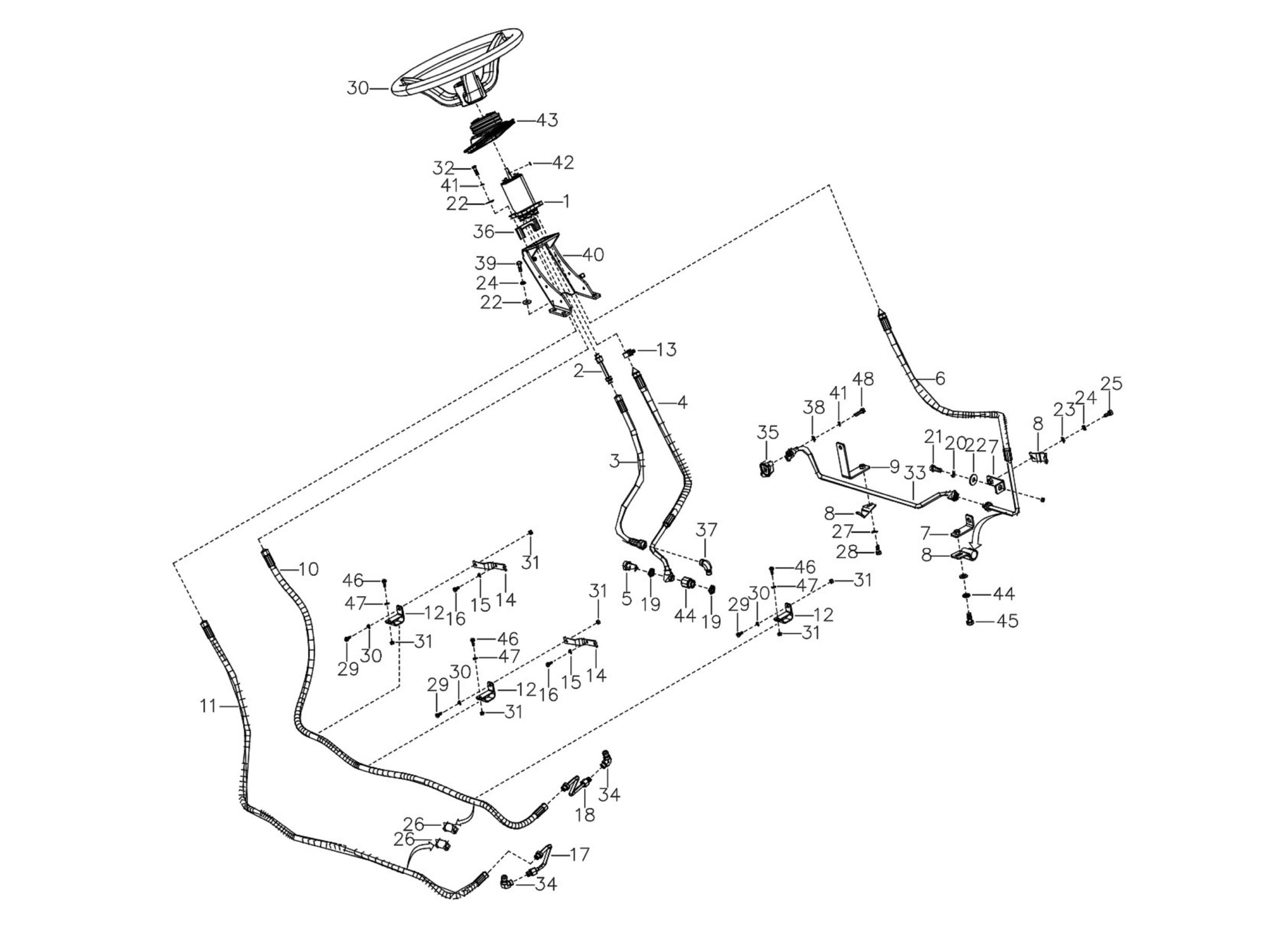

ST-1_STG UNIT ASSY
S20- WITH MHI ENGINE (6+2)-10122A-1-1
1
STEERING UNIT 40CC
10052960AE | 899.00 € /kpl
2
SEC. PIPE FROM PV TO STG. UNIT PORT E
300171952A | 19.95 € /kpl
3
FELXIBLE PIPE FROM P.V. TO PORT E
300171896B | 29.90 € /kpl
4
FLEXIBLE PIPE FROM P.V CF TO STG. UNIT P
300172046A | 44.90 € /kpl
5
BENJO BOLT M18X1.5 IS:3174-1974
20005628AA | 19.95 € /kpl
6
PRIMARY PIPE T TO TANK
300172195B | 29.90 € /kpl
7
BASE PLATE
300174915A | 19.95 € /kpl
8
CLAMP FOR PIPE OD-12
10017853AB | 19.95 € /kpl
9
BASE PLATE FOR CURVE CLAMP
300172837B | 19.95 € /kpl
10
FLEXIBLE PIPE FROM STG PORT L TO CYL L
300172503A | 89.00 € /kpl
11
FLEXIBLE PIPE FROM STG PORT R TO CYL R
300172568A | 89.00 € /kpl
12
CLAMP ASSYFOR P.S. PIPES
300155966B | 19.95 € /kpl
13
HOSE WORM CLAMP 14X20 IS:4762
20004608AB | 19.95 € /kpl
14
MTG. PLATE ASSY
300174371A | 19.95 € /kpl
15
SPRING WASHER B-6 TYPE A IS:3067-1972
20005516AA | 2.90 € /kpl
16
HEX SCREW M6*16
4040106016 | 2.49 € /kpl
17
SEC PIPE FROM UNIT L TO STG. CYL. LH
300155905A | 19.95 € /kpl
18
SEC PIPE FROM UNIT R TO STG. CYL. RH
300154846A | 19.95 € /kpl
19
BONDED SEAL FOR M18
10012573AA | 19.95 € /kpl
20
SPRING WASHER B-10 TYPE A IS:3067-1972
20005518AA | 2.90 € /kpl
21
HEX HEAD SCREW M10X1.5X30 -8.8 SA4GS
20005562AA | 2.49 € /kpl
22
PLAIN WASHER DIA 8.4 *DIA 17*1.6
20004935AB | 2.90 € /kpl
23
SPRING WASHER B-8 TYPE A IS:3067-1972
20005517AA | 2.90 € /kpl
24
HEX SCREW M8X1.25X30 -8.8 SA4GS
20005563AA | 2.49 € /kpl
25
HEX. HEAD SCREW M8X1.25X20 8.8 SA4GS
200000430A | 2.49 € /kpl
26
VIBRATION DAMPER
10029735AB | 19.95 € /kpl
27
SPRING WASHER B-14 TYPE A IS:3067-1972
20005520AA | 2.90 € /kpl
28
HEX SCREW M14*30
20003246AB | 2.49 € /kpl
29
HEX FLANGE SCREW M6*1*16 -8.8 SA4GS
20005542AA | 2.49 € /kpl
30
STEERING WHEEL
10053125AD | 89.00 € /kpl
30
STEERING WHEEL
10051393AA | 44.90 € /kpl
31
HEX NUT M6 -8 SA4GS
20005491AA | 2.49 € /kpl
32
HEX HEAD BOLT M8X1.25X60_8.8 SA4GS
20005608AA | 19.95 € /kpl
33
SEC PIPE FROM STG. UNIT TO TANK
300144643B | 44.90 € /kpl
34
ORFS JIC 90° CONNECTION
10012486BB | 19.95 € /kpl
34
ORFS JIC 90¦° CONNECTION
10012486BD | 19.95 € /kpl
35
HEX NUT M10 -8 SA4GS
20003357AF | 2.49 € /kpl
36
STEERING MTG. SPACER ASSY.
300188383A | 19.95 € /kpl
37
90° ADJUSTABLE STUD ELBOW 10 X G1/4-A
10053156CC | 19.95 € /kpl
38
SPRING WASHER B-8 TYPE-A IS:3063-1972
20003670AC | 2.90 € /kpl
39
HEX HEAD SCREW M8X1.25-25 -8.8 SA4GS
20005564AA | 2.49 € /kpl
40
STEERING UNIT MOUNTING BRACKET
10053305AE | 44.90 € /kpl
41
SPRING WASHER B-8
4030400008 | 2.90 € /kpl
42
WOODRUF KEY
10053083AA | 19.95 € /kpl
43
STEERING BELLOW
300007813B | 19.95 € /kpl
43
STEERING BELLOW
300172562B | 19.95 € /kpl
44
ADOPTER 1/2″ BSP
10017560AC
45
HEX SCREW M6X1X20
20005569AA | 2.49 € /kpl
46
HEX HEAD SCREW M10*40 SA4GS
20005484AA | 2.49 € /kpl
47
SPRING WASHER B-6 TYPE-A IS:3063-1972
20003669AC | 2.90 € /kpl
