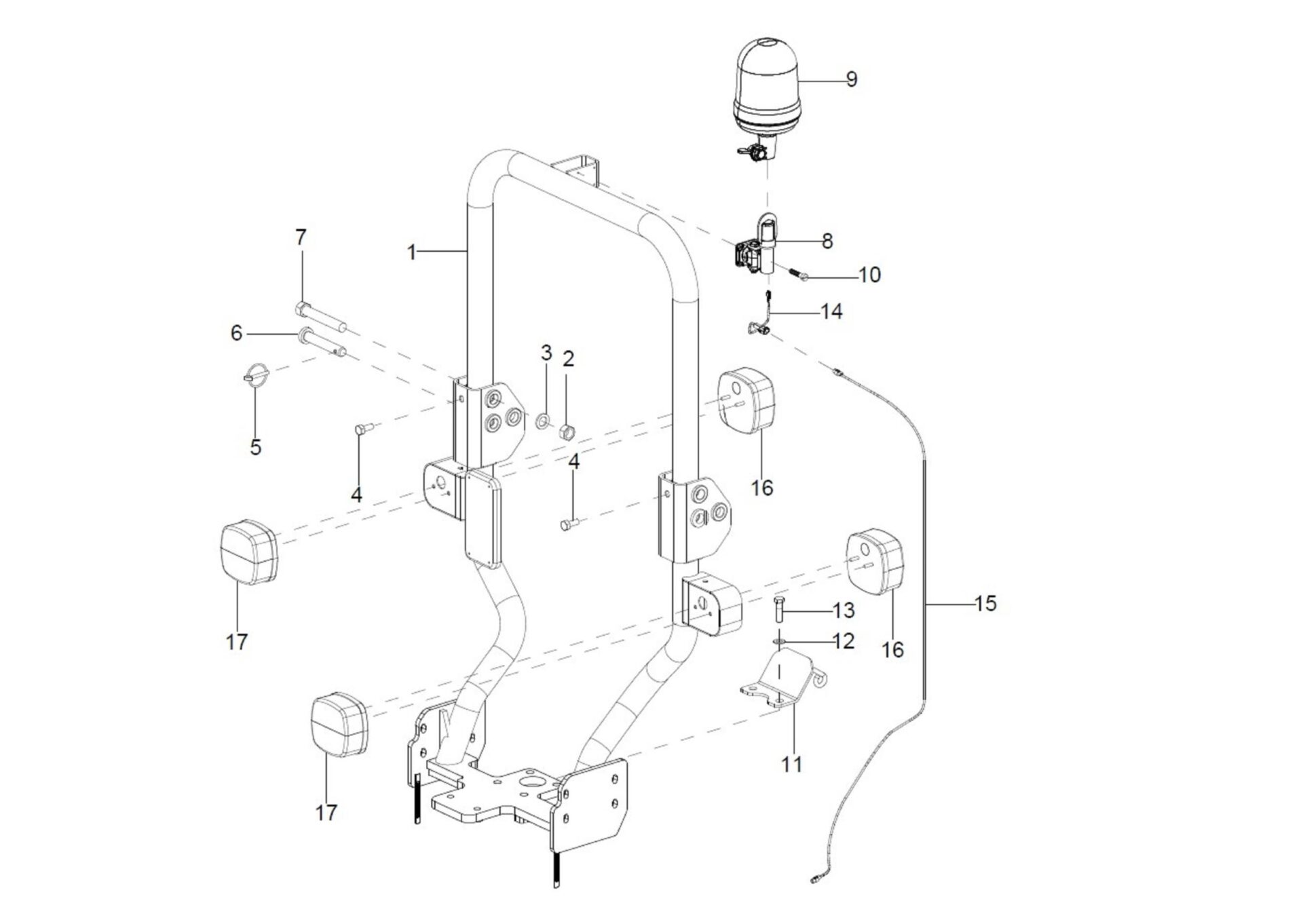

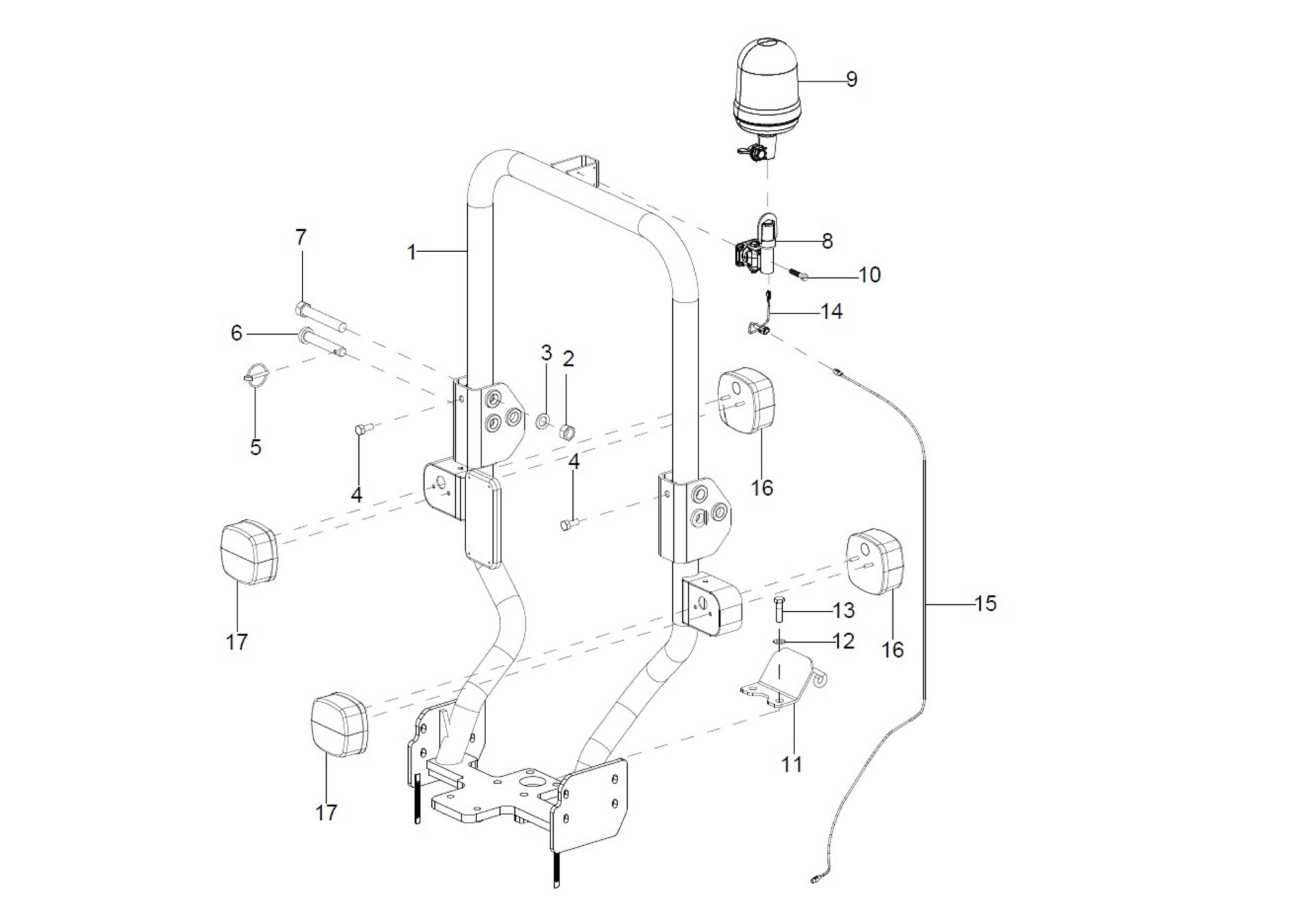

SM-9_ROPS ASSY
S16- STAGE V (MS)-12120A-1-1
1
ROLL OVER PROTECTION STRUCTURE ASSY
10051940CB | 399.00 € /kpl
2
HEX NUT M18X2.5 – SA4GS
20005506AA | 2.49 € /kpl
3
NYLON WASHER
10087869AA | 2.90 € /kpl
4
HEX BOLT M10X1.5X40 SA4GS
20005544AA | 19.95 € /kpl
5
LINCH PIN
10087916AA | 19.95 € /kpl
5
LINCH PIN ASSY.(Ø7)
10087923AA | 19.95 € /kpl
6
PIN FOR TOP LINK
10053509AC
6
PIN FOR TOP LINK
10057679AA | 19.95 € /kpl
6
PIN ROCKER
10086416AB | 19.95 € /kpl
7
HEX BOLT M18*2.5*110 -10.9 SA4GS
20005545AA | 19.95 € /kpl
8
MOUNTING BRACKET( DETACHABLE REVOLVING LIGHT)
10054277AA | 129.00 € /kpl
9
REVOLVING LIGHT (DETACHABLE)
10054276AA | 199.00 € /kpl
10
SLOTTED CHEASE HEAD SCREW M4*20
20005684AA | 2.49 € /kpl
11
TOP LINK HOLDING BKT
10056463AA | 19.95 € /kpl
12
SPRING WASHER B-14 TYPE A IS:3067-1972
20005520AA | 2.90 € /kpl
13
HEX SCREW M14*30
20003246AB | 2.49 € /kpl
14
REVOLVING LIGHT HARNESS
300009603A | 19.95 € /kpl
15
ROPS HARNESS
300009691A | 19.95 € /kpl
16
FENDER TAIL LAMP ASSEMBLY
10056758AB | 27.90 € /kpl
17
FENDER FRONT LAMP ASSEMBLY
10056759AB | 27.90 € /kpl
