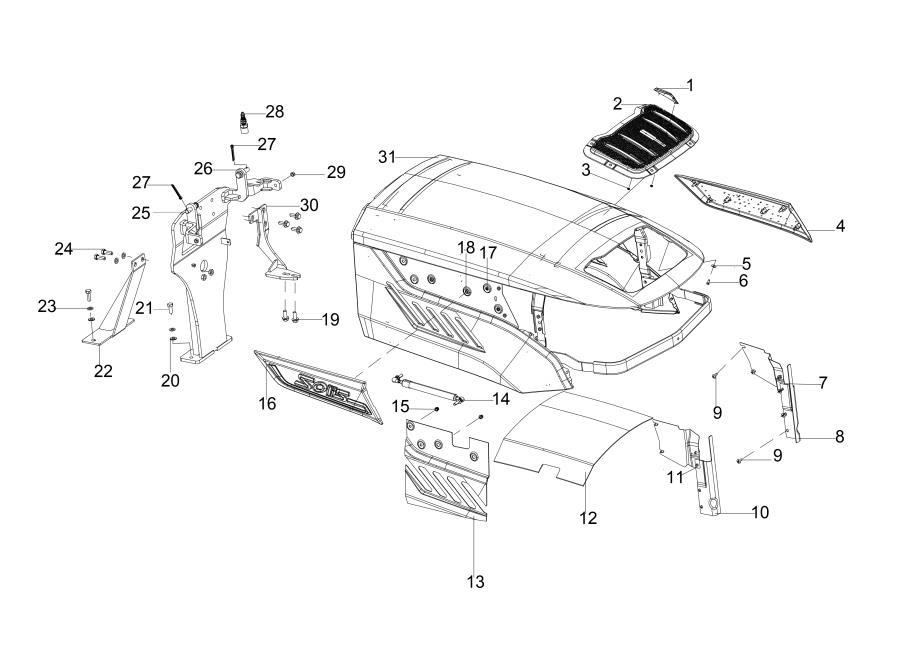

SM-3_BONNET ASSY CABIN
S50- STAGE V-15110A-1-1
1
LOGO TOP MESH
300178569C | 19.95 € /kpl
2
TOP MESH STAGE V
300178463B
3
STAR WASHER DIA 6
10029874AA | 2.90 € /kpl
4
SOLIS BRANDING LH STAGE V
300161110C
5
WASHER
300032712A | 2.90 € /kpl
6
SLOTTEED CHEESE HEAD SCREWS M5*12
20004920AB | 2.49 € /kpl
7
FRONT SIDE SHEET SEALING LH
300172574B | 19.95 € /kpl
8
SIDE SEALING LH
300190966B | 19.95 € /kpl
9
CROSS SLOTTED TRUSS HEAD SCREW M6X16
200000141A | 2.49 € /kpl
10
SIDE SEALING RH
300190967B | 19.95 € /kpl
11
FRONT SIDE SHEET SEALING RH
300172697B | 19.95 € /kpl
12
HEAT SHIELD TOP
300187136C | 89.00 € /kpl
13
HEAT SHIELD SIDE
300187137C | 44.90 € /kpl
14
GAS STRUCT 3 CYL STAVE V G1
300173878C | 44.90 € /kpl
15
WASHER A 6.4 IS:5370 STEEL (FOR EPA)
20005765AA | 2.90 € /kpl
16
SOLIS BRANDING RH STAGE V
300168055C
17
HEX NYLOC NUT M6 8
20004915AB | 2.49 € /kpl
18
RETAINING WASHER DIA 10
300003841A | 2.90 € /kpl
19
HEX FLANGE SCREW M10*1.5*25 -8.8 SA4GS
20005540AA | 2.49 € /kpl
20
M/CD WASHER 10.5*21*2
20005625AA | 2.90 € /kpl
21
HEX HEAD SCREW M10X1.25X25 -8.8 SA4GS
20005558AA | 2.49 € /kpl
22
SUPPORT PLATE REAR ASSEMBLY
300283356C | 44.90 € /kpl
23
SPRING WASHER B-10 TYPE A IS:3067-1972
20005518AA | 2.90 € /kpl
24
HEX HEAD SCREW M10X1.5X30 -8.8 SA4GS
20005562AA | 2.49 € /kpl
25
BONNET HING PIN FOR EPA
300209831A
26
BONNET HING MTG BRACKET ASEEMBLY
300178983D | 229.00 € /kpl
27
SPLIT PIN DIA 5*45
20005450AA | 19.95 € /kpl
28
PLUNGER SWITCH NC
300119996A | 44.90 € /kpl
29
HEX NUT M8X1.25 -8 SA4GS
20005504AA | 2.49 € /kpl
30
BONNET HINGE BRACKET SUPPORT
300350077B
31
BONNET ASSEMBLY BLUE PAINT
300175074D | 799.00 € /kpl
31
BONNET ASSEMBLY RED PAINT
300175075D
