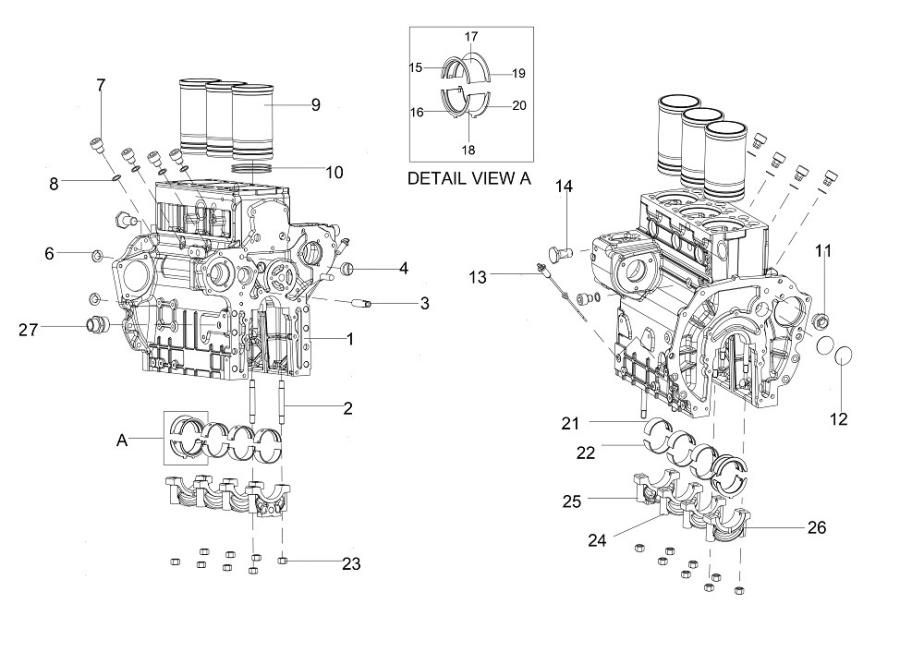

EN-1_CRANKCASE
S50- STAGE V-50110A-1-1
1
CRANK CASE 3CYL-A.COMP STAGE V
300119962A | 1,399.00 € /kpl
2
BEARING CAP STUD
703401004B | 19.95 € /kpl
3
VALVE GEAR LUBRICATION BOLT(M10)
703401018A | 19.95 € /kpl
4
PLUG WITH GROOVE (M18X1.5)
703401014A | 19.95 € /kpl
6
HELICAL SPRING LOCK WASHER 10 AC SA2JD
4031400010 | 2.90 € /kpl
7
SOCKET HEAD SCREW M10 X 1.0 -CRANK CASE
903401027A | 2.49 € /kpl
8
BONDED SEAL FOR M10
10012569AB
8
SEALING RING 10/13.5X1- CU
4030210014 | 19.95 € /kpl
9
CYLINDER LINER (Ø105)
703401098C | 89.00 € /kpl
10
CYLINDER LINER SEALING-NBR (Ø105)
703401087B | 19.95 € /kpl
11
OIL CHANNEL PLUG (M18X1.5)
703401015A | 19.95 € /kpl
12
DISC PLUG (Ø55)
703404044A | 19.95 € /kpl
13
OIL INDICATOR 3 CYL
300167448B | 19.95 € /kpl
14
SUSPENSION SCREW (OR LOCK BOLT)
703401019A | 2.49 € /kpl
15
THRUST BEARING (TOP-1) LEAD FREE
703401138A | 19.95 € /kpl
16
THRUST BEARING (BOTTOM-1) LEAD FREE
703401139A | 19.95 € /kpl
17
BEARING LINER Ø76 (REAR TOP) LEAD FREE
703401144A | 19.95 € /kpl
18
BEARING LINER Ø76(REAR-BOTTOM) LEAD FREE
703401145A | 19.95 € /kpl
19
THRUST BEARING (TOP-2) LEAD FREE
703401140A | 19.95 € /kpl
20
THRUST BEARING (BOTTOM-2) LEAD FREE
703401141A | 19.95 € /kpl
21
BEARING LINER Ø76 (TOP) LEAD FREE
703401142A | 19.95 € /kpl
22
BEARING LINER Ø76 (BOTTOM) LEAD FREE
703401143A | 19.95 € /kpl
23
NUT M14X1.5
703401005B | 2.49 € /kpl
24
CENTRE BEARING CAP
300191335A | 19.95 € /kpl
25
FRONT BEARING CAP
300191325A | 19.95 € /kpl
26
REAR BEARING CAP
300191331A | 19.95 € /kpl
27
CONNECTION (M18X1.5)
703407015A | 19.95 € /kpl
