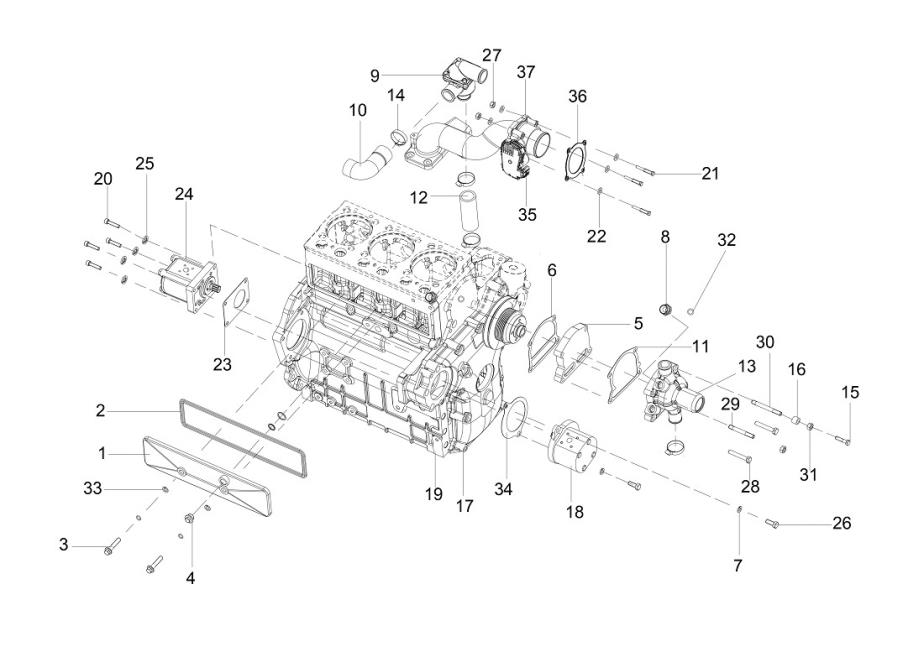

EN-14_WATER AND HYDRAULIC PUMP ASSY ROPS
S50- STAGE V-55110A-1-1
1
SIDE COVER ALUMINIUM 3CYL
803002012D | 44.90 € /kpl
3
HEX FLANGE BOLT (M10X50)SIDE COVER ALMN.
703402246C | 19.95 € /kpl
4
OIL CHANNEL PLUG (M18X1.5)
703401015A | 19.95 € /kpl
5
INTERMEDIATE PLATE_WATER PUMP
300147799B | 19.95 € /kpl
6
GASKET_NON ASB.(INTER-MEDIATE PLATE W.P)
703406151A | 19.95 € /kpl
7
SPRING WASHER B-10 TYPE A IS:3067-1972
20005518AA | 2.90 € /kpl
8
ADAPTOR_W.PUMP (M20X1.5) CRDI
903406033C | 19.95 € /kpl
9
THERMOSTAT ASSY.74 DEG. PLASTIC_CALTHERM
803413016C | 89.00 € /kpl
10
HOSE (RETURN LINE TO THERMOSTAT)
300217310A | 19.95 € /kpl
11
GASKET (WATER PUMP) NON ASB.
703406080A | 19.95 € /kpl
12
HOSE (THERMOSTAT TO WATER PUMP)
300217311A | 19.95 € /kpl
13
WATER PUMP ASSY. VISCOUS AND MECH FAN
300162231A | 199.00 € /kpl
14
HOSE WORM CLAMP 38X50 IS:4762
20003659AB | 19.95 € /kpl
15
HEX BOLT M8X1.25-45 -8.8 SA4GS
20005548AA | 19.95 € /kpl
16
SPACER 18X11X9
300177802A | 19.95 € /kpl
17
FRONT COVER (CI) OIL FILLING/CCV OPTION
703402272B | 199.00 € /kpl
18
HYD. PUMP ASSY. (12CC) P.STEERING
803402048A | 269.00 € /kpl
19
CRANK CASE 3CYL-A.COMP STAGE V
300119962A | 1,399.00 € /kpl
20
SOCKET HEAD CAP SCREW M8X35
4040308035 | 2.49 € /kpl
21
HEX BOLT M6X1X50 8.8 SA4GS
300045348A | 19.95 € /kpl
22
SPRING WASHER B-6 TYPE A IS:3067-1972
20005516AA | 2.90 € /kpl
23
GASKET (HYD. PUMP-BACK) NON ASB.
703402230A | 19.95 € /kpl
24
HYD PUMP-25CC REXROTH
300117843C | 229.00 € /kpl
25
SPRING WASHER B-8 TYPE A IS:3067-1972
20005517AA | 2.90 € /kpl
26
HEX HEAD SCREW M10X1.5X25 SA4GS
20005553AA | 2.49 € /kpl
27
HEX NUT M6 -8 SA4GS
20005491AA | 2.49 € /kpl
28
HEX HEAD BOLT M10X60_8.8 SA4GS
20005599AA | 19.95 € /kpl
29
STUD M10X65
4140410065 | 19.95 € /kpl
30
STUD-C M10X30
4041410030 | 19.95 € /kpl
31
HEX NUT M10 -8 SA4GS
20003357AF | 2.49 € /kpl
32
SEALING RING 20/26X1.5-CU
4030220026 | 19.95 € /kpl
33
O RING (SIDE COVER) NEW MATERIAL
703407144A | 19.95 € /kpl
34
GASKET (HYD. PUMP-FRONT) NON ASB.
703402229B | 19.95 € /kpl
35
THROTTLE VALVE ACTUATOR
300092475A | 229.00 € /kpl
36
GASKET INTAKE DUCT
300092490B | 19.95 € /kpl
37
INLET PIPE 3 CYLINDER
300086113D
